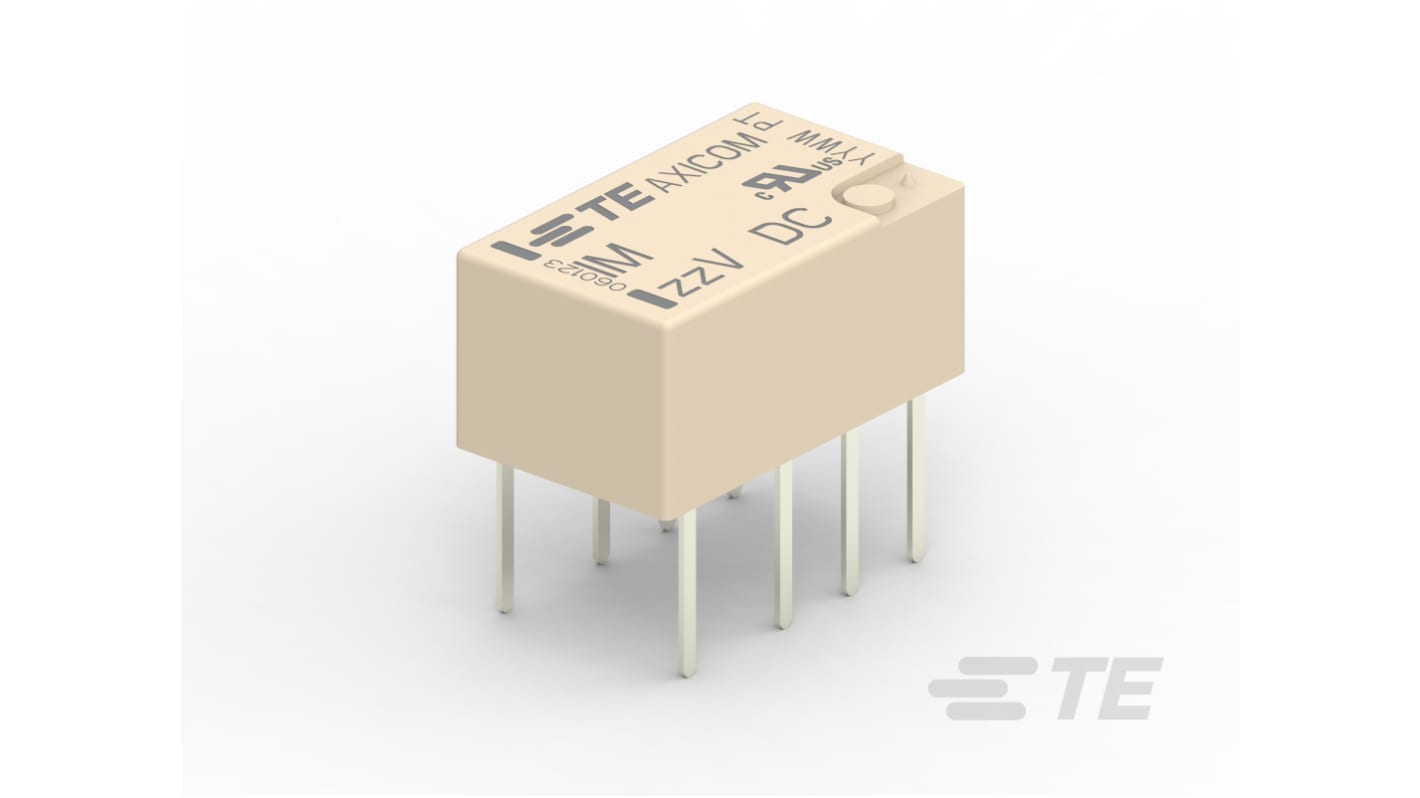

TE Connectivity Surface Mount Signal Relay, 12V dc Coil, 0.4A Switching Current, DPDT
- RS Stock No.:
- 267-4936
- Mfr. Part No.:
- 3-1462039-8
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 bag of 2 units)*
£6.98
(exc. VAT)
£8.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,612 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
2 - 8 | £3.49 | £6.98 |
10 - 98 | £3.27 | £6.54 |
100 - 248 | £2.99 | £5.98 |
250 - 498 | £2.62 | £5.24 |
500 + | £2.38 | £4.76 |
*price indicative
- RS Stock No.:
- 267-4936
- Mfr. Part No.:
- 3-1462039-8
- Brand:
- TE Connectivity
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Coil Voltage | 12V dc | |
Contact Configuration | DPDT | |
Mounting Type | Surface Mount | |
Number of Coils | Single | |
Maximum Switching Current AC | 1 mA | |
Series | Axicom IM | |
Latching | No | |
Length | 10mm | |
Height | 5.65mm | |
Dimensions | 10 x 6 x 5.65mm | |
Switching Current | 0.4A | |
Number of Poles | 2 | |
Coil Resistance | 1.029 kΩ | |
Relay Switching Classification | PCB Power Relay | |
Coil Power | 140mW | |
Minimum Operating Temperature | -40°C | |
Maximum Operating Temperature | +85°C | |
Contact Material | Gold Plated | |
Operating Temperature Range | -30 → +85°C | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V dc | ||
Contact Configuration DPDT | ||
Mounting Type Surface Mount | ||
Number of Coils Single | ||
Maximum Switching Current AC 1 mA | ||
Series Axicom IM | ||
Latching No | ||
Length 10mm | ||
Height 5.65mm | ||
Dimensions 10 x 6 x 5.65mm | ||
Switching Current 0.4A | ||
Number of Poles 2 | ||
Coil Resistance 1.029 kΩ | ||
Relay Switching Classification PCB Power Relay | ||
Coil Power 140mW | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +85°C | ||
Contact Material Gold Plated | ||
Operating Temperature Range -30 → +85°C | ||
