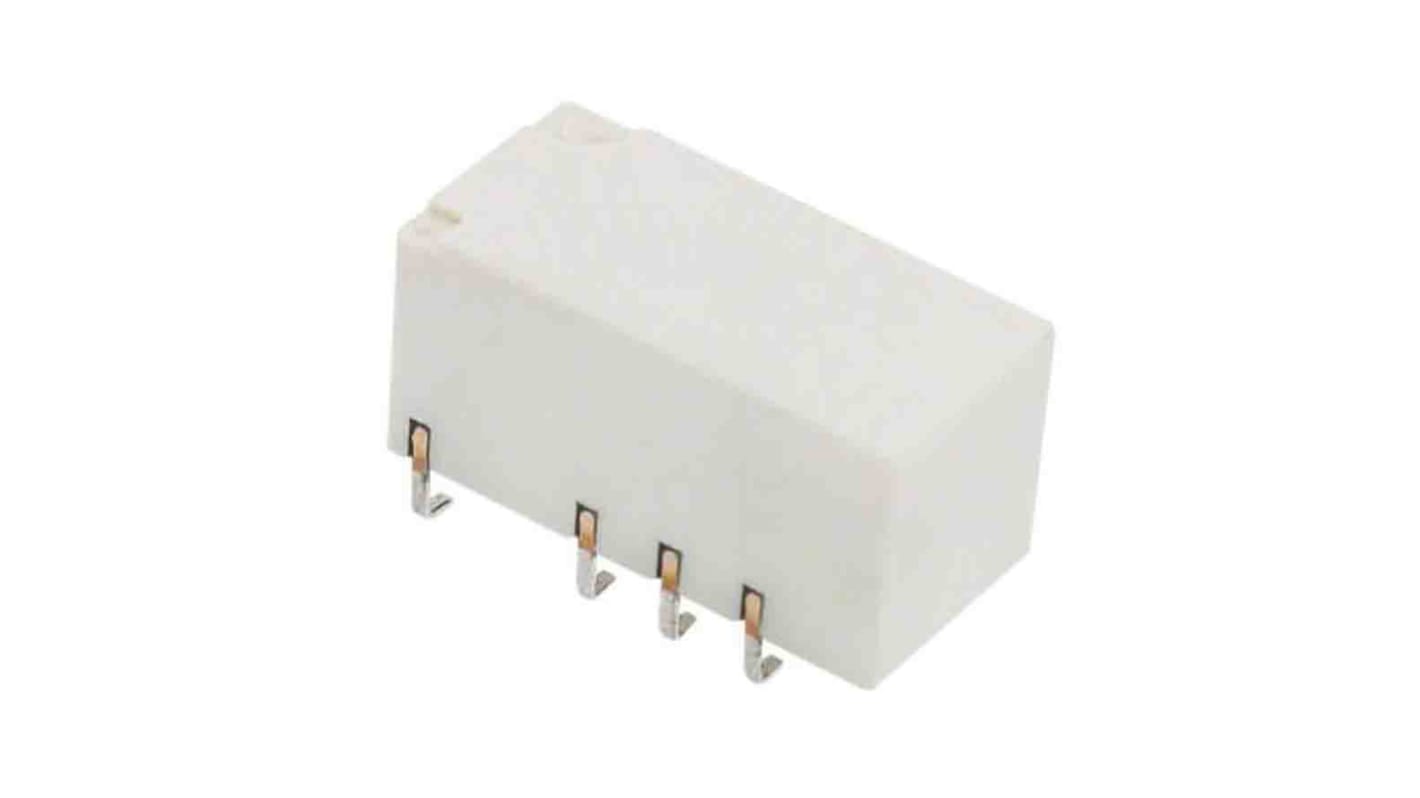

Omron Surface Mount Signal Relay, 12V dc Coil, 1A Switching Current, DPDT

View all Signal Relays
Save 6% when you buy 1000 units

Subtotal (1 tube of 500 units)*

£1,311.00

(exc. VAT)

£1,573.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 09 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
500 - 500£2.622£1,311.00
1000 +£2.462£1,231.00

*price indicative

RS Stock No.:
205-1988
Mfr. Part No.:
G6K-2G DC12
Brand:
Omron
Find similar products by selecting one or more attributes.
Select all

Brand

Omron

Coil Voltage

12V dc

Contact Configuration

DPDT

Mounting Type

Surface Mount

Maximum Switching Current DC

1 A

Maximum Switching Voltage AC

125V

Maximum Switching Voltage DC

60V

Maximum Switching Power DC

30 W

Series

HFD23

Length

10mm

Latching

No

Depth

6.5mm

Height

5.4mm

Dimensions

10 x 6.5 x 5.4mm

Terminal Type

Surface Mount

Number of Poles

2

Switching Current

1A

Maximum Switching Power AC

62.5VA

Isolation Coil To Contact

1kV ac

Maximum Operating Temperature

+70°C

Features

Low Dimension And Weight Combines To Improve Mounting Efficiency, RoHS Complaint

Operating Temperature Range

-40 → +70°C

Coil Resistance

1300Ω

Electrical Life

100000 Operations

Contact Material

Silver Alloy

Minimum Operating Temperature

-40°C

Coil Power

100mW
