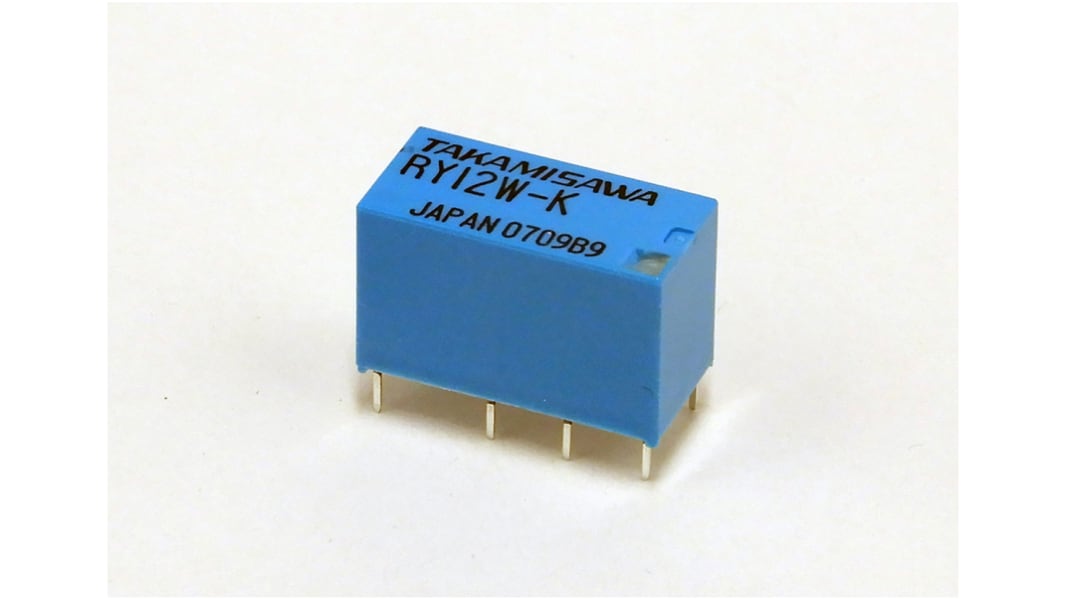

Fujitsu Through Hole Signal Relay, 12V dc Coil, 1A Switching Current, DPDT
- RS Stock No.:
- 195-8107
- Mfr. Part No.:
- RY-12W-K
- Brand:
- Fujitsu
1 In stock for delivery within 5 working days
Added
Price Each
£2.18
(exc. VAT)
£2.62
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £2.18 |
| 5 - 9 | £2.08 |
| 10 - 19 | £1.96 |
| 20 - 29 | £1.88 |
| 30 + | £1.77 |
- RS Stock No.:
- 195-8107
- Mfr. Part No.:
- RY-12W-K
- Brand:
- Fujitsu
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Surge strength 1,500 V
High dielectric strength type available (RY-WF type)
Contact arrangement MBB type available (RY-D type)
High reliability-bifurcated contacts
Wide operating range
DIL terminals
Plastic sealed type
High dielectric strength type available (RY-WF type)
Contact arrangement MBB type available (RY-D type)
High reliability-bifurcated contacts
Wide operating range
DIL terminals
Plastic sealed type
Specifications
Attribute | Value |
|---|---|
| Coil Voltage | 12V dc |
| Contact Configuration | DPDT |
| Mounting Type | Through Hole |
| Maximum Switching Current AC | 1 A |
| Maximum Switching Current DC | 1 A |
| Maximum Switching Voltage AC | 120V ac |
| Maximum Switching Voltage DC | 60V dc |
| Maximum Switching Power DC | 24 W |
| Series | RY |
| Latching | No |
| Length | 20.2mm |
| Depth | 9.8mm |
| Height | 12.5mm |
| Terminal Type | Through Hole |
| Application | Signal |
| Number of Poles | 2 |
| Switching Current | 1A |
| Maximum Operating Temperature | +90°C |
| Contact Material | Silver Alloy |
| Coil Power | 150mW |
| Isolation Coil To Contact | 1kV ac |
| Coil Resistance | 960Ω |
| Maximum Switching Power AC | 60VA |
| Minimum Operating Temperature | -30°C |
