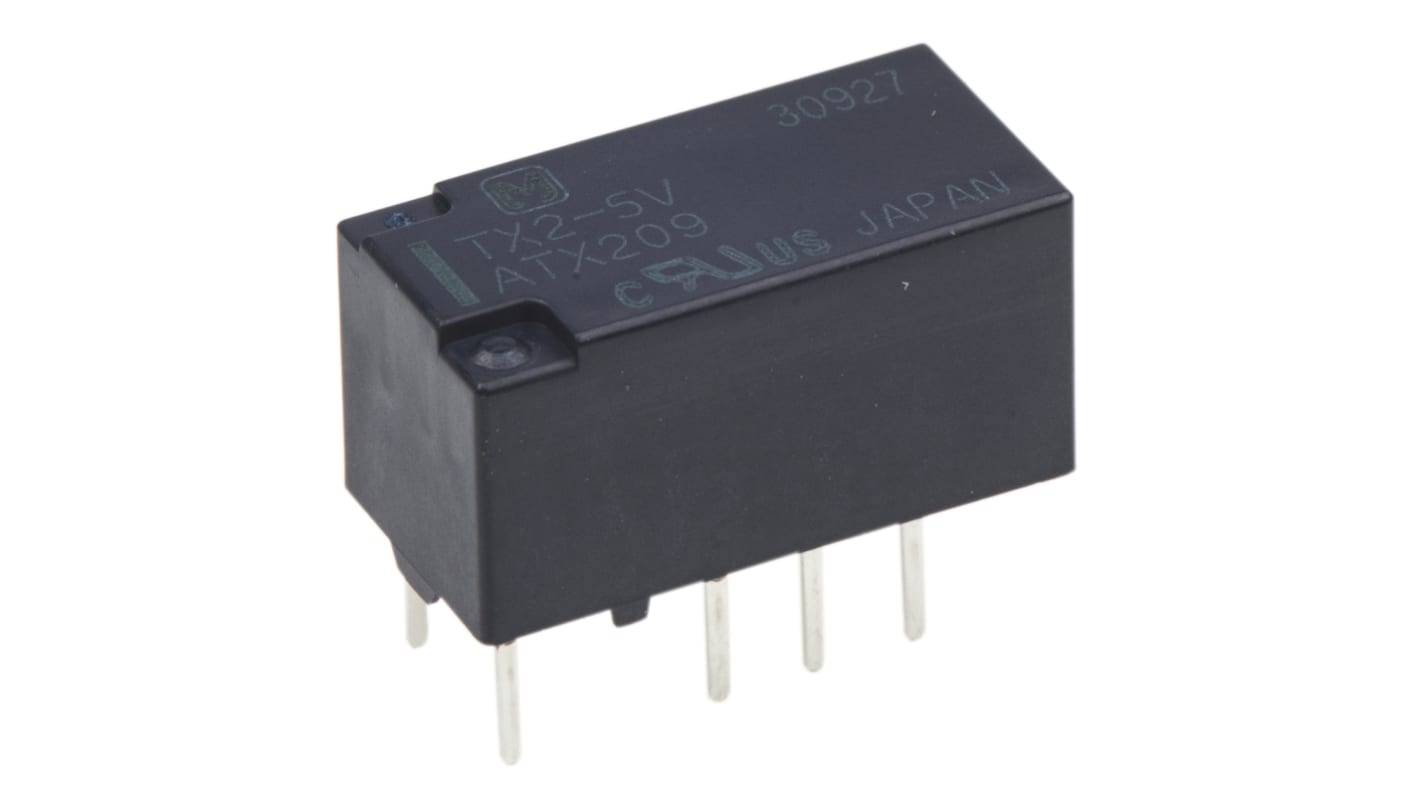

Panasonic PCB Mount Signal Relay, 5V dc Coil, 2A Switching Current, DPDT
- RS Stock No.:
- 178-1918
- Mfr. Part No.:
- TX25
- Brand:
- Panasonic
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£2.43
(exc. VAT)
£2.92
(inc. VAT)
- RS Stock No.:
- 178-1918
- Mfr. Part No.:
- TX25
- Brand:
- Panasonic
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Coil Voltage | 5V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Maximum Switching Current DC | 2 A | |
| Maximum Switching Voltage AC | 250V | |
| Maximum Switching Voltage DC | 220V | |
| Series | TX | |
| Maximum Switching Power DC | 60 W | |
| Length | 15mm | |
| Latching | No | |
| Depth | 7.4mm | |
| Height | 8.2mm | |
| Dimensions | 15 x 8.2 x 7.4mm | |
| Terminal Type | PCB Pin | |
| Number of Poles | 2 | |
| Switching Current | 2A | |
| Application | General Purpose | |
| Features | Outstanding Surge Resistance, Sealed Construction Allows Automatic Washing, | |
| Coil Resistance | 178Ω | |
| Maximum Operating Temperature | +85°C | |
| Isolation Coil To Contact | 2kV rms | |
| Coil Power | 140mW | |
| Operating Temperature Range | -40 → +85°C | |
| Life | 100000000 (Electrical) cycles | |
| Contact Material | Gold Plated | |
| Maximum Switching Power AC | 62.5VA | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Coil Voltage 5V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Maximum Switching Current DC 2 A | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 220V | ||
Series TX | ||
Maximum Switching Power DC 60 W | ||
Length 15mm | ||
Latching No | ||
Depth 7.4mm | ||
Height 8.2mm | ||
Dimensions 15 x 8.2 x 7.4mm | ||
Terminal Type PCB Pin | ||
Number of Poles 2 | ||
Switching Current 2A | ||
Application General Purpose | ||
Features Outstanding Surge Resistance, Sealed Construction Allows Automatic Washing, | ||
Coil Resistance 178Ω | ||
Maximum Operating Temperature +85°C | ||
Isolation Coil To Contact 2kV rms | ||
Coil Power 140mW | ||
Operating Temperature Range -40 → +85°C | ||
Life 100000000 (Electrical) cycles | ||
Contact Material Gold Plated | ||
Maximum Switching Power AC 62.5VA | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- JP
TX Series
High vibration and shock resistance
Sealed construction allows automatic washing
Compact size (8.2x15x7.4mm)
For SMT types see stk no. 217-2977 typically
Ideal for telecommunication applications, measurement, security, medical equipment etc
