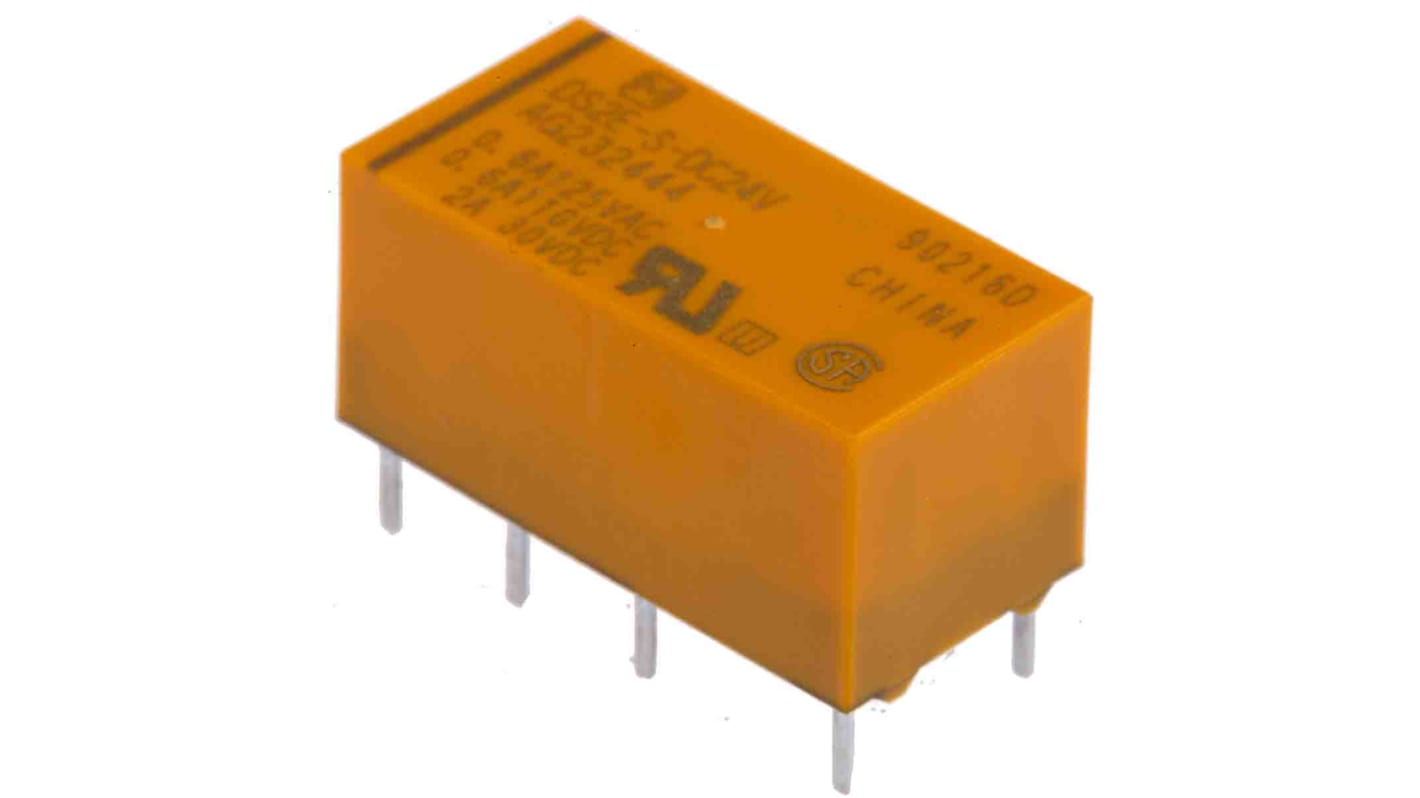

Panasonic PCB Mount Signal Relay, 24V dc Coil, 3A Switching Current, DPDT
- RS Stock No.:
- 173-8159
- Mfr. Part No.:
- DS2E-S-DC24V
- Brand:
- Panasonic
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£3.30
(exc. VAT)
£3.96
(inc. VAT)
- RS Stock No.:
- 173-8159
- Mfr. Part No.:
- DS2E-S-DC24V
- Brand:
- Panasonic
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Coil Voltage | 24V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Maximum Switching Current DC | 3 A | |
| Maximum Switching Voltage AC | 250V ac | |
| Maximum Switching Voltage DC | 220V dc | |
| Maximum Switching Power DC | 60 W | |
| Series | DS | |
| Latching | No | |
| Length | 20.2mm | |
| Depth | 9.8mm | |
| Height | 9.9mm | |
| Dimensions | 20 x 9.9 x 9.9mm | |
| Terminal Type | PCB Pin | |
| Number of Poles | 2 | |
| Switching Current | 3A | |
| Application | General Purpose | |
| Operating Temperature Range | -40 → +70°C | |
| Features | Suitable For Use In Difficult Environments, Gold Clad Twin Contacts Ensure High Reliability, Can Be Used With Automatic Solder And Automatic Wash Systems | |
| Contact Material | Gold Plated | |
| Minimum Operating Temperature | -40°C | |
| Coil Power | 200mW | |
| Maximum Operating Temperature | +70°C | |
| Isolation Coil To Contact | 1.5kV rms | |
| Life | 100000000 (Electrical) cycles | |
| Maximum Switching Power AC | 125VA | |
| Electrical Life | 5000000 Operation Cycles | |
| Coil Resistance | 2800Ω | |
Select all | ||
|---|---|---|
Brand Panasonic | ||
Coil Voltage 24V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Maximum Switching Current DC 3 A | ||
Maximum Switching Voltage AC 250V ac | ||
Maximum Switching Voltage DC 220V dc | ||
Maximum Switching Power DC 60 W | ||
Series DS | ||
Latching No | ||
Length 20.2mm | ||
Depth 9.8mm | ||
Height 9.9mm | ||
Dimensions 20 x 9.9 x 9.9mm | ||
Terminal Type PCB Pin | ||
Number of Poles 2 | ||
Switching Current 3A | ||
Application General Purpose | ||
Operating Temperature Range -40 → +70°C | ||
Features Suitable For Use In Difficult Environments, Gold Clad Twin Contacts Ensure High Reliability, Can Be Used With Automatic Solder And Automatic Wash Systems | ||
Contact Material Gold Plated | ||
Minimum Operating Temperature -40°C | ||
Coil Power 200mW | ||
Maximum Operating Temperature +70°C | ||
Isolation Coil To Contact 1.5kV rms | ||
Life 100000000 (Electrical) cycles | ||
Maximum Switching Power AC 125VA | ||
Electrical Life 5000000 Operation Cycles | ||
Coil Resistance 2800Ω | ||
- COO (Country of Origin):
- DE
DS Series
200mW nominal operating power
Dual In Line pinning
Sealed construction allows automatic washing
Typical applications include Telecommunications and Measurement equipment, Computers equipment etc
