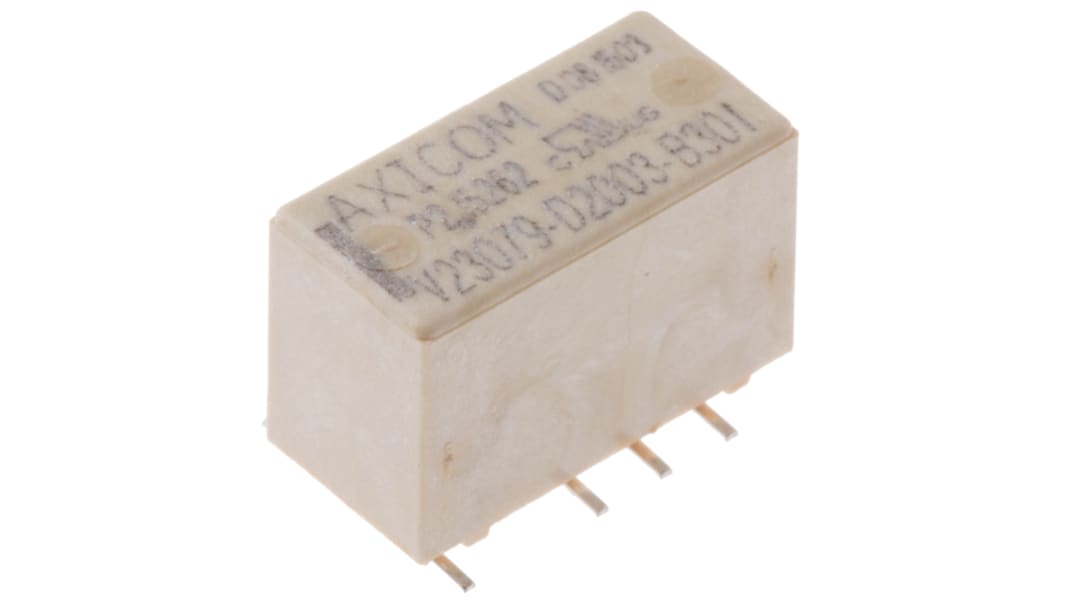

TE Connectivity PCB Mount Signal Relay, 12V dc Coil, 2A Switching Current, DPDT
- RS Stock No.:
- 168-0262
- Mfr. Part No.:
- V23079-D2003-B301
- Brand:
- TE Connectivity
Subtotal (1 bag of 250 units)**
£460.00
(exc. VAT)
£552.50
(inc. VAT)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over £50.00
Units | Per unit | Per Bag** |
|---|---|---|
| 250 - 250 | £1.84 | £460.00 |
| 500 - 750 | £1.656 | £414.00 |
| 1000 - 1750 | £1.472 | £368.00 |
| 2000 + | £1.288 | £322.00 |
**price indicative
- RS Stock No.:
- 168-0262
- Mfr. Part No.:
- V23079-D2003-B301
- Brand:
- TE Connectivity
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 12V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Maximum Switching Current DC | 2 A | |
| Maximum Switching Voltage AC | 250V | |
| Maximum Switching Voltage DC | 220V dc | |
| Series | W11 | |
| Maximum Switching Power DC | 60 W | |
| Latching | No | |
| Length | 14.5mm | |
| Depth | 7.2mm | |
| Height | 10.4mm | |
| Dimensions | 14.5 x 10.4 x 7.2mm | |
| Terminal Type | Through Hole | |
| Application | Signal | |
| Switching Current | 2A | |
| Number of Poles | 2 | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +85°C | |
| Features | Bifurcated Contacts, Immersion cleanable | |
| Contact Material | Gold Plated | |
| Coil Resistance | 1000Ω | |
| Coil Power | 140mW | |
| Maximum Operating Temperature | +85°C | |
| Isolation Coil To Contact | 1kV rms | |
| Maximum Switching Power AC | 62.5VA | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 12V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Maximum Switching Current DC 2 A | ||
Maximum Switching Voltage AC 250V | ||
Maximum Switching Voltage DC 220V dc | ||
Series W11 | ||
Maximum Switching Power DC 60 W | ||
Latching No | ||
Length 14.5mm | ||
Depth 7.2mm | ||
Height 10.4mm | ||
Dimensions 14.5 x 10.4 x 7.2mm | ||
Terminal Type Through Hole | ||
Application Signal | ||
Switching Current 2A | ||
Number of Poles 2 | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +85°C | ||
Features Bifurcated Contacts, Immersion cleanable | ||
Contact Material Gold Plated | ||
Coil Resistance 1000Ω | ||
Coil Power 140mW | ||
Maximum Operating Temperature +85°C | ||
Isolation Coil To Contact 1kV rms | ||
Maximum Switching Power AC 62.5VA | ||
