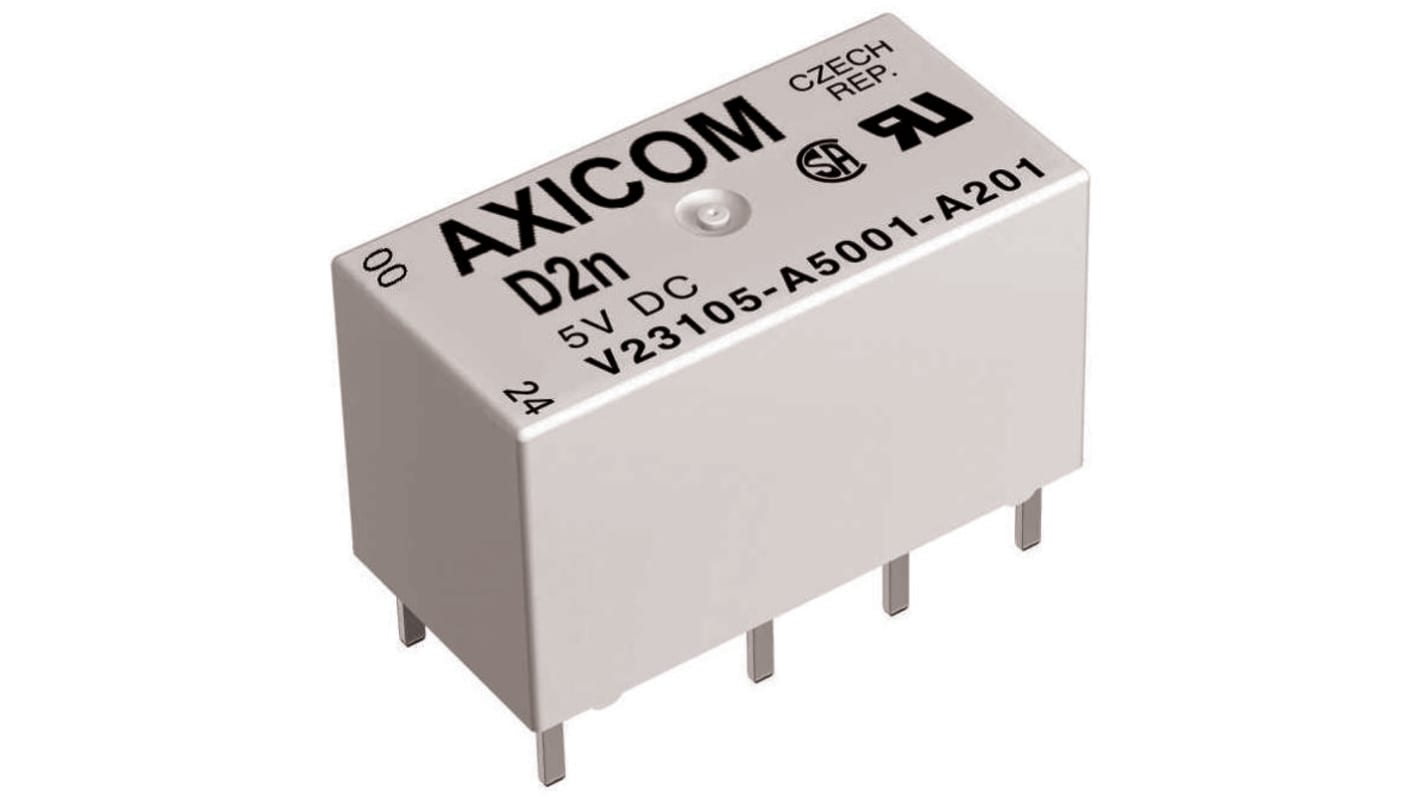

TE Connectivity PCB Mount Signal Relay, 5V dc Coil, 3A Switching Current, DPDT
- RS Stock No.:
- 164-8778
- Mfr. Part No.:
- V23105A5301A201
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 164-8778
- Mfr. Part No.:
- V23105A5301A201
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Coil Voltage | 5V dc | |
| Contact Configuration | DPDT | |
| Mounting Type | PCB Mount | |
| Series | D2n | |
| Maximum Switching Power DC | 60 W | |
| Length | 20.2mm | |
| Latching | No | |
| Depth | 10mm | |
| Height | 11mm | |
| Terminal Type | Through Hole | |
| Switching Current | 3A | |
| Application | Signal | |
| Number of Poles | 2 | |
| Contact Material | Gold Plated | |
| Maximum Switching Power AC | 125VA | |
| Operating Temperature Range | -25 °C → +85°C | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +85°C | |
| Coil Resistance | 125Ω | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Coil Voltage 5V dc | ||
Contact Configuration DPDT | ||
Mounting Type PCB Mount | ||
Series D2n | ||
Maximum Switching Power DC 60 W | ||
Length 20.2mm | ||
Latching No | ||
Depth 10mm | ||
Height 11mm | ||
Terminal Type Through Hole | ||
Switching Current 3A | ||
Application Signal | ||
Number of Poles 2 | ||
Contact Material Gold Plated | ||
Maximum Switching Power AC 125VA | ||
Operating Temperature Range -25 °C → +85°C | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +85°C | ||
Coil Resistance 125Ω | ||
- COO (Country of Origin):
- CZ
D2n Relay 3A
Universal PCB relay
Monostable
1 winding with 2 changeovers
For installation in push-down switches
Plastic housing, washproof
High voltage handling capability in accordance with FCC Part 68: 1.5 kV (10 / 160 μs)
Switching capacity from a low-level signal up to 3 A
Response / release / bounce time: 5 ms / 4 ms / 3 ms
Standard pinning
Applications: communications technology, entertainment electronics, telecommunications
Monostable
1 winding with 2 changeovers
For installation in push-down switches
Plastic housing, washproof
High voltage handling capability in accordance with FCC Part 68: 1.5 kV (10 / 160 μs)
Switching capacity from a low-level signal up to 3 A
Response / release / bounce time: 5 ms / 4 ms / 3 ms
Standard pinning
Applications: communications technology, entertainment electronics, telecommunications
Approvals
UL, CSA
