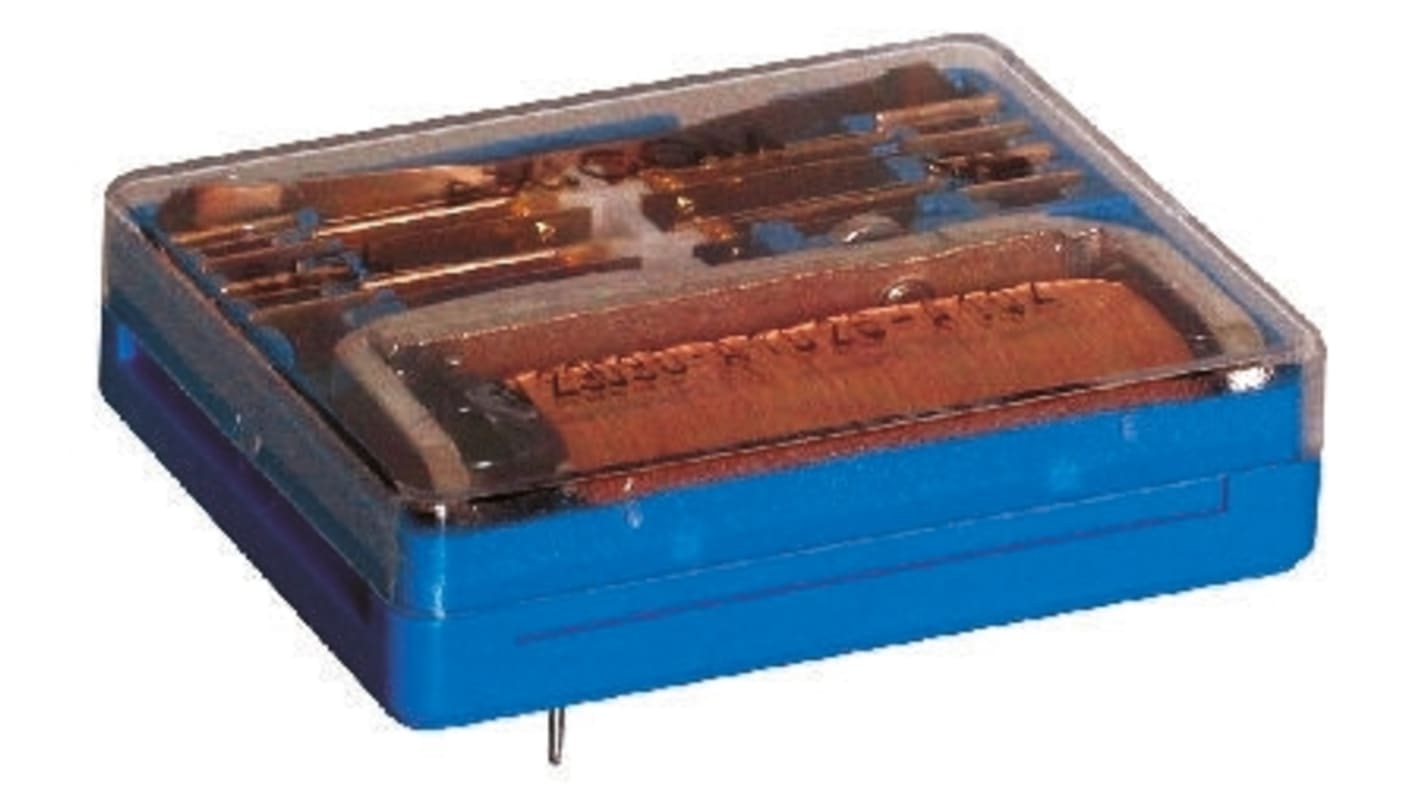

Neutral direct voltage relay, monostable For installation in push-down switches Dual contact Low-profile design Wide-ranging creepage and air gap distances and high contact/body electrical strength Dust-proof and washproof
Approvals
UL
Attribute
Value
Coil Voltage
12V dc
Contact Configuration
6PDT
Mounting Type
PCB Mount
Maximum Switching Current DC
3 A
Maximum Switching Voltage AC
250V
Maximum Switching Voltage DC
250V
Maximum Switching Power DC
30 W
Series
Card SN
Latching
No
Length
39.7mm
Depth
37.4mm
Height
10.1mm
Dimensions
39.7 x 37.4 x 10.2mm
Terminal Type
Through Hole
Switching Current
3A
Number of Poles
6
Minimum Operating Temperature
-40°C
Features
Low Profile, Therefore Particularly Suited For Flat Pack Components Grouping
