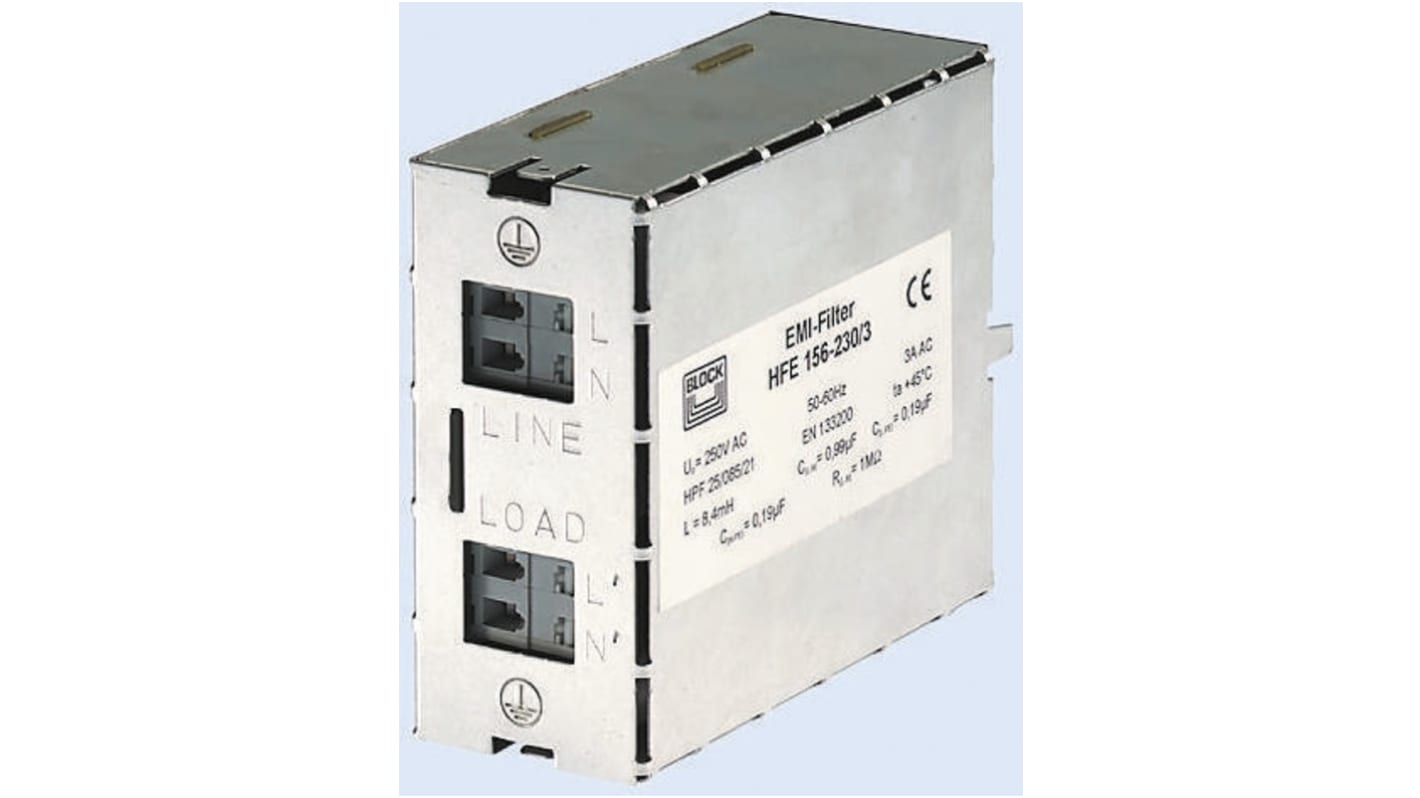

Block, HFE156, Signal Filter, 250 V ac 0.00006MHz, 10A, DIN Rail, Tab, 40 x 107 x 85mm
- RS Stock No.:
- 336-7980
- Brand:
- Block
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£226.46
(exc. VAT)
£271.75
(inc. VAT)
- RS Stock No.:
- 336-7980
- Brand:
- Block
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Block | |
| Series | HFE156 | |
| Maximum Current Rating | 10A | |
| Maximum Voltage Rating | 250 V ac | |
| Mounting Type | DIN Rail | |
| Operating Frequency | 0.00006MHz | |
| Termination Style | Tab | |
| Dimensions | 40 x 107 x 85mm | |
| Depth | 107mm | |
| Height | 85mm | |
| Length | 40mm | |
| Maximum Operating Temperature | +45°C | |
Select all | ||
|---|---|---|
Brand Block | ||
Series HFE156 | ||
Maximum Current Rating 10A | ||
Maximum Voltage Rating 250 V ac | ||
Mounting Type DIN Rail | ||
Operating Frequency 0.00006MHz | ||
Termination Style Tab | ||
Dimensions 40 x 107 x 85mm | ||
Depth 107mm | ||
Height 85mm | ||
Length 40mm | ||
Maximum Operating Temperature +45°C | ||
- COO (Country of Origin):
- DE
HFE 156-230/X Series
High insertion loss over a wide frequency range
High asymmetrical interference suppression
Ideal for supply-side suppression of frequency converters
Screened by sheet steel enclosure
Din rail mount
2.5mm2 spring tension clamps
Dual earth connection with standard tab connector 6.3x0.8mm
High asymmetrical interference suppression
Ideal for supply-side suppression of frequency converters
Screened by sheet steel enclosure
Din rail mount
2.5mm2 spring tension clamps
Dual earth connection with standard tab connector 6.3x0.8mm
