Analog Devices EVAL-ADA4350RUZ-P, ADA4350 Evaluation Board
- RS Stock No.:
- 892-0056
- Mfr. Part No.:
- EVAL-ADA4350RUZ-P
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 892-0056
- Mfr. Part No.:
- EVAL-ADA4350RUZ-P
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Featured Device | ADA4350 | |
| Kit Name | ADA4350 | |
| Converter Type | ADC | |
| Kit Classification | Evaluation Board | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Featured Device ADA4350 | ||
Kit Name ADA4350 | ||
Converter Type ADC | ||
Kit Classification Evaluation Board | ||

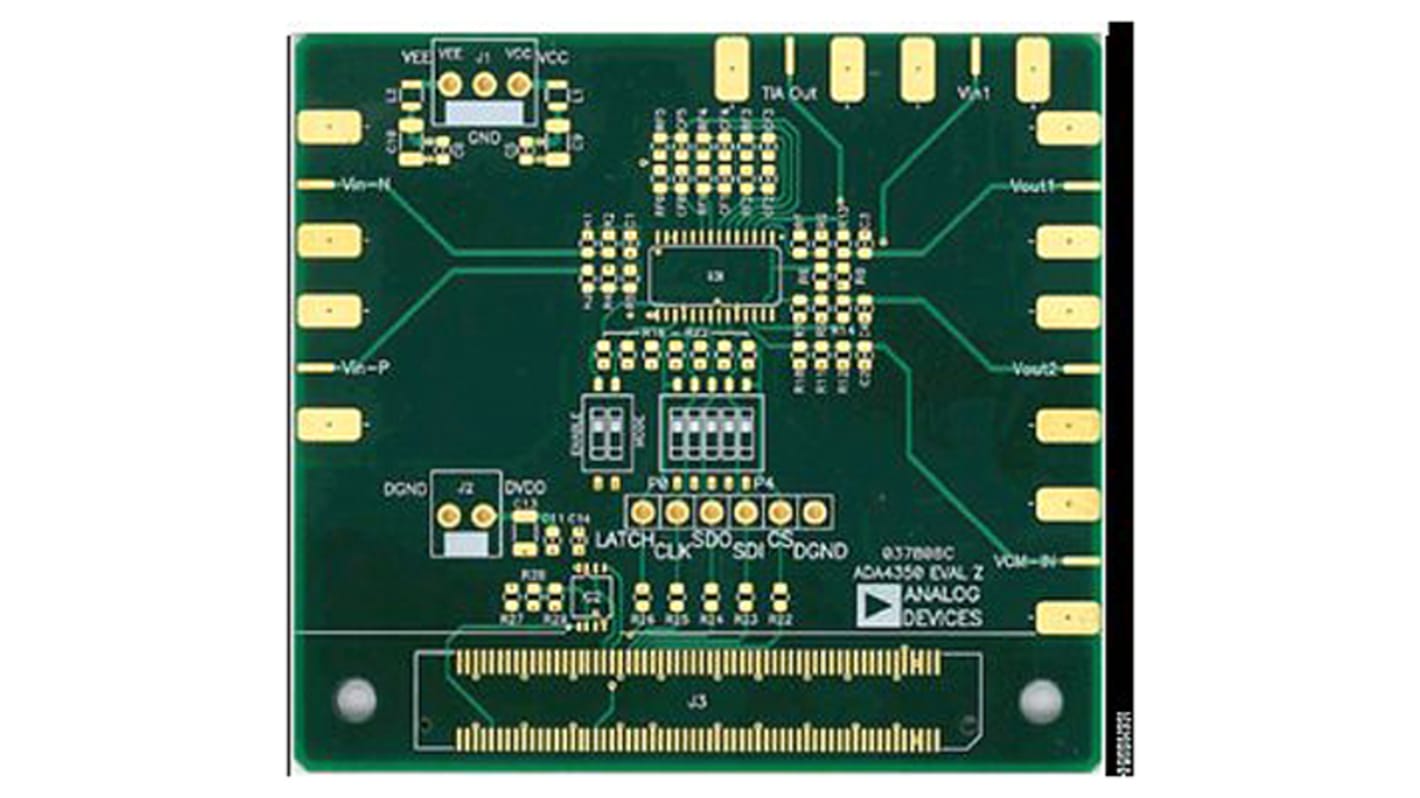

Evaluation Board for ADA4350
Analog Devices EVAL-ADA4350RUZ-P evaluation board is designed to help users evaluate the ADA4350, a FET Input Analog Front End with a ADC Driver offered in TSSOP package. The eval board provides a fast way to prototype the best configuration of the Analog Front End for their systems. The eval board is a six-layer printed circuit board (PCB) which is designed to minimise the leakage currents with its guard ring features. There is a facility on the board to connect a SMA edge mounted connectors to the inputs and outputs for an efficient connection to test equipment or other circuitry.
Enables quick breadboarding/prototyping
User defined circuit configuration
Edge mounted SMA connector provisions
Easy connection to test equipment and other circuits
Guard ring to minimise leakage currents
User defined circuit configuration
Edge mounted SMA connector provisions
Easy connection to test equipment and other circuits
Guard ring to minimise leakage currents
