Analog Devices AD9139-DUAL-EBZ Evaluation Board Signal Conversion Development Kit
- RS Stock No.:
- 804-9652
- Mfr. Part No.:
- AD9139-DUAL-EBZ
- Brand:
- Analog Devices
Subtotal (1 unit)*
£489.40
(exc. VAT)
£587.28
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 + | £489.40 |
*price indicative
- RS Stock No.:
- 804-9652
- Mfr. Part No.:
- AD9139-DUAL-EBZ
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Resolution | 16-bit | |
| Kit Classification | Evaluation Board | |
| Featured Device | AD9139 | |
| Converter Type | DAC | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Resolution 16-bit | ||
Kit Classification Evaluation Board | ||
Featured Device AD9139 | ||
Converter Type DAC | ||
- COO (Country of Origin):
- US

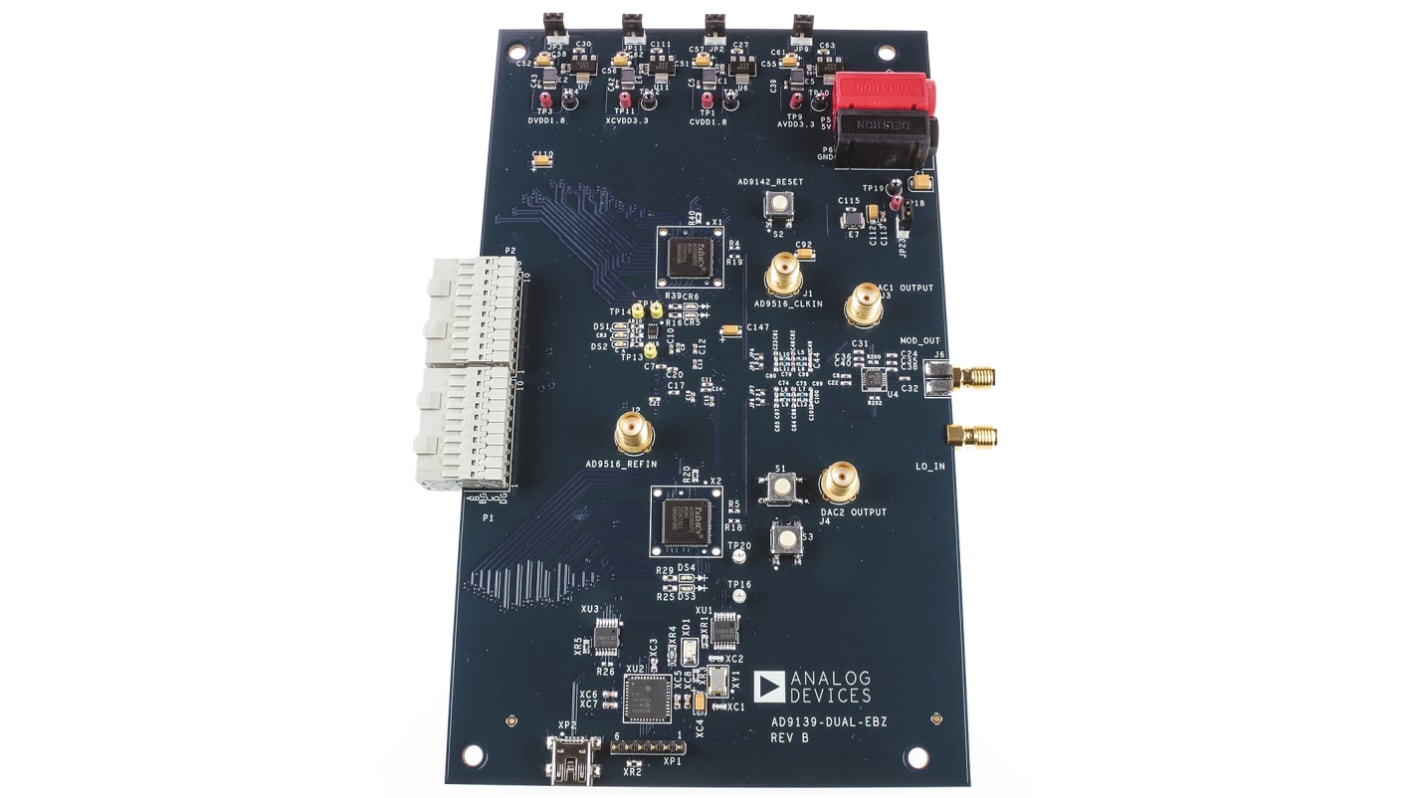

Evaluation Board for AD9139 Dual 16-bit DAC
The AD9139-DUAL-EBZ evaluation board, from Analog Devices, is designed for the evaluation of the AD9139. The AD9139 device is a high speed, signal processing Digital to Analogue Converter (DAC). When connected to a DPG3 the board can evaluate the AD9139 quickly by formatting data to send to the AD9139-DUAL-EBZ, simplifying the process. The AD9139-DUAL-EBZ evaluation board runs from a 5V power supply.
There is an AD9516 clock distribution chip on the evaluation board as a clock fan-out and frequency divider for the DACCLK, REFCLK, Frame, and DPG3 input clock. An ADL5375 quadrature modulator is also included for fast DAC+IQMOD evaluation. Dual AD9139 DACs are used on the evaluation board to work as I and Q, which typically applies to the case of wideband applications.
There is an AD9516 clock distribution chip on the evaluation board as a clock fan-out and frequency divider for the DACCLK, REFCLK, Frame, and DPG3 input clock. An ADL5375 quadrature modulator is also included for fast DAC+IQMOD evaluation. Dual AD9139 DACs are used on the evaluation board to work as I and Q, which typically applies to the case of wideband applications.
The AD9139-DUAL-EBZ Evaluation Board includes:
- AD9139-DUAL-EBZ Evaluation Board
- Evaluation Board CD
- Mini-USB Cable
- AD9139-DUAL-EBZ Evaluation Board
- Evaluation Board CD
- Mini-USB Cable
