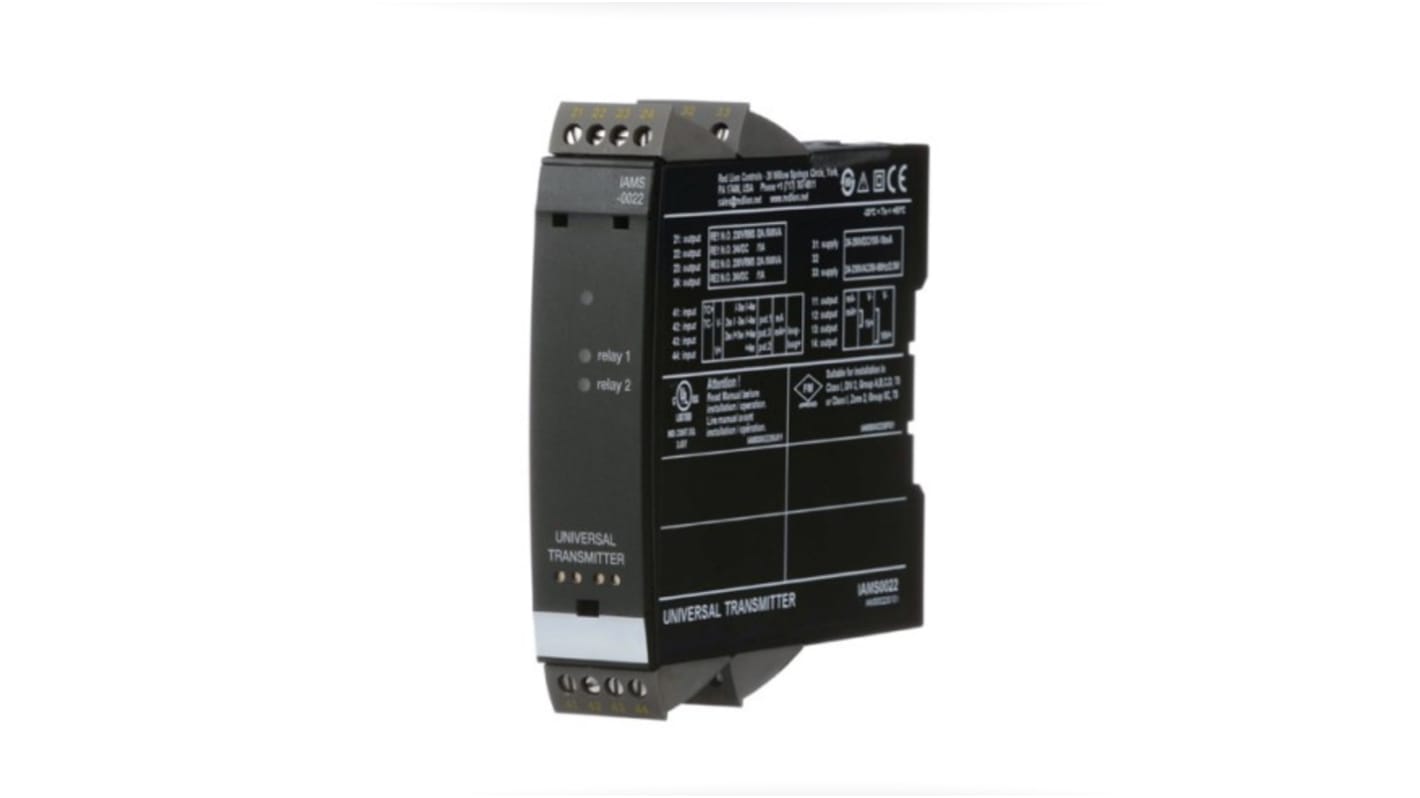

Red Lion IAMS Series Signal Conditioner, RTD, Linear Resistance, Potentiometer, Voltage, Thermocouple, Current Input,
- RS Stock No.:
- 276-9860
- Mfr. Part No.:
- IAMS0020
- Brand:
- Red Lion
Subtotal (1 unit)*
£261.96
(exc. VAT)
£314.35
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £261.96 |
*price indicative
- RS Stock No.:
- 276-9860
- Mfr. Part No.:
- IAMS0020
- Brand:
- Red Lion
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Red Lion | |
| Product Type | Signal Conditioner | |
| Input Signal Type | RTD, Linear Resistance, Potentiometer, Voltage, Thermocouple, Current | |
| Output Signal Type | Current | |
| Input Range | 0 → 20 mA | |
| Output Range | 0 → 20 mA | |
| Isolation | 2.3kV ac | |
| Supply Voltage | 253V ac | |
| Hazardous Area Certification | NO | |
| Mount Type | DIN Rail | |
| Maximum Operating Temperature | 60°C | |
| Terminal Type | Screw | |
| Minimum Operating Temperature | -25°C | |
| IP Rating | IP20 | |
| SIL Level | SIL 2 | |
| Standards/Approvals | UL 508, IEC 60068-2-6, EN 61326-1 | |
| Series | IAMS | |
| Select all | ||
|---|---|---|
Brand Red Lion | ||
Product Type Signal Conditioner | ||
Input Signal Type RTD, Linear Resistance, Potentiometer, Voltage, Thermocouple, Current | ||
Output Signal Type Current | ||
Input Range 0 → 20 mA | ||
Output Range 0 → 20 mA | ||
Isolation 2.3kV ac | ||
Supply Voltage 253V ac | ||
Hazardous Area Certification NO | ||
Mount Type DIN Rail | ||
Maximum Operating Temperature 60°C | ||
Terminal Type Screw | ||
Minimum Operating Temperature -25°C | ||
IP Rating IP20 | ||
SIL Level SIL 2 | ||
Standards/Approvals UL 508, IEC 60068-2-6, EN 61326-1 | ||
Series IAMS | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DK
The Red Lion Signal Conditioner is a universal transmitter with analogue output that accepts inputs from various sources, including RTD, TC, Ohm, potentiometer, mA and V. This wide input compatibility makes it suitable for diverse measurement and control applications. It operates with a 2 wire supply voltage greater than 16 V. It is designed as SIL 2 devices with a high safety level. Therefore, a continuous measurement of the outgoing current is carried out on a 4 to 20 mA and 20 to 4 mA output signal.
Error diagnostics
Signal simulation
Process calibration
Password protection
2 adjustable alarm limits
FM approved for installation in Div. 2
Output for current and voltage with 2 relays
