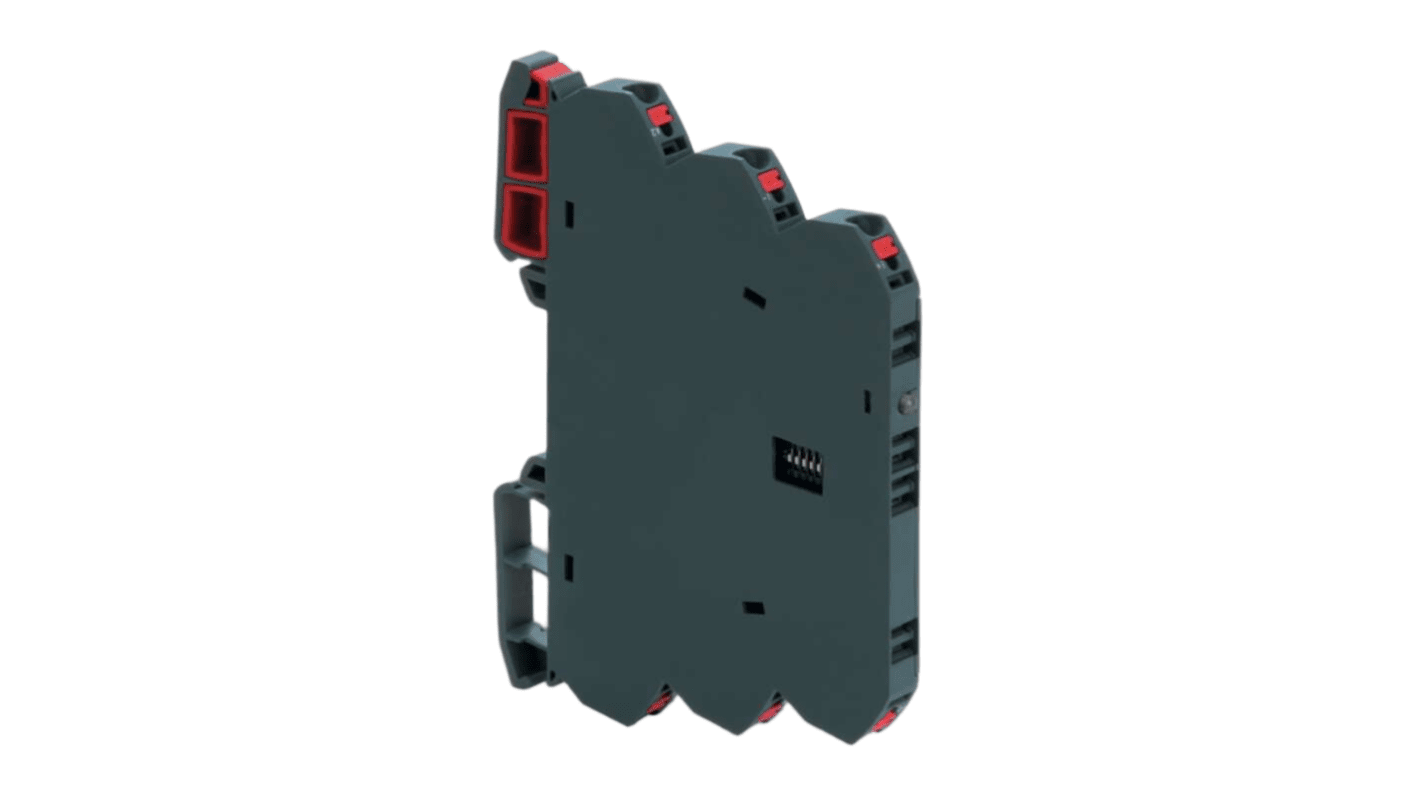

RS PRO Analogue Converter, Current, Voltage Output, 24V ac/dc Supply
- RS Stock No.:
- 606-325
- Brand:
- RS PRO
Subtotal (1 unit)*
£114.12
(exc. VAT)
£136.94
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 18 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £114.12 |
*price indicative
- RS Stock No.:
- 606-325
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Analogue Converter | |
| Output Signal Type | Current, Voltage | |
| Input Range | -50 → +1200 °C | |
| Output Range | 0 → 20 mA | |
| Isolation | 2.5kV | |
| Supply Voltage | 24V ac/dc | |
| Hazardous Area Certification | NO | |
| Mount Type | DIN Rail | |
| Terminal Type | Push-in | |
| Maximum Operating Temperature | 60°C | |
| Minimum Operating Temperature | -25°C | |
| IP Rating | IP20 | |
| Standards/Approvals | EN 61000-6-4, EN 61000-6-2, cULus (E135145), CE, EN 60947-5-1, EN 60947-1, UL 508, DNV (TAA000024Y), UKCA, DNV-CG-0339 | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Analogue Converter | ||
Output Signal Type Current, Voltage | ||
Input Range -50 → +1200 °C | ||
Output Range 0 → 20 mA | ||
Isolation 2.5kV | ||
Supply Voltage 24V ac/dc | ||
Hazardous Area Certification NO | ||
Mount Type DIN Rail | ||
Terminal Type Push-in | ||
Maximum Operating Temperature 60°C | ||
Minimum Operating Temperature -25°C | ||
IP Rating IP20 | ||
Standards/Approvals EN 61000-6-4, EN 61000-6-2, cULus (E135145), CE, EN 60947-5-1, EN 60947-1, UL 508, DNV (TAA000024Y), UKCA, DNV-CG-0339 | ||
- COO (Country of Origin):
- DE
The RS Pro Temperature to analogue converter supports thermal element inputs J and K and provides outputs of 0 to 10 V, 0 to 20 mA, or 4 to 20 mA. It features 2.5 kV three-way isolation for reliable and safe signal conversion.
Input Thermal elements J and K
Output 0 to 10 V
Output 0 to 20 mA
Output 4 to 20 mA
Insulation 2.5 kV
Three-way isolation
