Ruland Shaft Collar, Two Piece, Clamp Screw, Bore 10mm, OD 24mm, W 9mm
- RS Stock No.:
- 186-4140
- Mfr. Part No.:
- MSP-10-ST
- Brand:
- Ruland
Subtotal (1 unit)*
£22.00
(exc. VAT)
£26.40
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 15 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £22.00 |
*price indicative
- RS Stock No.:
- 186-4140
- Mfr. Part No.:
- MSP-10-ST
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Shaft Diameter | 10mm | |
| One/Two Piece | Two Piece | |
| Outside Diameter | 24mm | |
| Fastening | Clamp Screw | |
| Width | 9mm | |
Select all | ||
|---|---|---|
Brand Ruland | ||
Shaft Diameter 10mm | ||
One/Two Piece Two Piece | ||
Outside Diameter 24mm | ||
Fastening Clamp Screw | ||
Width 9mm | ||

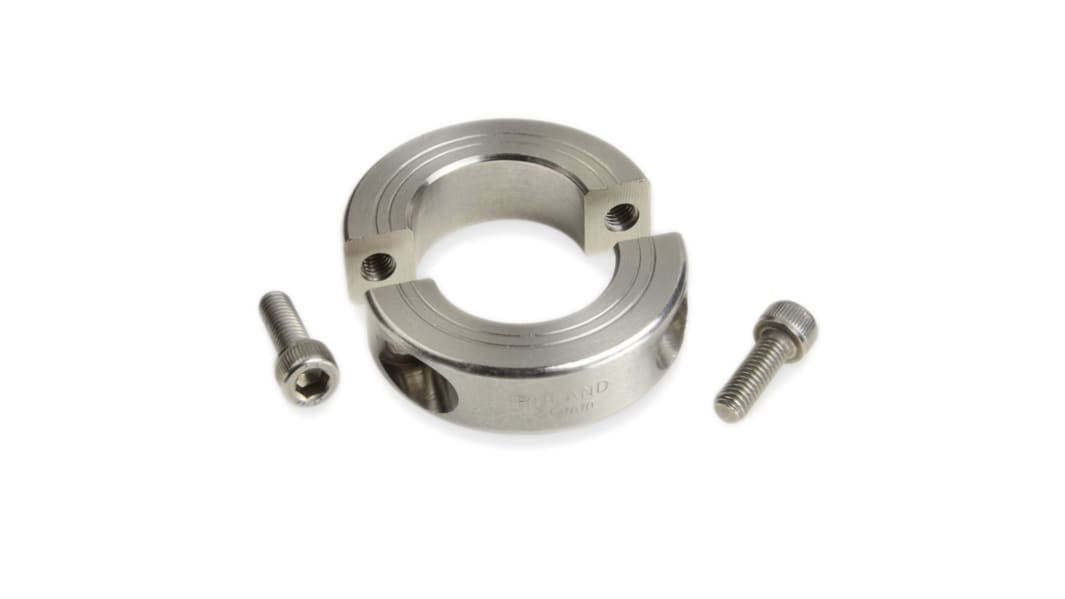

Ruland MSP-10-ST is a two-piece shaft collar with a 10mm bore, 24mm OD, and 9mm width. The clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. MSP-10-ST is commonly used for guiding, spacing, stopping, mounting, and component alignment. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity of Ruland shaft collars, TIR of ≤ 05mm. Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings. Proprietary processes have been developed by Ruland to maintain superior fit, finish, and holding power. MSP-10-ST is stamped with the Ruland name and bore size for ease of identification. Halves are mated throughout the manufacturing process for proper fit and alignment. MSP-10-ST is machined from solid bar stock to a fine burr free finish and sourced exclusively from North American mills. Ruland uses 316 stainless steel with hardware of like material for consistent corrosion resistance. Stainless steel hardware undergoes a proprietary surface treatment process to prevent galling. It is manufactured in our Marlborough, MA factory under strict controls using proprietary processes.
