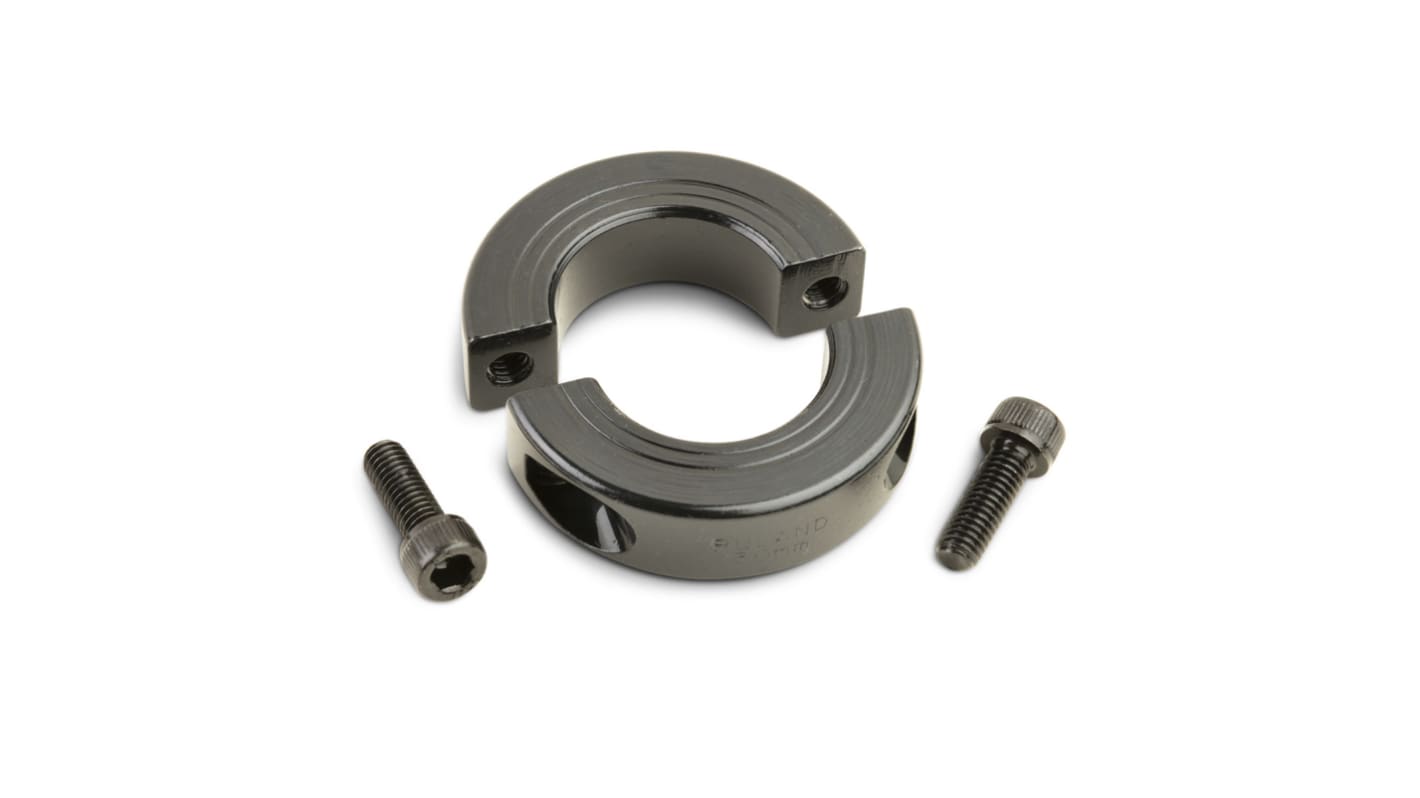

Ruland Shaft Collar, Two Piece, Clamp Screw, OD 16 mm OD, W 9 mm, Carbon Steel

View all Shaft Collars
Bulk discount available

Subtotal (1 unit)*

£6.77

(exc. VAT)

£8.12

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
1 - 4£6.77
5 - 9£6.49
10 - 24£6.34
25 +£6.24

*price indicative

RS Stock No.:
174-6788
Mfr. Part No.:
MSP-5-F
Brand:
Ruland
Find similar products by selecting one or more attributes.
Select all

Brand

Ruland

Product Type

Shaft Collar

Bore Size

5 mm

One/Two Piece

Two Piece

Material

Carbon Steel

Single/Double Wide

Double Wide

Outside Diameter

16 mm

Fastening

Clamp Screw

Threaded Bore Size

M3 x 8

Width

9 mm

Finish

Black Oxide

Bore Type

Plain

Standards/Approvals

RoHS3, REACH, DIN 912 12.9

Series

MSP

COO (Country of Origin):
US
Ruland MSP-5-F is a two-piece shaft collar with a 5mm bore, 16mm OD, and 9mm width. The clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. MSP-5-F is commonly used for guiding, spacing, stopping, mounting, and component alignment. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity of Ruland shaft collars, TIR of ≤ 05mm. Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings. Proprietary processes have been developed by Ruland to maintain superior fit, finish, and holding power.
