Ruland Shaft Collar, One Piece, Clamp Screw, Bore 40mm, OD 60mm, W 15mm, Carbon Steel
- RS Stock No.:
- 174-6741
- Mfr. Part No.:
- MCL-40-F
- Brand:
- Ruland
Bulk discount available
Subtotal (1 unit)*
£14.78
(exc. VAT)
£17.74
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 3 unit(s) shipping from 06 November 2025
- Plus 999,999,996 unit(s) shipping from 21 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £14.78 |
5 - 9 | £14.20 |
10 - 24 | £13.92 |
25 + | £13.60 |
*price indicative
- RS Stock No.:
- 174-6741
- Mfr. Part No.:
- MCL-40-F
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Shaft Diameter | 40mm | |
One/Two Piece | One Piece | |
Material | Carbon Steel | |
Single/Double Wide | Single | |
Outside Diameter | 60mm | |
Fastening | Clamp Screw | |
Width | 15mm | |
Finish | Black Oxide | |
Select all | ||
---|---|---|
Brand Ruland | ||
Shaft Diameter 40mm | ||
One/Two Piece One Piece | ||
Material Carbon Steel | ||
Single/Double Wide Single | ||
Outside Diameter 60mm | ||
Fastening Clamp Screw | ||
Width 15mm | ||
Finish Black Oxide | ||
- COO (Country of Origin):
- US

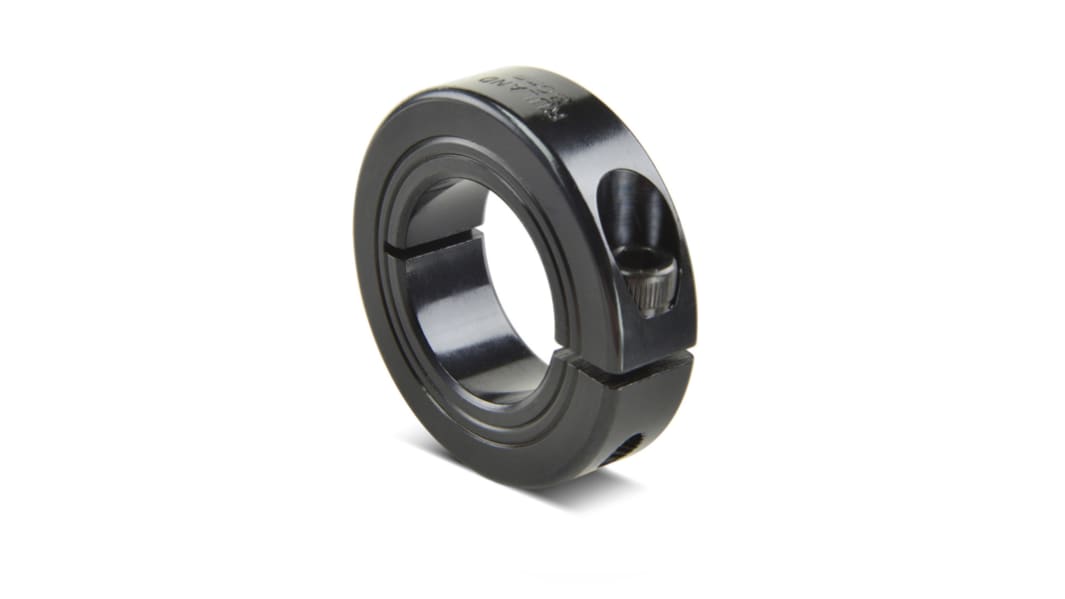

Ruland Shaft Collar One-piece Clamp Screw
The Ruland one-piece shaft collar has dimensions of 40mm bore, 60mm OD and 15mm width. It is made from 1215 carbon steel bar with hot process black oxide, impregnated with naphthenic oil and centrifugally dried finish. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ 0.05mm) which is critical for the alignment. It is stamped with the Ruland name and bore size for ease of identification. The collar has a clamp screw of M6x18 dimension.
Features and Benefits
• Lightweight
• Easily adjustable
• Hassel free removability
• Excellent holding power
• Service temperature ranges between -40°C and 176°C
• Easily adjustable
• Hassel free removability
• Excellent holding power
• Service temperature ranges between -40°C and 176°C
Applications
• Component alignment
• Component mounting
• Loadbearing face
• Mechanical stop
• Component mounting
• Loadbearing face
• Mechanical stop
Certifications
• DIN 912 12.9
• REACH certification
• REACH certification
