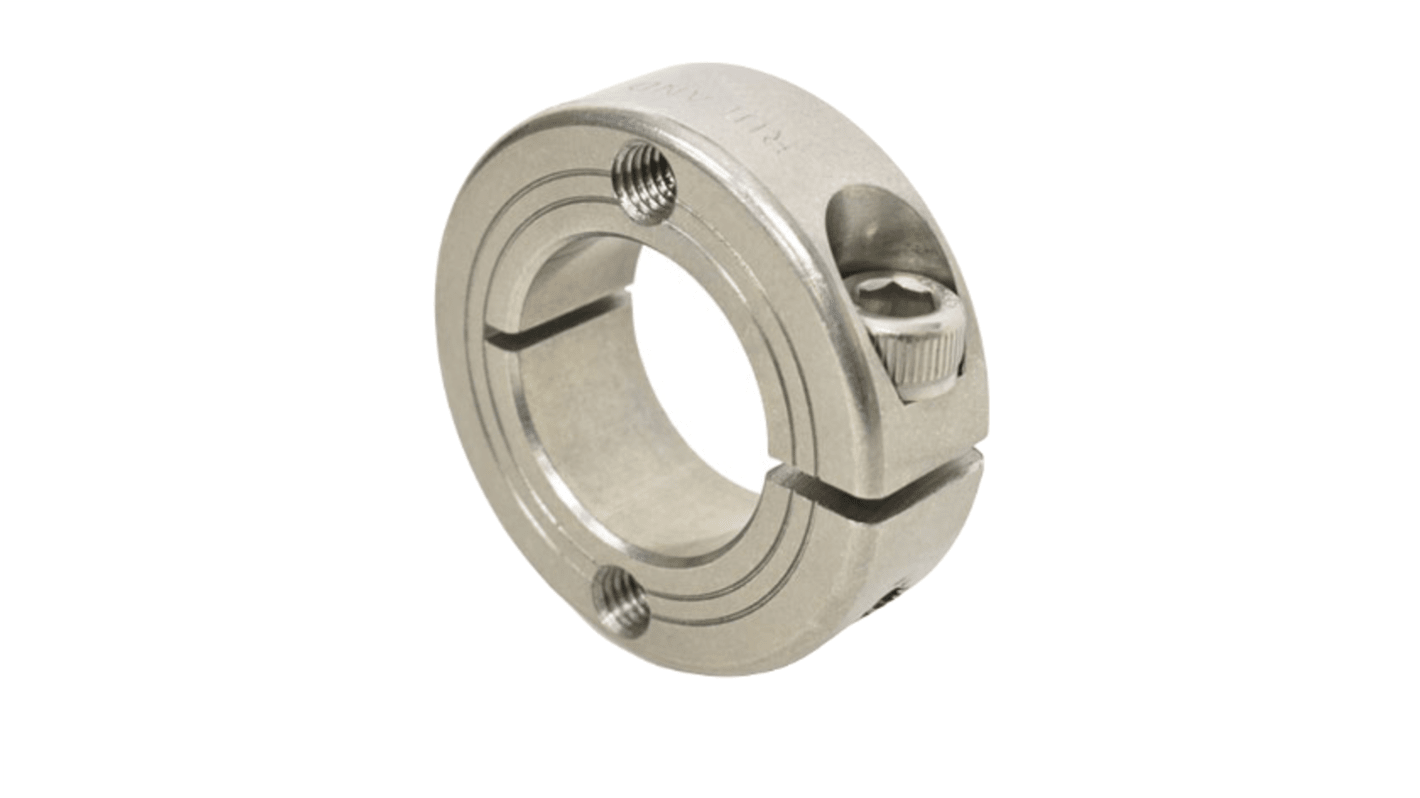

Ruland Shaft Collar, One Piece, Clamp, Bore 20mm, OD 40mm, W 15mm, 303 Stainless Steel

View all Shaft Collars

Subtotal (1 unit)*

£49.33

(exc. VAT)

£59.20

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£49.33

*price indicative

RS Stock No.:
628-019
Mfr. Part No.:
FHT-MCL-20-SS
Brand:
Ruland
Find similar products by selecting one or more attributes.
Select all

Brand

Ruland

Shaft Diameter

20mm

One/Two Piece

One Piece

Material

303 Stainless Steel

Single/Double Wide

Single

Outside Diameter

40mm

Fastening

Clamp

Width

15mm

COO (Country of Origin):
US
The Ruland Tapped holes for mounting shaft collars to sprockets, pulleys, metallic plates, or other components. Tapped holes allow for a secure connection between the shaft collar and mated component. The clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings.

Forged screws tested beyond DIN 912 12.9 standards for maximum holding power
Made from 1215 lead free steel
Proprietary black oxide finish with fine glossy appearance
Increased holding power and corrosion resistance
RoHS3 compliant
REACH compliant
