Ruland Shaft Collar, One Piece, Clamp, OD 48 mm OD, W 15 mm, 316 Stainless Steel
- RS Stock No.:
- 615-851
- Mfr. Part No.:
- MCL-28-ST
- Brand:
- Ruland
Subtotal (1 unit)*
£92.73
(exc. VAT)
£111.28
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £92.73 |
*price indicative
- RS Stock No.:
- 615-851
- Mfr. Part No.:
- MCL-28-ST
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Product Type | Shaft Collar | |
| Bore Size | 28 mm | |
| One/Two Piece | One Piece | |
| Material | 316 Stainless Steel | |
| Single/Double Wide | Single Wide | |
| Outside Diameter | 48 mm | |
| Fastening | Clamp | |
| Width | 15 mm | |
| Finish | Bright | |
| Standards/Approvals | RoHs and Reach, ANSI | |
| Series | MCL | |
| Bore Type | Clamp Style | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Product Type Shaft Collar | ||
Bore Size 28 mm | ||
One/Two Piece One Piece | ||
Material 316 Stainless Steel | ||
Single/Double Wide Single Wide | ||
Outside Diameter 48 mm | ||
Fastening Clamp | ||
Width 15 mm | ||
Finish Bright | ||
Standards/Approvals RoHs and Reach, ANSI | ||
Series MCL | ||
Bore Type Clamp Style | ||
- COO (Country of Origin):
- US

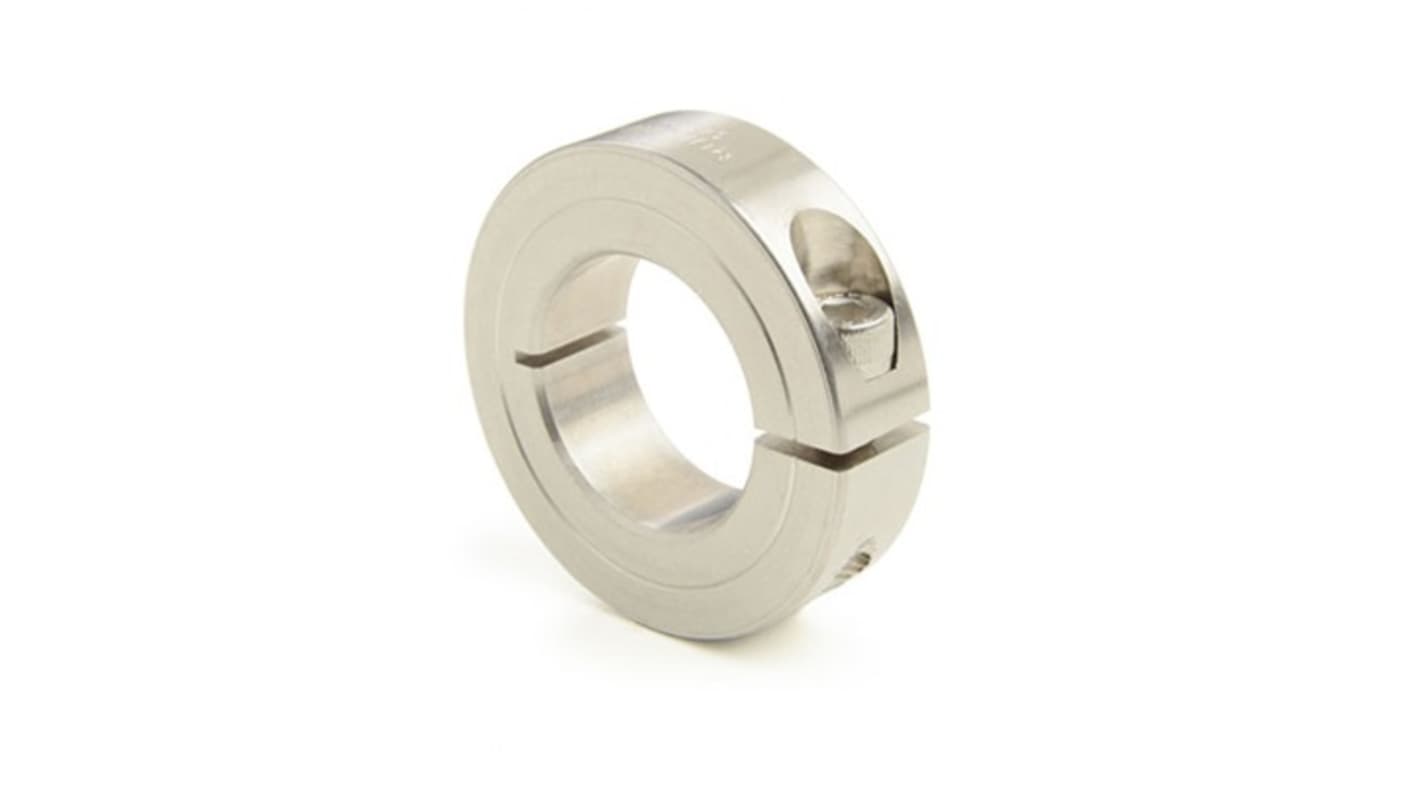

The Ruland Shaft collar has a clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. It is commonly used for guiding, spacing, stopping, mounting, and component alignment. Equipment benefit from the tightly controlled face to bore perpendicularity. Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings.
Features clamping elements that provide exceptional grip on the shaft
Constructed from high quality materials for enhanced durability
Designed for easy installation saving valuable time during setup
Provides superior torque transmission for demanding applications
