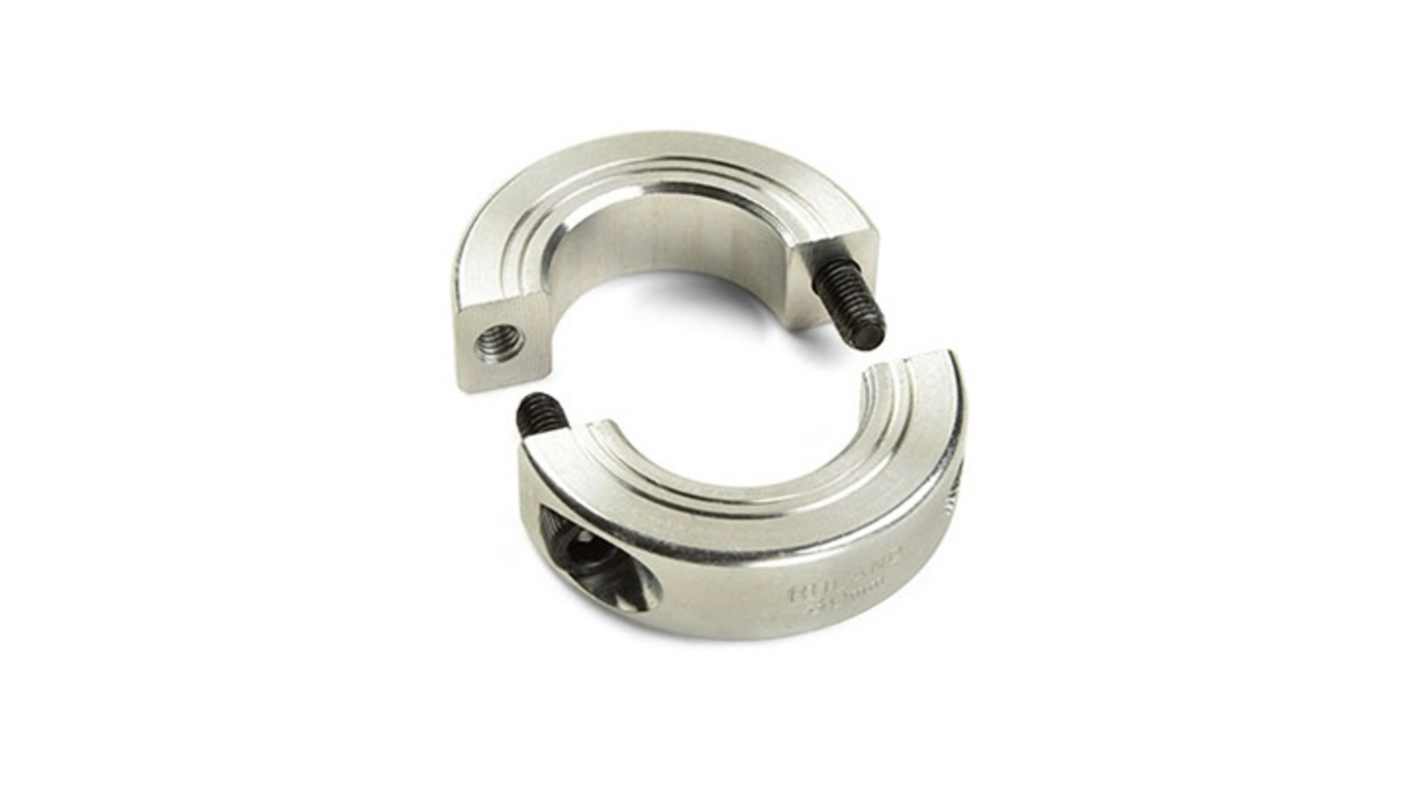

Ruland Shaft Collar, Two Piece, Clamp, OD 42 mm OD, W 15 mm, Aluminium
- RS Stock No.:
- 615-791
- Mfr. Part No.:
- MSPB-21-A
- Brand:
- Ruland
Subtotal (1 unit)*
£19.93
(exc. VAT)
£23.92
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £19.93 |
*price indicative
- RS Stock No.:
- 615-791
- Mfr. Part No.:
- MSPB-21-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Product Type | Shaft Collar | |
| Bore Size | 21 mm | |
| One/Two Piece | Two Piece | |
| Material | Aluminium | |
| Single/Double Wide | Double Wide | |
| Outside Diameter | 42 mm | |
| Fastening | Clamp | |
| Width | 15 mm | |
| Finish | Non-Plated, Bright | |
| Standards/Approvals | RoHs and Reach, DIN 91 1.9 | |
| Series | MSPB | |
| Bore Type | Clamp Style | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Product Type Shaft Collar | ||
Bore Size 21 mm | ||
One/Two Piece Two Piece | ||
Material Aluminium | ||
Single/Double Wide Double Wide | ||
Outside Diameter 42 mm | ||
Fastening Clamp | ||
Width 15 mm | ||
Finish Non-Plated, Bright | ||
Standards/Approvals RoHs and Reach, DIN 91 1.9 | ||
Series MSPB | ||
Bore Type Clamp Style | ||
The Ruland Shaft collar has a balanced design with opposing screws for use in high RPM applications such as those found in motors and gearboxes. The clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. It is commonly used for guiding, spacing, stopping, mounting, and component alignment. Halves are mated throughout the manufacturing process for proper fit and alignment. Forged screws test beyond DIN 912 12.9 standards to ensure maximum holding power.
Manufactured from high grade materials for enhanced longevity
Designed to provide precise alignment ensuring optimal performance
Lightweight yet strong allowing for easy handling without compromising strength
Corrosion resistant finish increases lifespan in demanding environments
User friendly design contributes to quick and hassle free installation
