Ruland Shaft Collar, Two Piece, Clamp, OD 54 mm OD, W 15 mm, Aluminium
- RS Stock No.:
- 615-421
- Mfr. Part No.:
- LVO-OF-MSP-30-A
- Brand:
- Ruland
Subtotal (1 unit)*
£60.20
(exc. VAT)
£72.24
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 02 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £60.20 |
*price indicative
- RS Stock No.:
- 615-421
- Mfr. Part No.:
- LVO-OF-MSP-30-A
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Product Type | Shaft Collar | |
| Bore Size | 30 mm | |
| One/Two Piece | Two Piece | |
| Material | Aluminium | |
| Single/Double Wide | Single Wide | |
| Outside Diameter | 54 mm | |
| Fastening | Clamp | |
| Width | 15 mm | |
| Finish | Bright | |
| Series | LVO-OF-MSP | |
| Standards/Approvals | RoHs and Reach | |
| Bore Type | Clamping Lever | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Product Type Shaft Collar | ||
Bore Size 30 mm | ||
One/Two Piece Two Piece | ||
Material Aluminium | ||
Single/Double Wide Single Wide | ||
Outside Diameter 54 mm | ||
Fastening Clamp | ||
Width 15 mm | ||
Finish Bright | ||
Series LVO-OF-MSP | ||
Standards/Approvals RoHs and Reach | ||
Bore Type Clamping Lever | ||

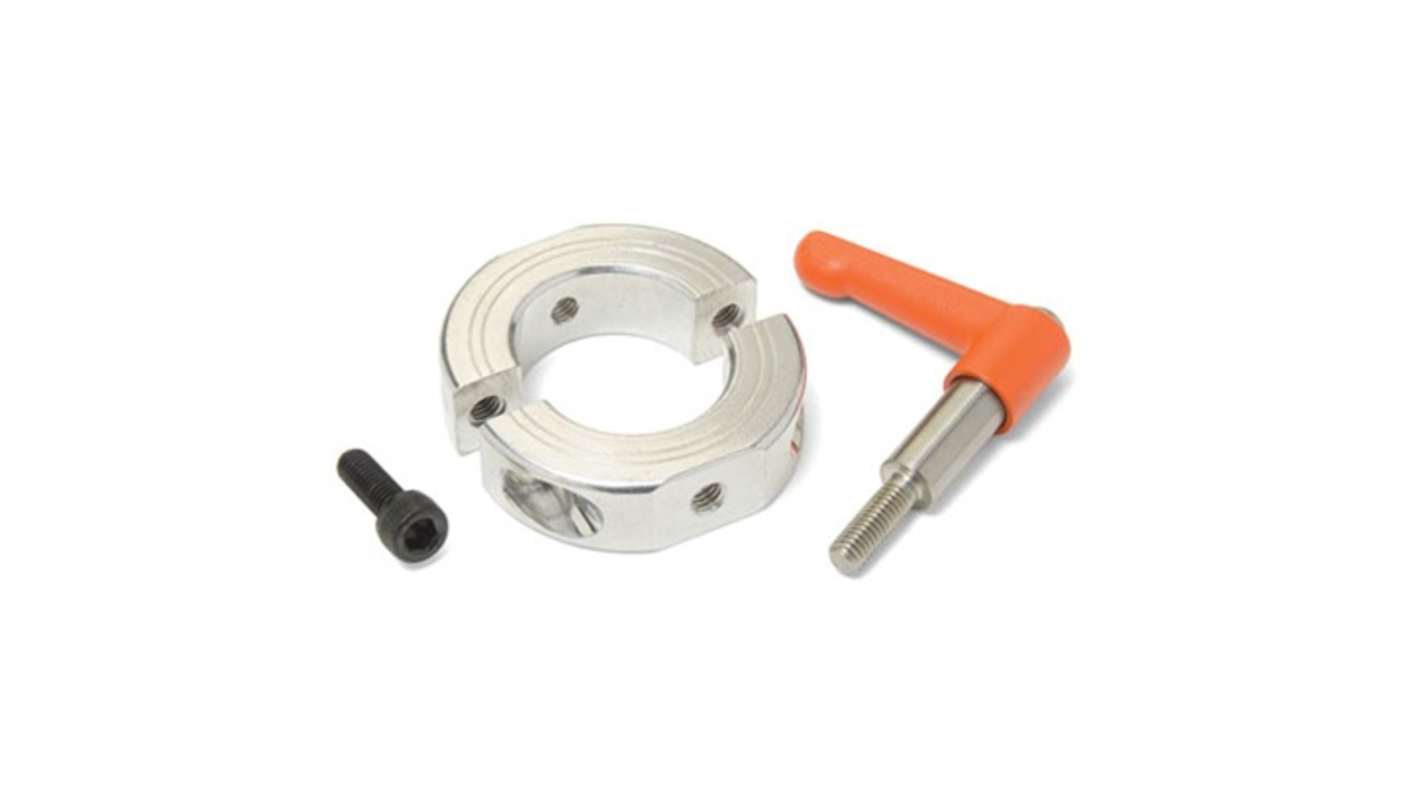

The Ruland Mountable quick clamping shaft collar with clamping lever has OD flats and tapped holes for mounting shaft collars to each other or adjacent components. The clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. The threaded stud on the lever is used in place of standard collar hardware. Two-piece shafts collars can be assembled in-lace without the need to remove other components.
Exceptional accuracy enhances operational precision in motion systems
Manufactured from premium materials ensuring long lasting durability
Engineered for seamless integration into diverse applications
Optimised design reduces the possibility of operational downtime
Versatile performance caters to various industrial requirements
Lightweight and compact facilitating easier installation and handling
Superior load capacity supports high stress applications effectively
