Ruland Shaft Collar, One Piece, Clamp, OD 45 mm OD, W 15 mm, 303 Stainless Steel
- RS Stock No.:
- 614-518
- Mfr. Part No.:
- LVO-OF-MCL-25-SS
- Brand:
- Ruland
Subtotal (1 unit)*
£66.18
(exc. VAT)
£79.42
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £66.18 |
*price indicative
- RS Stock No.:
- 614-518
- Mfr. Part No.:
- LVO-OF-MCL-25-SS
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Bore Size | 25 mm | |
| Product Type | Shaft Collar | |
| One/Two Piece | One Piece | |
| Material | 303 Stainless Steel | |
| Single/Double Wide | Single Wide | |
| Outside Diameter | 45 mm | |
| Fastening | Clamp | |
| Threaded Bore Size | M6 | |
| Width | 15 mm | |
| Finish | Bright | |
| Series | LVO-OF-MCL | |
| Bore Type | Clamping Lever | |
| Standards/Approvals | RoHs and Reach | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Bore Size 25 mm | ||
Product Type Shaft Collar | ||
One/Two Piece One Piece | ||
Material 303 Stainless Steel | ||
Single/Double Wide Single Wide | ||
Outside Diameter 45 mm | ||
Fastening Clamp | ||
Threaded Bore Size M6 | ||
Width 15 mm | ||
Finish Bright | ||
Series LVO-OF-MCL | ||
Bore Type Clamping Lever | ||
Standards/Approvals RoHs and Reach | ||

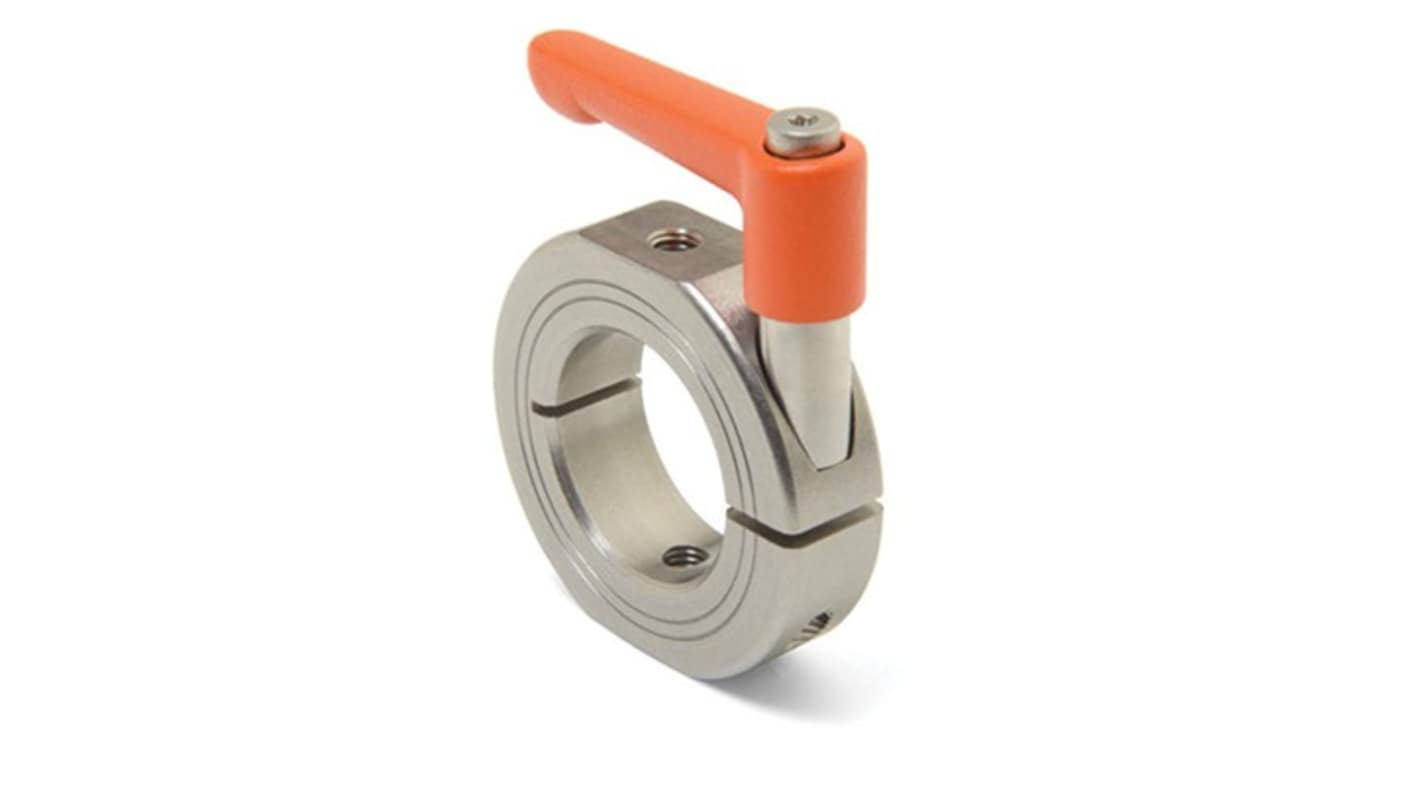

The Ruland Mountable quick clamping shaft collar with clamping lever has OD flats and tapped holes for mounting shaft collars to each other or adjacent components. The clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. The threaded stud on the lever is used in place of standard collar hardware. When combined, the two parts create a shaft collar that requires no tools to install, remove, or reposition.
Designed for seamless integration into various systems
Provides outstanding stability during operation
Manufactured from premium materials for durability
Facilitates easy installation and maintenance
Ensures precise movement to enhance operational efficiency
Resistant to wear and tear extending service life
