Ruland Shaft Collar, Two Piece, Clamp, OD 42 mm OD, W 15 mm, Plastic
- RS Stock No.:
- 614-422
- Mfr. Part No.:
- LVO-MSP-22-P
- Brand:
- Ruland
Subtotal (1 unit)*
£40.94
(exc. VAT)
£49.13
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £40.94 |
*price indicative
- RS Stock No.:
- 614-422
- Mfr. Part No.:
- LVO-MSP-22-P
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Bore Size | 22 mm | |
| Product Type | Shaft Collar | |
| One/Two Piece | Two Piece | |
| Material | Plastic | |
| Single/Double Wide | Single Wide | |
| Outside Diameter | 42 mm | |
| Fastening | Clamp | |
| Threaded Bore Size | M6 | |
| Width | 15 mm | |
| Finish | Plain | |
| Bore Type | Clamping Lever | |
| Series | LVO-MSP | |
| Standards/Approvals | RoHs and Reach | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Bore Size 22 mm | ||
Product Type Shaft Collar | ||
One/Two Piece Two Piece | ||
Material Plastic | ||
Single/Double Wide Single Wide | ||
Outside Diameter 42 mm | ||
Fastening Clamp | ||
Threaded Bore Size M6 | ||
Width 15 mm | ||
Finish Plain | ||
Bore Type Clamping Lever | ||
Series LVO-MSP | ||
Standards/Approvals RoHs and Reach | ||

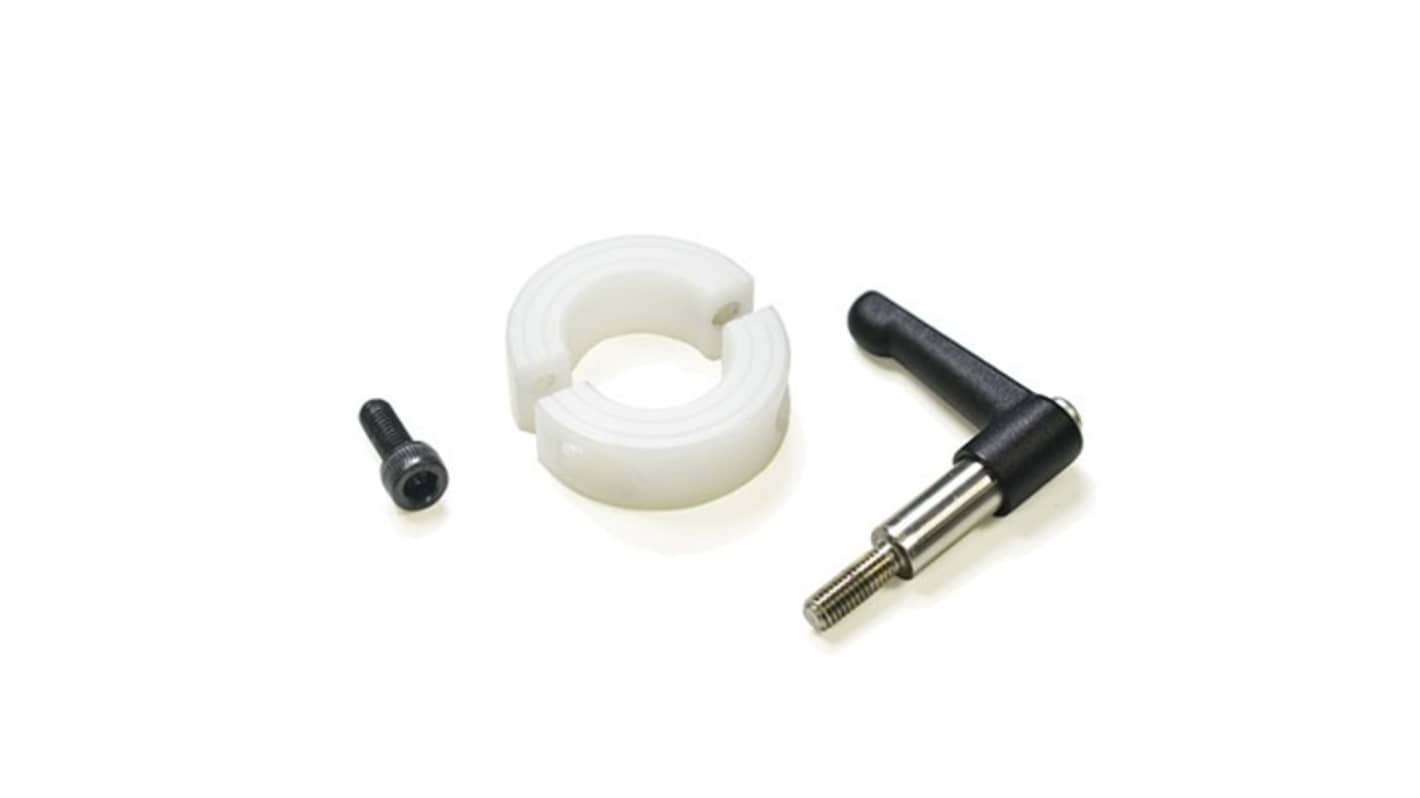

The Ruland Quick clamping shaft collar with clamping lever has a clamp style design that does not mar the shaft, is easy to remove, and is indefinitely adjustable. The threaded stud on the lever is used in place of standard collar hardware. Two-piece shafts collars can be assembled in-lace without the need to remove other components. Ruland mates halves throughout the manufacturing process for proper fit, alignment, and holding power.
Engineered for superior load capacity and mechanical stability
Facilitates smooth rotational movement reducing wear and tear
Offers resistance to corrosion prolonging product life
Designed for easy installation minimising setup time
Allows for precise alignment enhancing overall system performance
Lightweight design enables efficient handling and transport
Manufactured following strict quality standards for assured reliability
