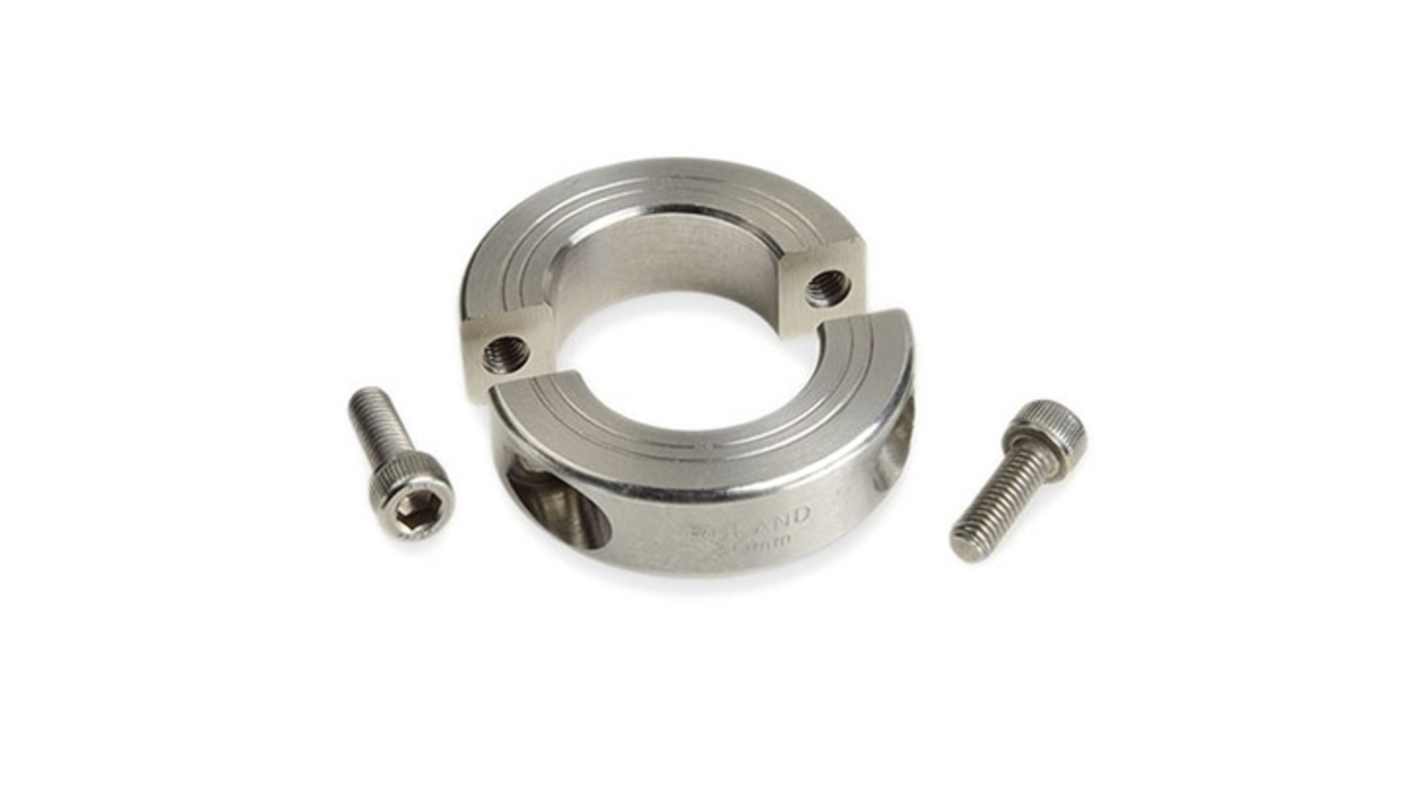

Ruland Shaft Collar, Two Piece, Clamp, OD 48 mm OD, W 15 mm, 303 Stainless Steel
- RS Stock No.:
- 614-034
- Mfr. Part No.:
- MSP-26-SS
- Brand:
- Ruland
Subtotal (1 unit)*
£38.62
(exc. VAT)
£46.34
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £38.62 |
*price indicative
- RS Stock No.:
- 614-034
- Mfr. Part No.:
- MSP-26-SS
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Bore Size | 26 mm | |
| Product Type | Shaft Collar | |
| One/Two Piece | Two Piece | |
| Material | 303 Stainless Steel | |
| Single/Double Wide | Double Wide | |
| Outside Diameter | 48 mm | |
| Fastening | Clamp | |
| Width | 15 mm | |
| Finish | Bright, Non-Plated | |
| Standards/Approvals | DIN 91 1.9, RoHs and Reach | |
| Series | MSP | |
| Bore Type | Clamp Style | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Bore Size 26 mm | ||
Product Type Shaft Collar | ||
One/Two Piece Two Piece | ||
Material 303 Stainless Steel | ||
Single/Double Wide Double Wide | ||
Outside Diameter 48 mm | ||
Fastening Clamp | ||
Width 15 mm | ||
Finish Bright, Non-Plated | ||
Standards/Approvals DIN 91 1.9, RoHs and Reach | ||
Series MSP | ||
Bore Type Clamp Style | ||
- COO (Country of Origin):
- US
The Ruland Shaft collar has a clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. It is commonly used for guiding, spacing, stopping, mounting, and component alignment. Equipment benefit from the tightly controlled face to bore perpendicularity. Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings.
Designed to enhance alignment accuracy in mechanical assemblies
Constructed from robust materials for superior longevity
Facilitates smooth movement optimising system efficiency
Lightweight yet strong adding minimal weight to your assembly
Easy to install reducing downtime during setup and maintenance
