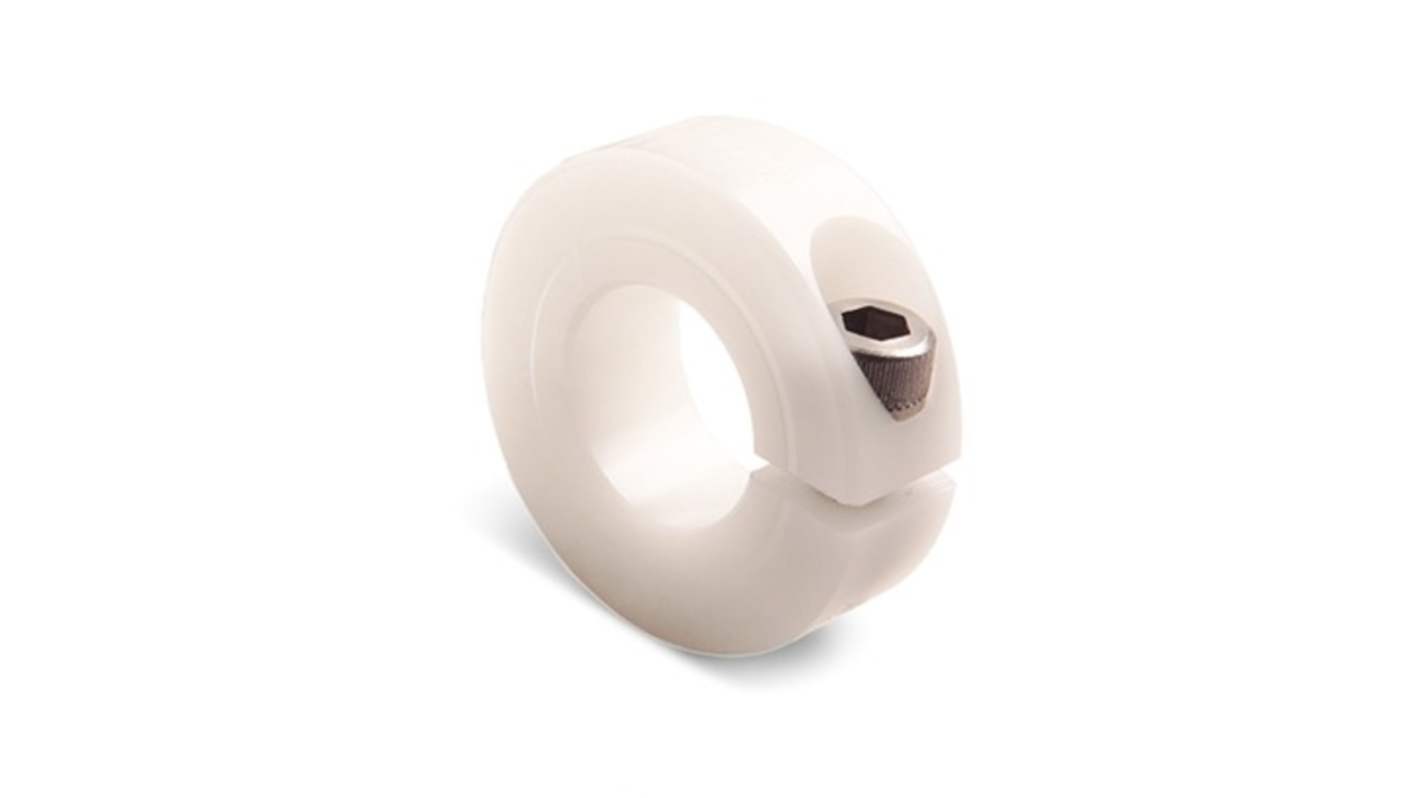

Ruland Collar, One Piece, Clamp Screw, Bore 7mm, OD 18mm, W 9mm, Plastic
- RS Stock No.:
- 605-268
- Mfr. Part No.:
- MCL-7-P
- Brand:
- Ruland
Subtotal (1 unit)*
£8.55
(exc. VAT)
£10.26
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 06 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £8.55 |
*price indicative
- RS Stock No.:
- 605-268
- Mfr. Part No.:
- MCL-7-P
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Ruland | |
Shaft Diameter | 7mm | |
One/Two Piece | One Piece | |
Material | Plastic | |
Single/Double Wide | Single | |
Outside Diameter | 18mm | |
Fastening | Clamp Screw | |
Width | 9mm | |
Select all | ||
---|---|---|
Brand Ruland | ||
Shaft Diameter 7mm | ||
One/Two Piece One Piece | ||
Material Plastic | ||
Single/Double Wide Single | ||
Outside Diameter 18mm | ||
Fastening Clamp Screw | ||
Width 9mm | ||
- COO (Country of Origin):
- US
The Ruland One piece shaft collar has clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable. It is commonly used for guiding, spacing, stopping, mounting, and component alignment. Equipment manufacturers benefit from the tightly controlled face to bore perpendicularity (TIR of ≤ .05mm). Perpendicularity is critical for alignment when the shaft collar is used as a load bearing face, mechanical stop, or for mounting components such as gears or bearings.
RoHS3 and REACH compliant
Forged screws test beyond DIN 912 12.9 standards
Manufactured from solid bar stock sourced from select North American mills
Machined to a fine burr free finish
Forged screws test beyond DIN 912 12.9 standards
Manufactured from solid bar stock sourced from select North American mills
Machined to a fine burr free finish
