Ruland Collar, One Piece, Clamp Screw, OD 36 mm OD, W 13 mm, Stainless Steel
- RS Stock No.:
- 604-756
- Mfr. Part No.:
- FHD-MCL-17-SS
- Brand:
- Ruland
Subtotal (1 unit)*
£44.98
(exc. VAT)
£53.98
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £44.98 |
*price indicative
- RS Stock No.:
- 604-756
- Mfr. Part No.:
- FHD-MCL-17-SS
- Brand:
- Ruland
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Ruland | |
| Bore Size | 17 mm | |
| Product Type | Collar | |
| One/Two Piece | One Piece | |
| Material | Stainless Steel | |
| Single/Double Wide | Single Wide | |
| Outside Diameter | 36 mm | |
| Fastening | Clamp Screw | |
| Width | 13 mm | |
| Finish | Bright, Non-Plated | |
| Standards/Approvals | DIN 91 1.9 (screw), RoHs and Reach | |
| Bore Type | Clamp Style | |
| Series | FHD-MCL | |
| Select all | ||
|---|---|---|
Brand Ruland | ||
Bore Size 17 mm | ||
Product Type Collar | ||
One/Two Piece One Piece | ||
Material Stainless Steel | ||
Single/Double Wide Single Wide | ||
Outside Diameter 36 mm | ||
Fastening Clamp Screw | ||
Width 13 mm | ||
Finish Bright, Non-Plated | ||
Standards/Approvals DIN 91 1.9 (screw), RoHs and Reach | ||
Bore Type Clamp Style | ||
Series FHD-MCL | ||
- COO (Country of Origin):
- US

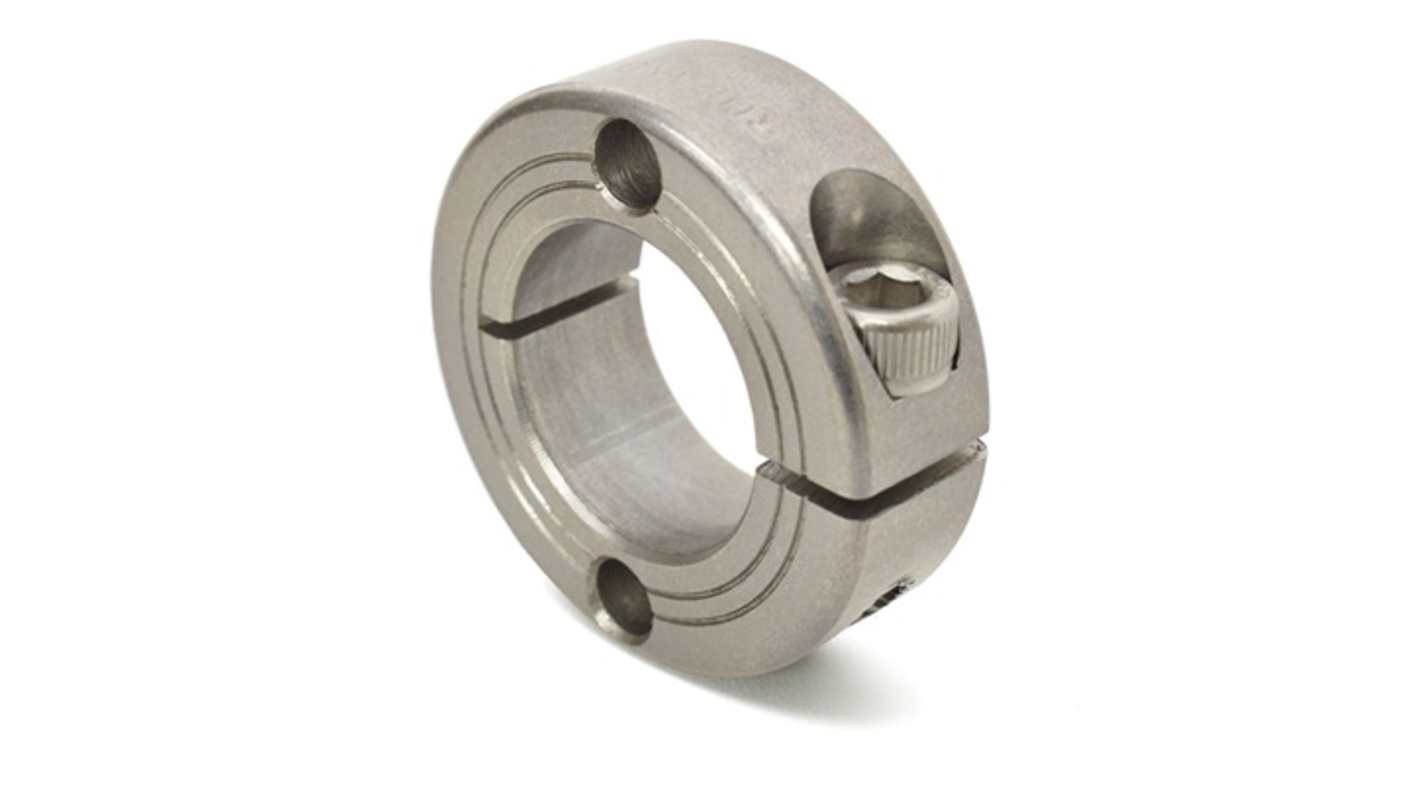

The Ruland One piece shaft collar has drilled holes for mounting shaft collars to sprockets, pulleys, metallic plates, or other components. Drilled holes give the user flexibility to choose inch or metric mounting hardware that best suits the application. The clamp style design does not mar the shaft, is easy to remove, and is indefinitely adjustable.
RoHS3 and REACH compliant
Forged screws test beyond DIN 912 12.9 standards
303 stainless steel with consistent corrosion resistance hardware material
