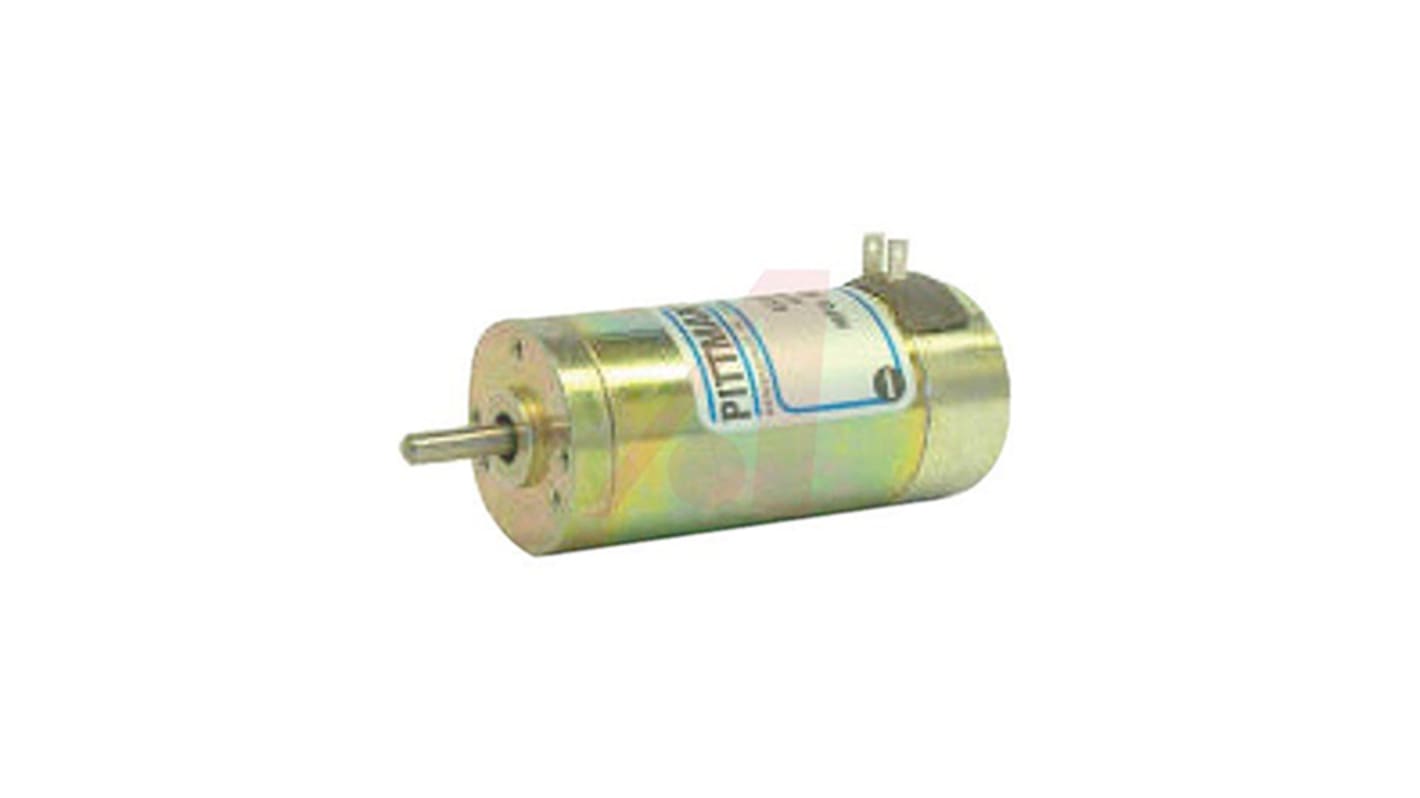

PITTMAN AMETEK TIP 12 V Servo Motor, 6151 rpm, 43 mNm Max Output Torque, 4mm Shaft Diameter
- RS Stock No.:
- 921-3747
- Mfr. Part No.:
- 9234S004-R1
- Brand:
- PITTMAN AMETEK TIP
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 921-3747
- Mfr. Part No.:
- 9234S004-R1
- Brand:
- PITTMAN AMETEK TIP
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | PITTMAN AMETEK TIP | |
| Maximum Output Torque | 43 mNm | |
| Supply Voltage | 12 V | |
| Output Speed | 6151 rpm | |
| Shaft Diameter | 4mm | |
| Length | 61mm | |
| Width | 40mm | |
| Current Rating | 330 mA | |
| Series | 9000 | |
| Standards Met | RoHS Compliant | |
| Select all | ||
|---|---|---|
Brand PITTMAN AMETEK TIP | ||
Maximum Output Torque 43 mNm | ||
Supply Voltage 12 V | ||
Output Speed 6151 rpm | ||
Shaft Diameter 4mm | ||
Length 61mm | ||
Width 40mm | ||
Current Rating 330 mA | ||
Series 9000 | ||
Standards Met RoHS Compliant | ||
Non Compliant
- COO (Country of Origin):
- US
9000 LO-COG Series Servo Motors
These revolutionary Pittman Ametek DC Servo motors offer a smooth, quiet operation and long life. An innovative cartridge brush assembly reduces audible and electrical noise and significantly improves brush life. By maintaining optimum brush force throughout the life of the motor, it ensures a longer life and excellent suitability for your application. All models are highly reliable and excellent quality.
