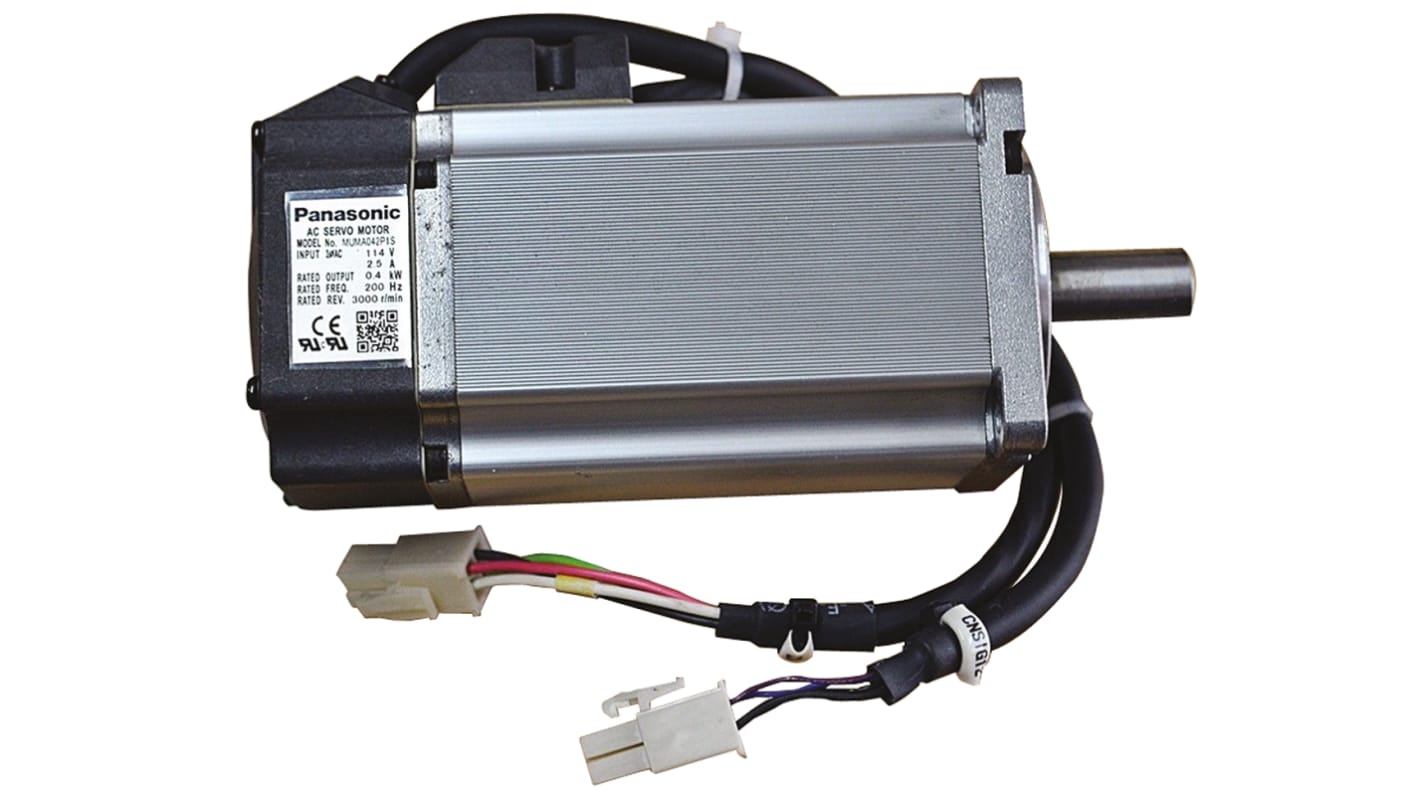

Panasonic 200 V 200 W Servo Motor, 5000 rpm, 1.91 Nm Max Output Torque, 50mm Shaft Diameter
- RS Stock No.:
- 810-2836
- Mfr. Part No.:
- MUMA022P1T
- Brand:
- Panasonic
Discontinued
- RS Stock No.:
- 810-2836
- Mfr. Part No.:
- MUMA022P1T
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Maximum Output Torque | 1.91 Nm | |
| Supply Voltage | 200 V | |
| Output Speed | 5000 rpm | |
| Power Rating | 200 W | |
| Shaft Diameter | 50mm | |
| Length | 129mm | |
| Width | 60mm | |
| Depth | 60mm | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Maximum Output Torque 1.91 Nm | ||
Supply Voltage 200 V | ||
Output Speed 5000 rpm | ||
Power Rating 200 W | ||
Shaft Diameter 50mm | ||
Length 129mm | ||
Width 60mm | ||
Depth 60mm | ||
- COO (Country of Origin):
- JP
MINAS E Compact Servo Motors
The MINAS E series is a compact servo motor that can be used on a wide variety of different applications such as machine tool drives, robots and handling systems, packaging systems and material processing machines.
Ultra compact design
Exclusively designed for positioning control
User friendly console makes the setup easy
High functionality real time auto-gain tuning enables adjustment free operation
Built-in notch filter and adaptive filter for reduced vibration
Damping control function suppresses vibration during acceleration/deceleration
Motor rated output options of 50W, 200W and 400W
5000 rpm
Exclusively designed for positioning control
User friendly console makes the setup easy
High functionality real time auto-gain tuning enables adjustment free operation
Built-in notch filter and adaptive filter for reduced vibration
Damping control function suppresses vibration during acceleration/deceleration
Motor rated output options of 50W, 200W and 400W
5000 rpm
Standards
IEC60034-1, IEC60034-5, UL1004 CSA22.2 NO.100.
