Omron 400V 2 kW Servo Motor, 2000rpm, 9.55 Nm Max Output Torque, 35 mm Shaft Diameter
- RS Stock No.:
- 215-7648
- Mfr. Part No.:
- R88M-KH2K020F-BS1
- Brand:
- Omron
Subtotal (1 unit)*
£2,639.13
(exc. VAT)
£3,166.96
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 15 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £2,639.13 |
*price indicative
- RS Stock No.:
- 215-7648
- Mfr. Part No.:
- R88M-KH2K020F-BS1
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Servo Motor | |
| Maximum Output Torque | 9.55Nm | |
| Sub Type | AC Servo Motor | |
| Supply Voltage | 400V | |
| Output Speed | 2000rpm | |
| Power Rating | 2kW | |
| Stall Torque | 28.6Nm | |
| Mount Type | Flange | |
| Shaft Diameter | 35mm | |
| Shaft Length | 76.8mm | |
| Length | 286mm | |
| Width | 176mm | |
| Depth | 228mm | |
| Current Rating | 5.5A | |
| Series | Accurax G5 | |
| Standards/Approvals | No | |
| Rotor Inertia | 62.9kg.m² | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Servo Motor | ||
Maximum Output Torque 9.55Nm | ||
Sub Type AC Servo Motor | ||
Supply Voltage 400V | ||
Output Speed 2000rpm | ||
Power Rating 2kW | ||
Stall Torque 28.6Nm | ||
Mount Type Flange | ||
Shaft Diameter 35mm | ||
Shaft Length 76.8mm | ||
Length 286mm | ||
Width 176mm | ||
Depth 228mm | ||
Current Rating 5.5A | ||
Series Accurax G5 | ||
Standards/Approvals No | ||
Rotor Inertia 62.9kg.m² | ||

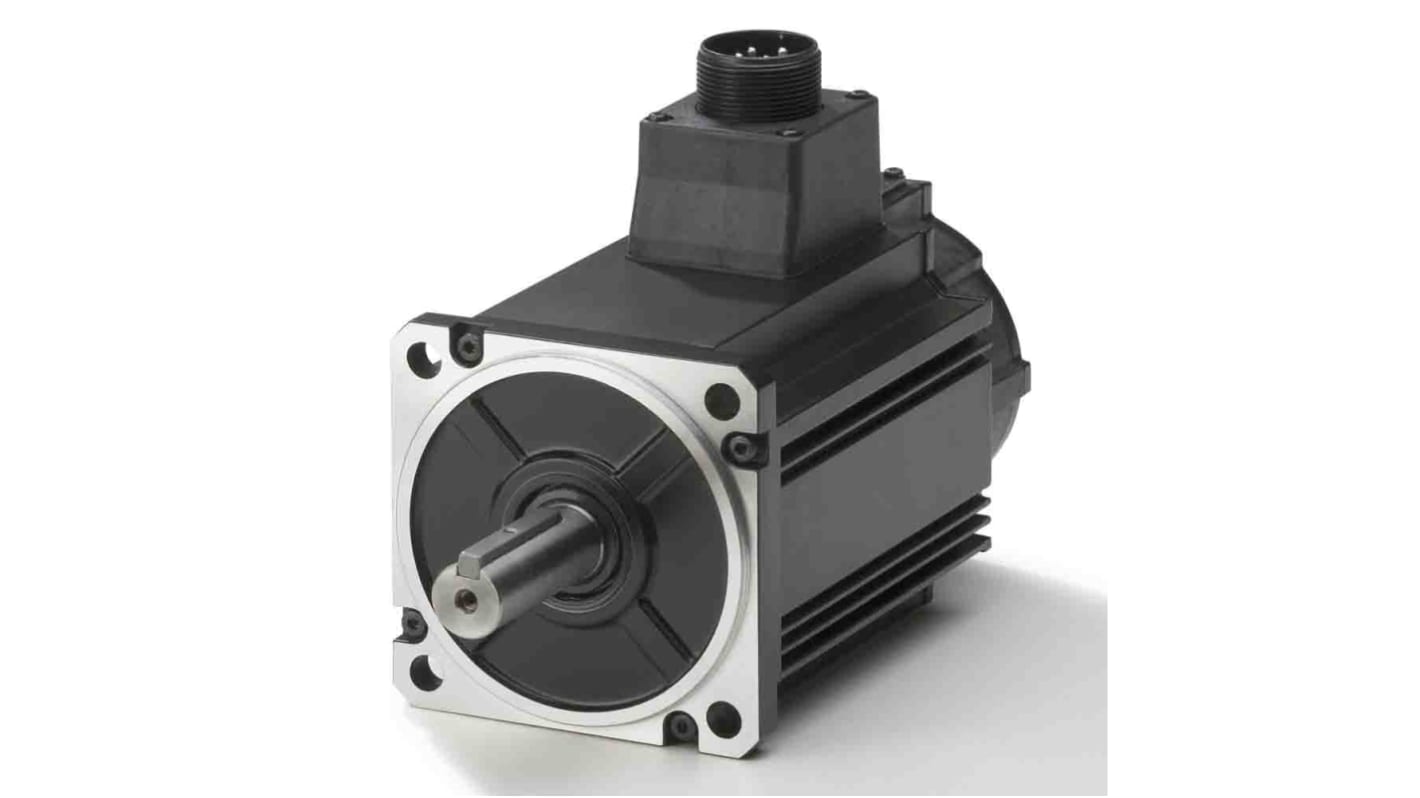

The Omron G5 series high inertia AC servo motor ultra-light and compact size motor has standard and high inertia. It has low speed ripple and low torque ripple due to low torque cogging. It has high resolution serial encoder provided by 20 bits encoder with IP67 protection. It has rated output of 2.0 kW and rated speed 2000 rpm.
Rated torque 9.55 Nm
