Omron 400V 1.5 kW Servo Motor, 2000rpm, 7.16 Nm Max Output Torque, 22 mm Shaft Diameter
- RS Stock No.:
- 215-7645
- Mfr. Part No.:
- R88M-KH1K520F-S1
- Brand:
- Omron
Subtotal (1 unit)*
£1,578.63
(exc. VAT)
£1,894.36
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 16 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,578.63 |
*price indicative
- RS Stock No.:
- 215-7645
- Mfr. Part No.:
- R88M-KH1K520F-S1
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Servo Motor | |
| Maximum Output Torque | 7.16Nm | |
| Sub Type | AC Servo Motor | |
| Supply Voltage | 400V | |
| Output Speed | 2000rpm | |
| Power Rating | 1.5kW | |
| Stall Torque | 21.5Nm | |
| Mount Type | Flange | |
| Shaft Diameter | 22mm | |
| Shaft Length | 64mm | |
| Length | 260.5mm | |
| Width | 130mm | |
| Depth | 183mm | |
| Current Rating | 4.7A | |
| Series | Accurax G5 | |
| Rotor Inertia | 37.1kg.m² | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Servo Motor | ||
Maximum Output Torque 7.16Nm | ||
Sub Type AC Servo Motor | ||
Supply Voltage 400V | ||
Output Speed 2000rpm | ||
Power Rating 1.5kW | ||
Stall Torque 21.5Nm | ||
Mount Type Flange | ||
Shaft Diameter 22mm | ||
Shaft Length 64mm | ||
Length 260.5mm | ||
Width 130mm | ||
Depth 183mm | ||
Current Rating 4.7A | ||
Series Accurax G5 | ||
Rotor Inertia 37.1kg.m² | ||
Standards/Approvals No | ||

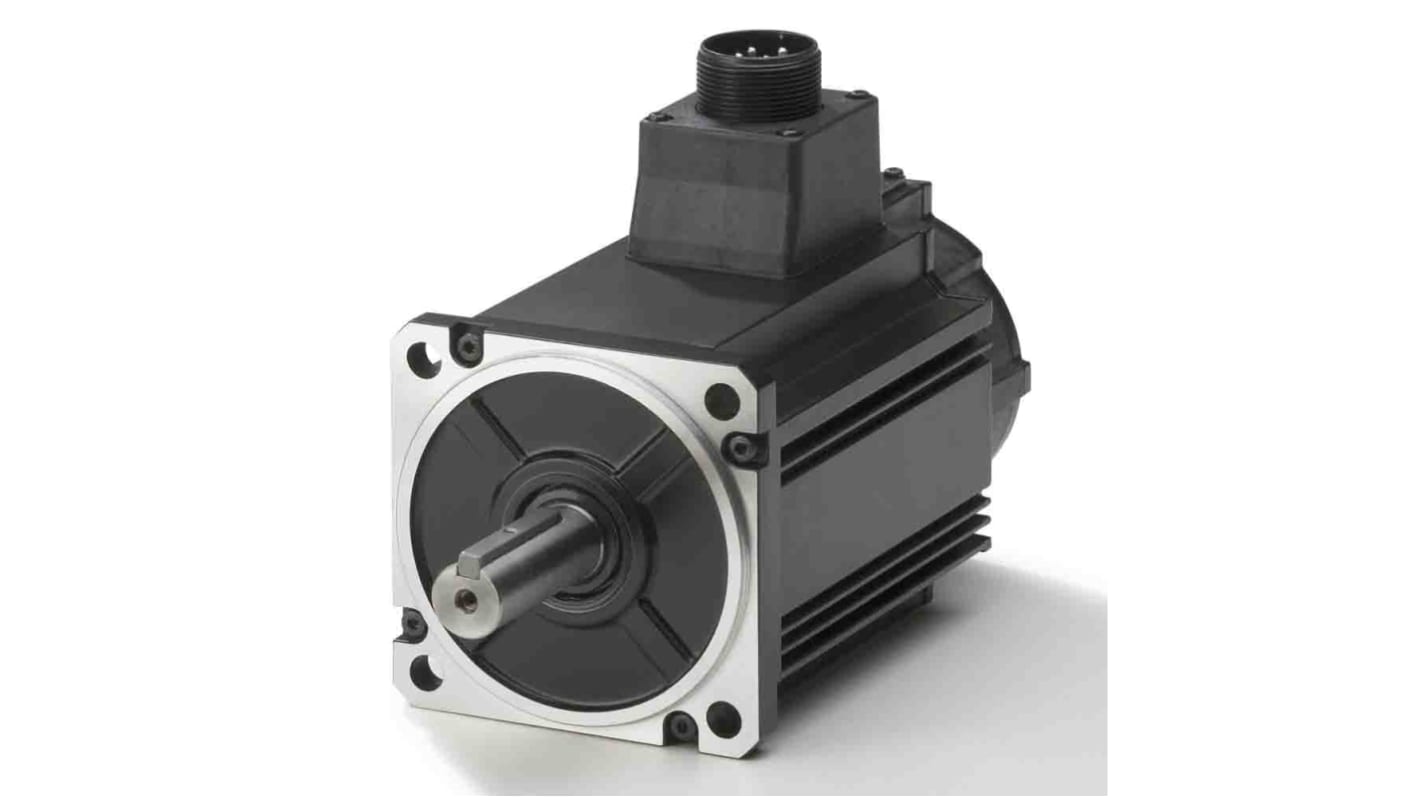

The Omron G5 series high inertia AC servo motor ultra-light and compact size motor has standard and high inertia. It has low speed ripple and low torque ripple due to low torque cogging. It has high resolution serial encoder provided by 20 bits encoder with IP67 protection. It has rated output of 1.5 kW and rated speed 2000 rpm.
Rated torque 7.16 Nm
