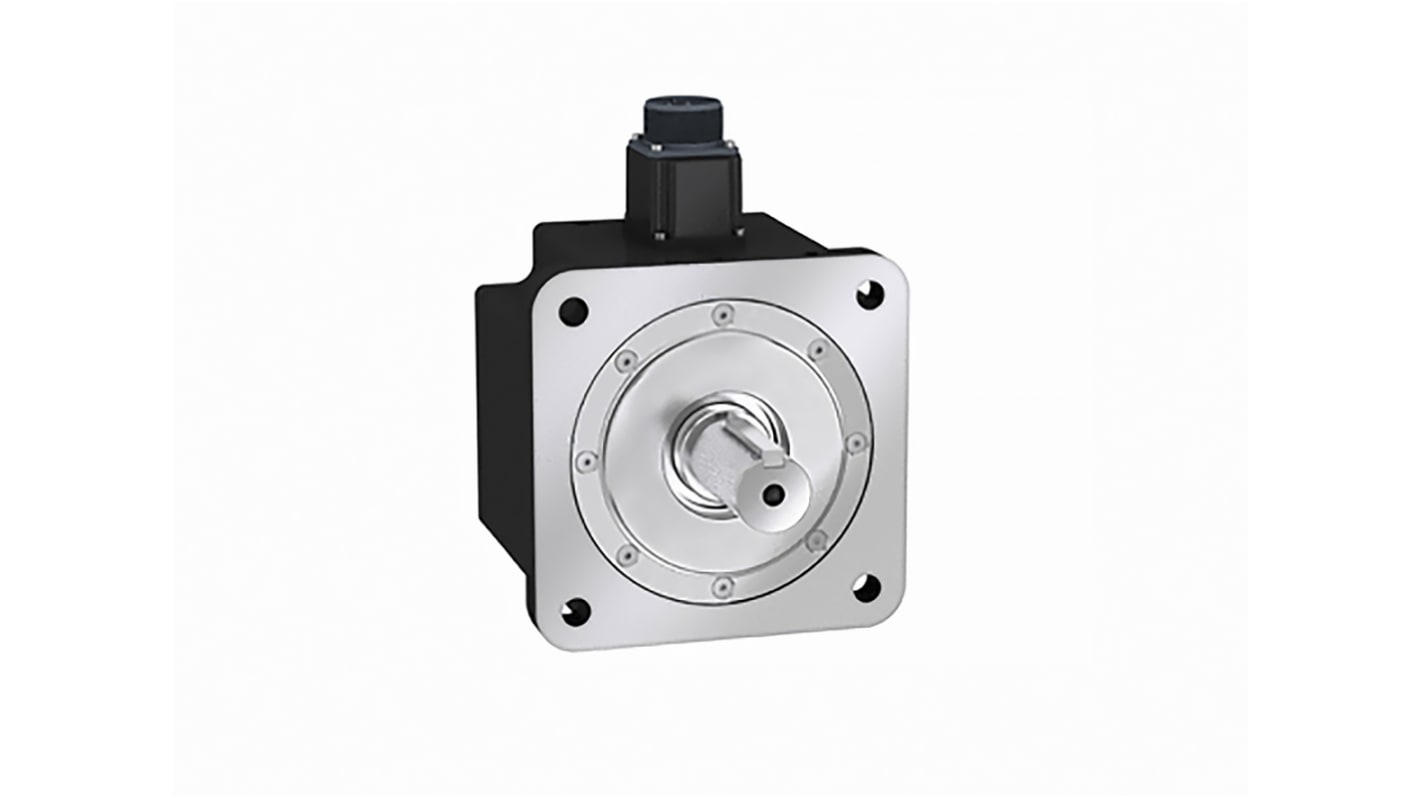

Schneider Electric 220 V dc 3 kW Servo Motor, 3000 rpm, 57.29 Nm Max Output Torque, 35mm Shaft Diameter

View all Servo Motors

Subtotal (1 unit)*

£1,275.57

(exc. VAT)

£1,530.68

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 05 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£1,275.57

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
111-0831
Mfr. Part No.:
BCH2MR3013CA6C
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Maximum Output Torque

57.29 Nm

Supply Voltage

220 V dc

Output Speed

3000 rpm

Power Rating

3 kW

Stall Torque

19.1Nm

Shaft Diameter

35mm

Length

281mm

Width

180mm

Depth

245mm

Current Rating

58.4 A rms

Series

Lexium

Rotor Inertia

53.56kg.cm²

Better World Product

Yes

Better World Verification

Green Premium

BCH2 Servo Motors


Schneider Electric BCH2 Servo Motors are synchronous AC servo motors that are ideal for high performance applications. Equipped with high resolution (20-bit) single-turn absolute encoder as standard.

Available in a range of flange sizes
Equipped with an absolute encoder
Three available types of motor inertia

Schneider Electric BCH2MR3013CA6C


This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 3000RPM and IP65 parallel keyed shaft without holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of torque (1000RPM/1500RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 16.49A and a continuous power of 3000W. The shaft dimensions are 35mm (Diameter) x 79mm (Length). It is furnished with MIL connector for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 202mm (Length) x 180mm (Width), centring collar dimensions are 4mm (Depth) x 114.3mm (Diameter) with 200mm circle diameter of the mounting hole. It weighs 18.5kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 180mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.


Schneider Electric Lexium 28


The Lexium 28 range of servo drives and motors that are suitable for a wide range of positioning and precision speed control applications including, printing, packaging, winding and unwinding as well as materials handling.

The servo drives cover a wide range of power ratings from 0.05kW to 4.5kW, with two different types of power, single phase and three phase.
