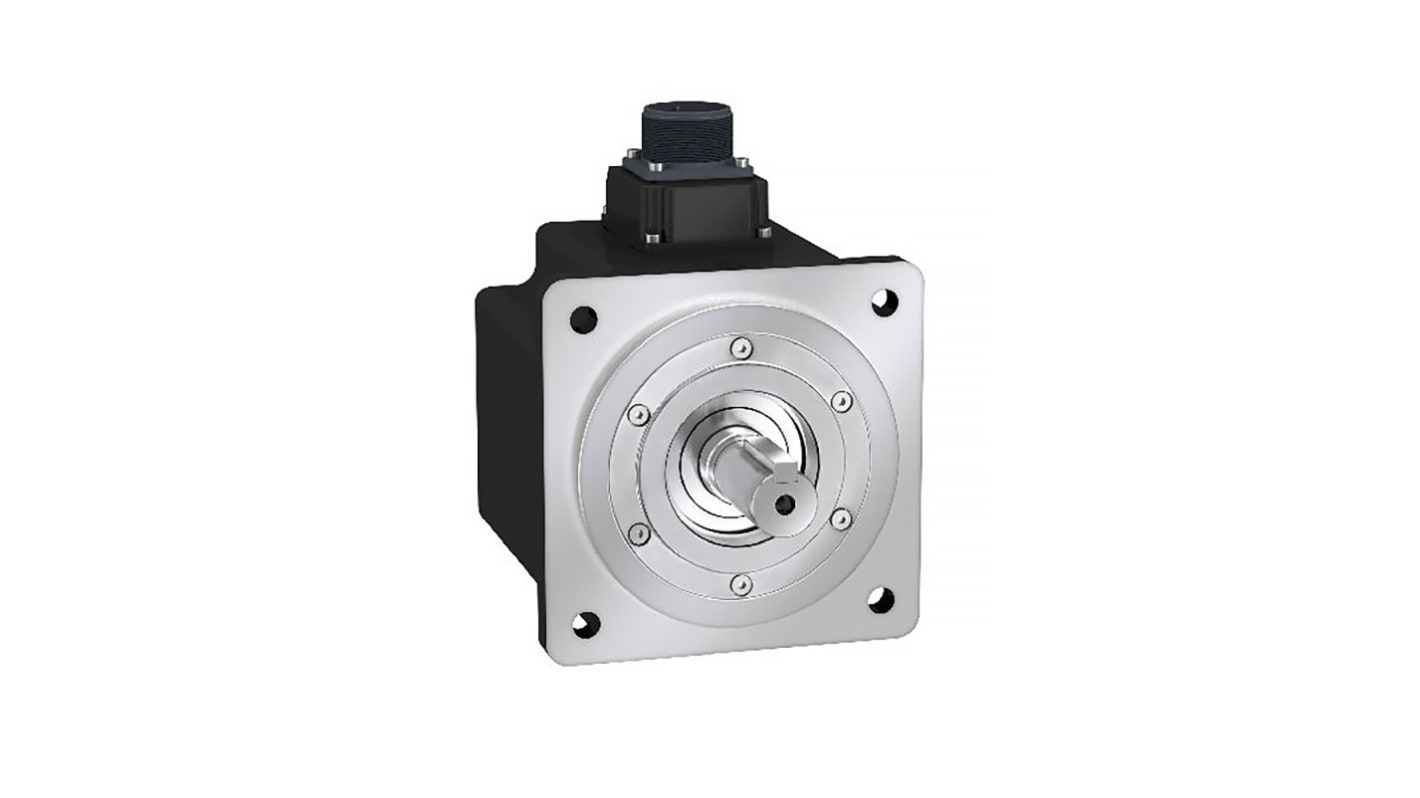

Schneider Electric 220 V dc 1.5 kW Servo Motor, 3000 rpm, 14.3 Nm Max Output Torque, 22mm Shaft Diameter

Subtotal (1 unit)*

£758.11

(exc. VAT)

£909.73

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
  • Plus 1 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£758.11

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
111-0826
Distrelec Article No.:
303-08-168
Mfr. Part No.:
BCH2MM1523CA6C
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Maximum Output Torque

14.3 Nm

Supply Voltage

220 V dc

Output Speed

3000 rpm

Power Rating

1.5 kW

Stall Torque

7.16Nm

Shaft Diameter

22mm

Length

222mm

Width

130mm

Depth

176mm

Current Rating

20.31 A rms

Series

Lexium

Rotor Inertia

9.7kg.cm²

Better World Product

Yes

Standards Met

RoHS Compliant

Better World Verification

Green Premium

BCH2 Servo Motors


Schneider Electric BCH2 Servo Motors are synchronous AC servo motors that are ideal for high performance applications. Equipped with high resolution (20-bit) single-turn absolute encoder as standard.

Available in a range of flange sizes
Equipped with an absolute encoder
Three available types of motor inertia

Schneider Electric BCH2MM1523CA6C


This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed of 3000RPM and IP65 parallel keyed shaft without holding brake. It is equipped with a 20bit single-turn absolute encoder, optimized in terms of torque and speed of rotation (2000RPM). It is a second generation servo motors suitable for a wide variety of applications due to the different levels of motor inertia offered. It has a rated supply voltage of 220V, a continuous stall current of 6.18A and a continuous power of 1500W. The shaft dimensions are 22mm (Diameter) x 55mm (Length). It is furnished with MIL connector for electrical connection. It is an IP50 (IM V3) and IP65 (IM B5, IM V1) rated product. Its dimensions are 167mm (Length) x 130mm (Width), centring collar dimensions are 8mm (Depth) x 110mm (Diameter) with 145mm circle diameter of the mounting hole. It weighs 7.6kg. This product is compatible with Lexium 28 and Lexium 26D servo drives. It supports Asian standard 130mm flange mount with a natural convection cooling system. Lexium 28 and Lexium BCH2, the optimized servo bundle for all motion control solutions are cost effective, energy efficient and embedded safety. Lexium 28 servo drives and Lexium BCH2 servo motors, optimized servo bundles for compact machines.

• Comes with four mounting holes for quick and convenient assembly
• IP65-rated shaft is dust-tight and protected against water jets from any direction
• Natural convection cooling saves system space as there's no need for additional fans
• Wide ambient operating temperature range between -20°C and +40°C for use in demanding settings

Applications


• Packaging facilities
• Material handling
• Robotics systems
• Food and beverage industry

How big is this servo drive?


The unit has a space-saving design to help optimise your productivity. It's 167mm long by 130mm wide and its centering collar is 8mm deep and 110mm in diameter.


Schneider Electric Lexium 28


The Lexium 28 range of servo drives and motors that are suitable for a wide range of positioning and precision speed control applications including, printing, packaging, winding and unwinding as well as materials handling.

The servo drives cover a wide range of power ratings from 0.05kW to 4.5kW, with two different types of power, single phase and three phase.
