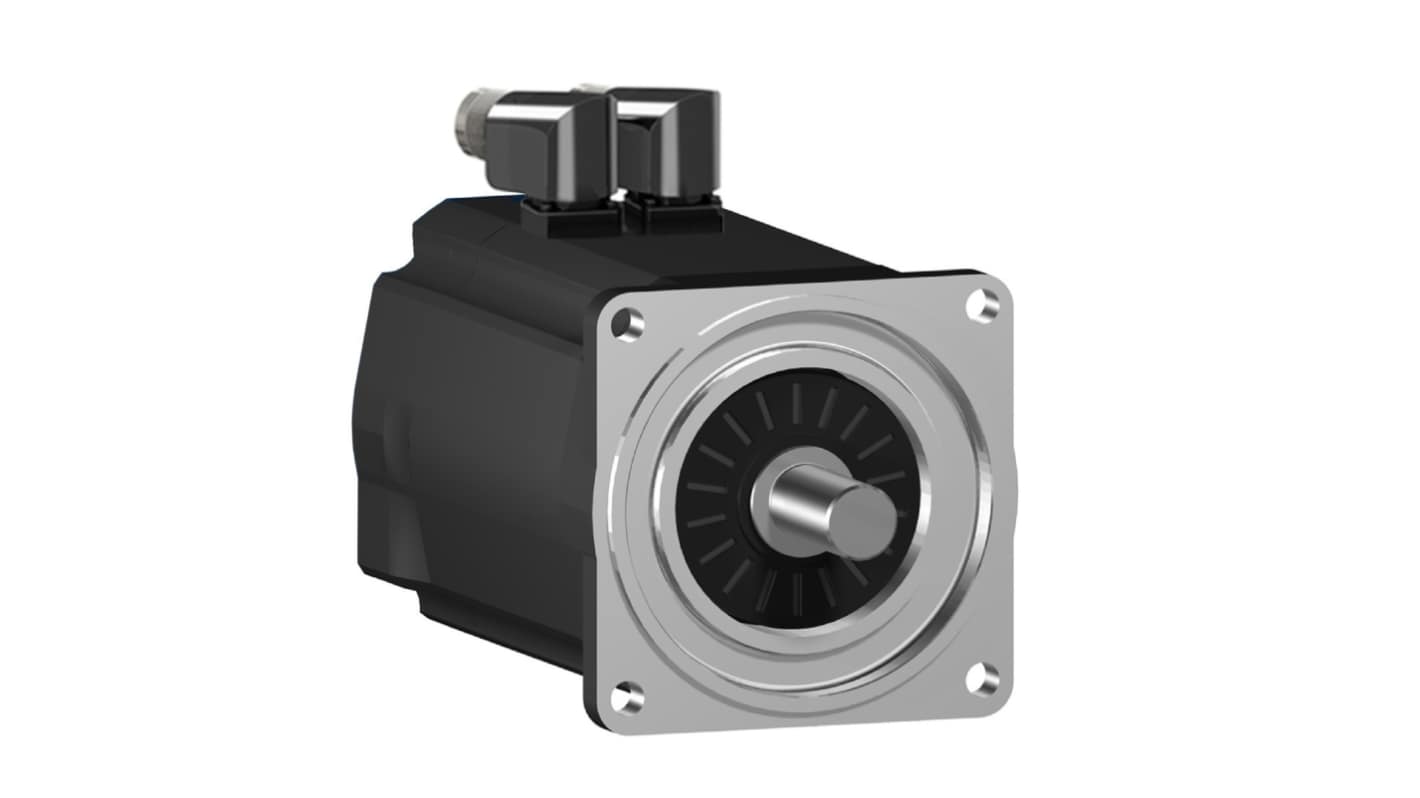

Schneider Electric 115 → 480 V 3.9 kW Servo Motor, 4000 rpm, 60.1 Nm Max Output Torque, 24mm Shaft Diameter

The Schneider Electric Servo motor is engineered for high-performance applications requiring precision control and reliable operation. Designed for a maximum mechanical speed of 4000 rpm, this servo motor excels in dynamic environments, making it suitable for integration in various automated systems. With its three-phase design and wide operating voltage range of 115-480 V, it delivers exceptional torque and power output, ensuring efficient machine operation. Additionally, the motor's advanced features, including an absolute multiturn encoder and IP54/IP65 protection ratings, guarantee durability and precise feedback in demanding conditions.

Delivers continuous stall torque of 19.5 N.m ensuring reliable performance
Households a peak stall torque of 60.1 N.m providing extra thrust when needed
Rated for an impressive continuous power output of up to 3900 W
Integrated with an absolute multiturn SinCos Hiperface encoder for superior feedback accuracy
IP54/IP65 rating protects against dust and moisture, enhancing longevity
Natural convection cooling keeps the motor operating optimally within specified temperature limits
Supports various electrical connections with a rotatable right-angled connector for installation flexibility
Features a robust motor flange size of 140 mm for standard mounting compatibility
Designed with a lightweight net weight of 17.7 kg for easier handling during installation
