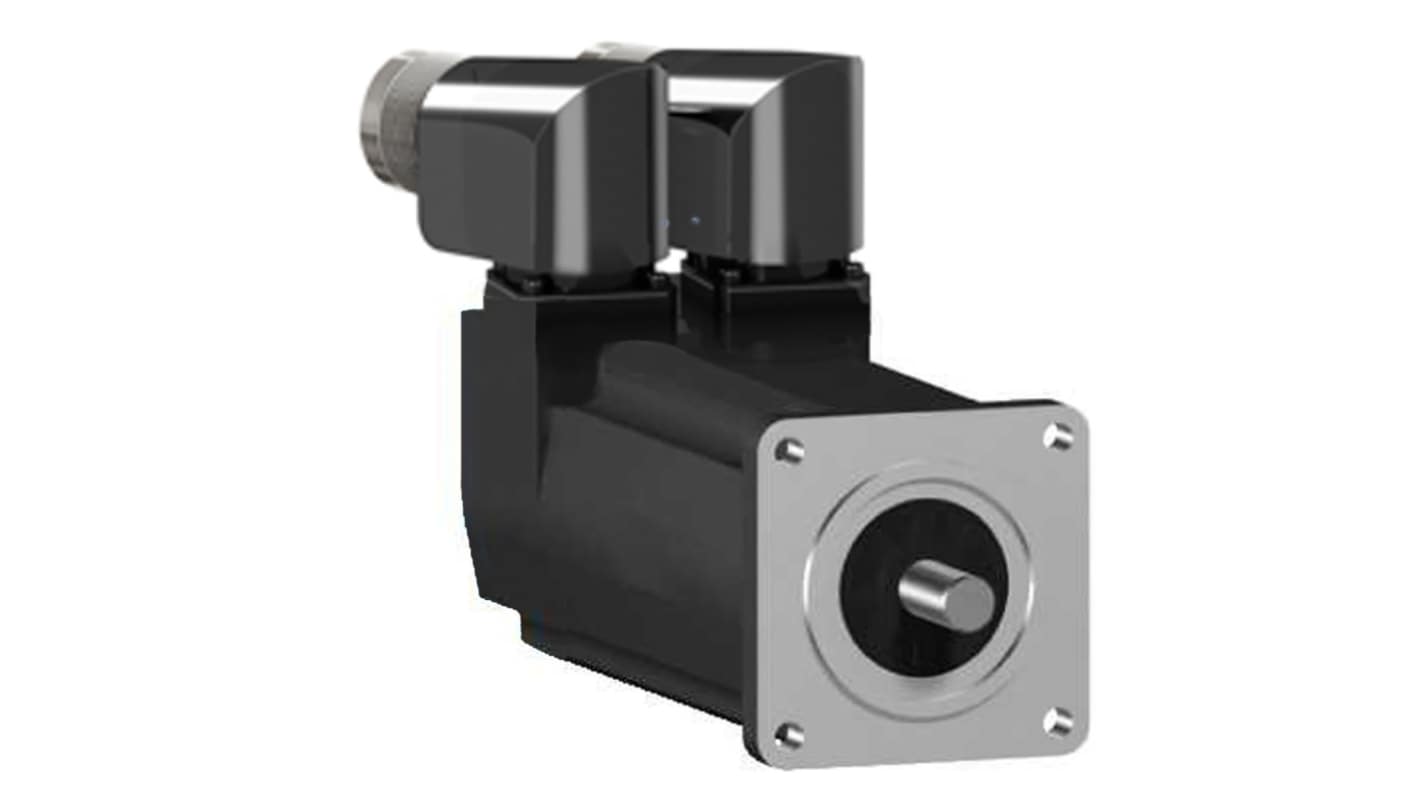

Schneider Electric 115V, 480 V 290 W Servo Motor, 9000rpm, 1.5 Nm Max Output Torque, 9 mm Shaft Diameter
- RS Stock No.:
- 654-550
- Mfr. Part No.:
- SH30551P02A2100
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£1,317.59
(exc. VAT)
£1,581.11
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 24 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,317.59 |
*price indicative
- RS Stock No.:
- 654-550
- Mfr. Part No.:
- SH30551P02A2100
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Servo Motor | |
| Maximum Output Torque | 1.5Nm | |
| Supply Voltage | 115V, 480V | |
| Sub Type | Servo Motors SH3 | |
| Output Speed | 9000rpm | |
| Power Rating | 290W | |
| Stall Torque | 0.42Nm | |
| Mount Type | Flange | |
| Shaft Diameter | 9mm | |
| Length | 132.5mm | |
| Width | 19mm | |
| Series | SH3 | |
| Standards/Approvals | RoHS, EAN, WEEE, REACH | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Servo Motor | ||
Maximum Output Torque 1.5Nm | ||
Supply Voltage 115V, 480V | ||
Sub Type Servo Motors SH3 | ||
Output Speed 9000rpm | ||
Power Rating 290W | ||
Stall Torque 0.42Nm | ||
Mount Type Flange | ||
Shaft Diameter 9mm | ||
Length 132.5mm | ||
Width 19mm | ||
Series SH3 | ||
Standards/Approvals RoHS, EAN, WEEE, REACH | ||
- COO (Country of Origin):
- DE
The Schneider Electric Servo motor is a high-performance component designed for precise motion control in industrial applications. With a maximum mechanical speed of 9000 RPM and versatile compatibility across the PacDrive 3 range, this motor ensures reliable operation under varying load conditions. Rated for a supply voltage spanning from 115 to 480 V and optimised for three-phase networks, it delivers sustained performance with continuous stall torque of 0.42 N.m. The motor's compact dimensions, combined with its robust IP65 protection rating, make it suitable for integration in diverse environments. This product contributes to operational efficiency with its effective cooling system and advanced feedback resolution using an absolute multiturn SinCos Hiperface encoder.
Delivers maximum mechanical speed of 9000 RPM for high precision applications
Designed for three-phase networks, ensuring high efficiency and reliability
Continuous stall torque of 0.42 N.m provides stable performance under load
IP65 rating protects against dust and water, enhancing durability in tough environments
Features an absolute multiturn SinCos Hiperface encoder for superior speed feedback resolution
Compact design with a smooth shaft end for straightforward installation
Natural convection cooling type ensures effective thermal management during operation
Weighs 1.2 kg, making it lightweight for easier handling and integration
