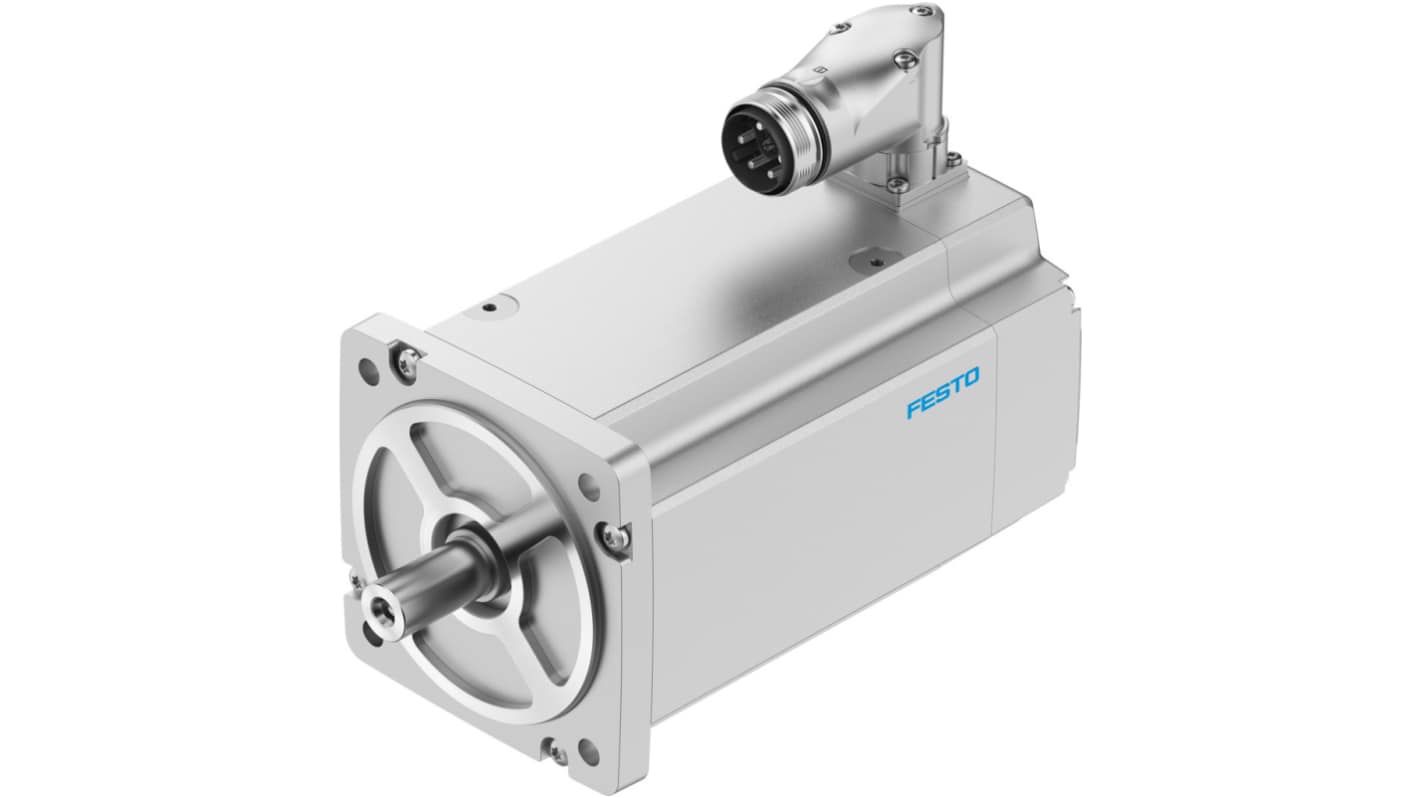

Festo 680 V 4.948 kW Servo Motor, 5051 rpm, 60 Nm Max Output Torque

View all Servo Motors

Subtotal (1 unit)*

£2,922.53

(exc. VAT)

£3,507.04

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£2,922.53

*price indicative

RS Stock No.:
195-416
Mfr. Part No.:
EMMT-AS-150-MK-HV-R3S
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Maximum Output Torque

60 Nm

Supply Voltage

680 V

Output Speed

5051 rpm

Power Rating

4.948 kW

Stall Torque

33Nm

COO (Country of Origin):
DE

Festo EMMT-AS Series Servo Motor, 60Nm Maximum Output Torque, 680V Supply Voltage - EMMT-AS-150-MK-HV-R3S, Numeric Part Number:8148288


This servo motor is designed for high efficiency and precision motion control in industrial applications. With a maximum output torque of 60 Nm and a powerful power rating of 4.948 kW, it supports demanding automation tasks. The compact dimensions of 316.5mm in length, 165mm in width, and 219.8mm in depth make integration into existing systems straightforward.

Features & Benefits


• High-speed operation up to 5051 rpm enhances process efficiency
• Peak torque capabilities improve performance in heavy-duty tasks
• Digital temperature monitoring ensures optimal motor protection
• Robust design offers environmental resilience and reliability
• IP67 rating provides protection against dust and water ingress
• Long operational life of 20,000 hours reduces maintenance costs

Applications


• Used for precision positioning in robotics
• Suitable for high-speed pick-and-place tasks
• Ideal for automation in packaging machinery
• Utilised in CNC machines for superior control

What are the operational constraints regarding temperature and humidity?


The motor operates efficiently in ambient temperatures ranging from -15 °C to 40 °C, and up to 80 °C when derated. Humidity levels can be between 0-90%, ensuring versatility in various environments.

How does the stall torque specification impact overall performance?


With a stall torque of 33 Nm, it ensures that the motor can handle sudden load increases without stalling, maintaining consistent performance even under challenging conditions.

Can it work at significant altitudes and how does that affect performance?


Yes, it can function up to an installation height of 4000m but may require derating beyond 1000m to maintain reliability and efficiency.

What is the required electrical connection setup for proper operation?


The motor requires a hybrid plug-type connection with an M40x1 connector system, accommodating multiple connections for efficient electrical delivery.
