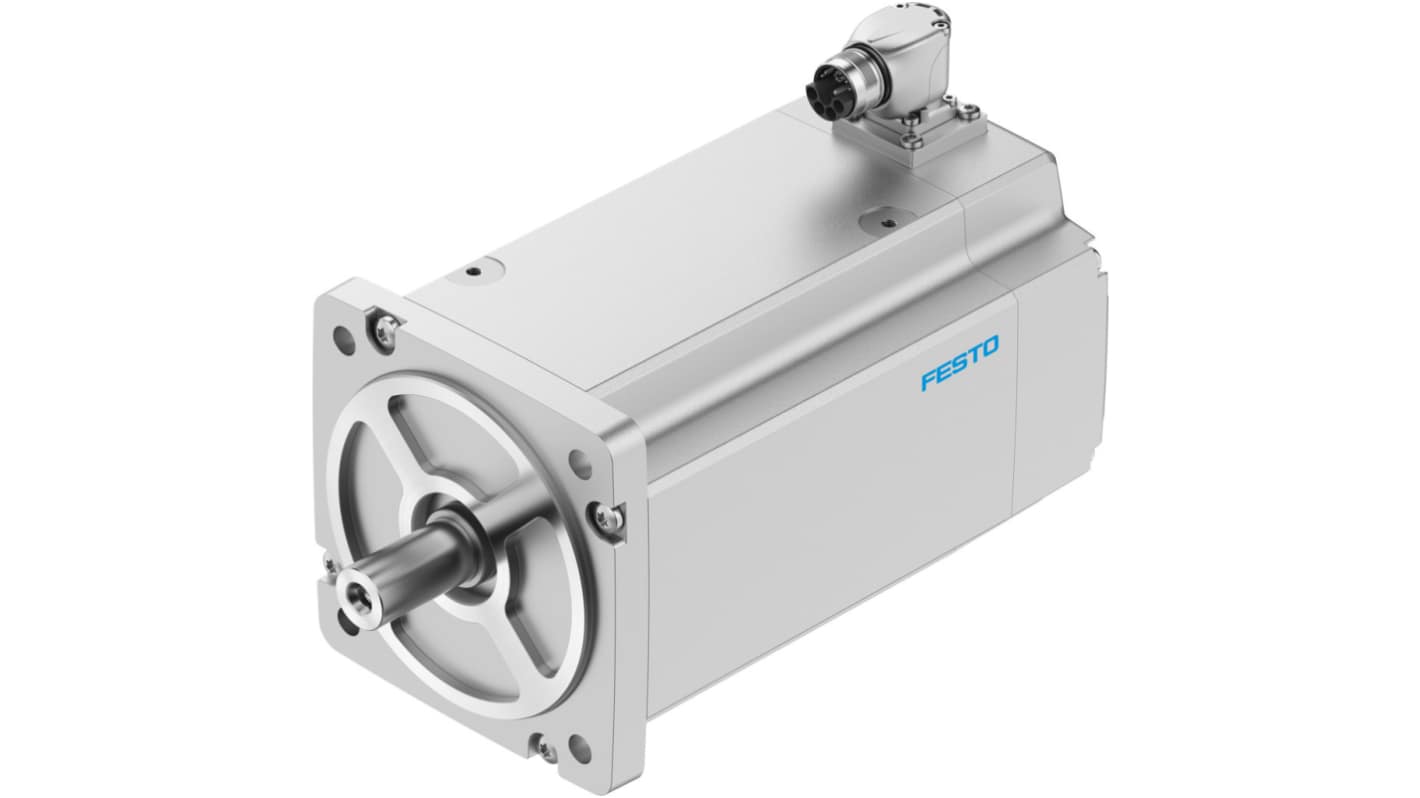

Festo 680V 4257 W Servo Motor, 2368rpm, 64 Nm Max Output Torque
- RS Stock No.:
- 195-412
- Mfr. Part No.:
- EMMT-AS-150-M-HS-R2SB
- Brand:
- Festo
Subtotal (1 unit)*
£2,992.17
(exc. VAT)
£3,590.60
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £2,992.17 |
*price indicative
- RS Stock No.:
- 195-412
- Mfr. Part No.:
- EMMT-AS-150-M-HS-R2SB
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Maximum Output Torque | 64Nm | |
| Product Type | Servo Motor | |
| Supply Voltage | 680V | |
| Output Speed | 2368rpm | |
| Power Rating | 4257W | |
| Stall Torque | 33Nm | |
| Current Rating | 24A | |
| Series | EMMT-AS | |
| Rotor Inertia | 8.2kg.cm² | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Maximum Output Torque 64Nm | ||
Product Type Servo Motor | ||
Supply Voltage 680V | ||
Output Speed 2368rpm | ||
Power Rating 4257W | ||
Stall Torque 33Nm | ||
Current Rating 24A | ||
Series EMMT-AS | ||
Rotor Inertia 8.2kg.cm² | ||
Standards/Approvals RoHS | ||
Festo EMMT Series Servo Motor, 24A Current Rating, 4.257kW Power Rating - EMMT-AS-150-M-HS-R2SB, Numeric Part Number: 8148273
This servo motor is designed for high performance, offering impressive torque and speed for various industrial applications. Its advanced construction optimises efficiency, making it an essential component in automation and control systems. It is relevant for professionals in electronics, electrical, and mechanical sectors, delivering precise control and responsiveness in various environments.
Features & Benefits
• High peak torque of 64Nm enhances application versatility
• Operates at a supply voltage of 680V for strong performance
• Maximum output speed of 2368rpm supports fast operations
• Temperature monitoring via EnDat® 2.2 adds safety
Applications
• Suitable for robotics and automation systems requiring precise control
• Ideal for CNC machinery and high-speed conveyor systems
• Useful in demanding high torque in compact spaces
• Employed in packaging and assembly line operations to enhance efficiency
What is the maximum rotational speed achieved?
The motor can reach a maximum rotational speed of 2368rpm, suitable for high-speed applications.
What ambient temperature range can it operate within?
It operates effectively between -15°C and 40°C, with derating permitted up to 80°C.
How is the motor protected from environmental factors?
With IP21 protection without a rotary shaft seal, and IP67 with it, ensuring reliability in varied conditions.
What is the expected lifespan of the rotor position sensor?
The rotor position sensor has a mean time to failure of around 190 years, contributing to the overall durability of the motor.
