Festo 680V 690 W Servo Motor, 6800rpm, 6.4 Nm Max Output Torque
- RS Stock No.:
- 194-671
- Mfr. Part No.:
- EMMT-AS-80-M-HS-RSB
- Brand:
- Festo
Subtotal (1 unit)*
£1,079.00
(exc. VAT)
£1,294.80
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,079.00 |
*price indicative
- RS Stock No.:
- 194-671
- Mfr. Part No.:
- EMMT-AS-80-M-HS-RSB
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Product Type | Servo Motor | |
| Maximum Output Torque | 6.4Nm | |
| Supply Voltage | 680V | |
| Output Speed | 6800rpm | |
| Power Rating | 690W | |
| Stall Torque | 2.6Nm | |
| Mount Type | Flange | |
| Length | 250mm | |
| Width | 250mm | |
| Depth | 15mm | |
| Current Rating | 9A | |
| Series | EMMT-AS | |
| Standards/Approvals | CE, cULus, EN, IEC 60034, UKCA, UL E342973, RCM trademark, RoHS | |
| Rotor Inertia | 1.285kg.cm² | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Product Type Servo Motor | ||
Maximum Output Torque 6.4Nm | ||
Supply Voltage 680V | ||
Output Speed 6800rpm | ||
Power Rating 690W | ||
Stall Torque 2.6Nm | ||
Mount Type Flange | ||
Length 250mm | ||
Width 250mm | ||
Depth 15mm | ||
Current Rating 9A | ||
Series EMMT-AS | ||
Standards/Approvals CE, cULus, EN, IEC 60034, UKCA, UL E342973, RCM trademark, RoHS | ||
Rotor Inertia 1.285kg.cm² | ||
- COO (Country of Origin):
- BG

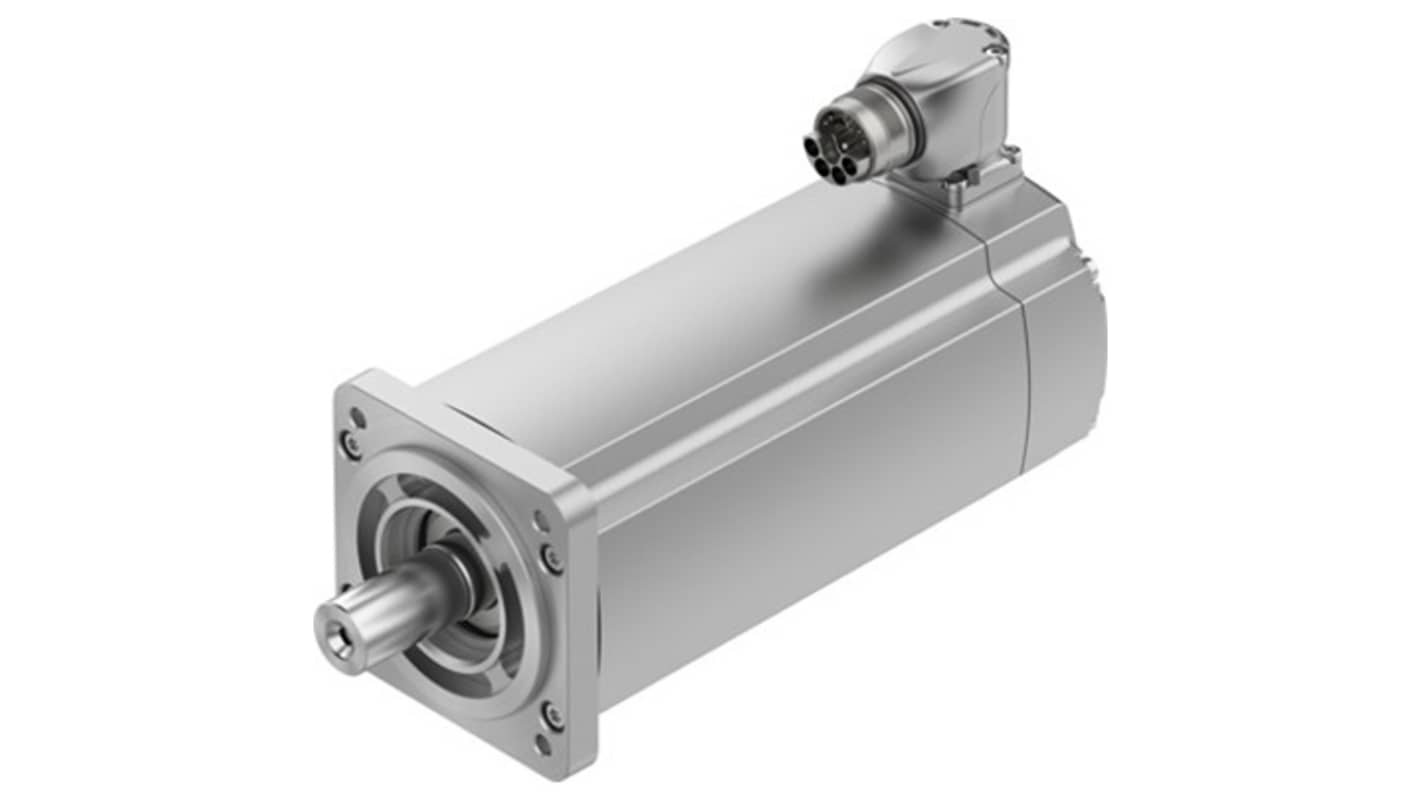

The Festo Servo Motor is designed to deliver precision and efficiency in varying operational environments. Tailored for high performance requirements, this motor integrates advanced technology for effective temperature monitoring and feedback, promoting optimal functionality. With a maximum rotational speed of 6800 rpm and a peak torque of 6.4 Nm, it guarantees swift and reliable responses in dynamic settings. The incorporation of an absolute single turn encoder ensures precise rotor position tracking, vital for applications necessitating high accuracy.
Engineered for ambient and storage temperature resilience
Allows versatile mounting positions for installation flexibility
Adopts advanced digital motor temperature transmission
Incorporates a hybrid plug for robust electrical connections
Optimised for minimal detent torque enhancing responsiveness
Maximises bearing lifetime under nominal conditions
