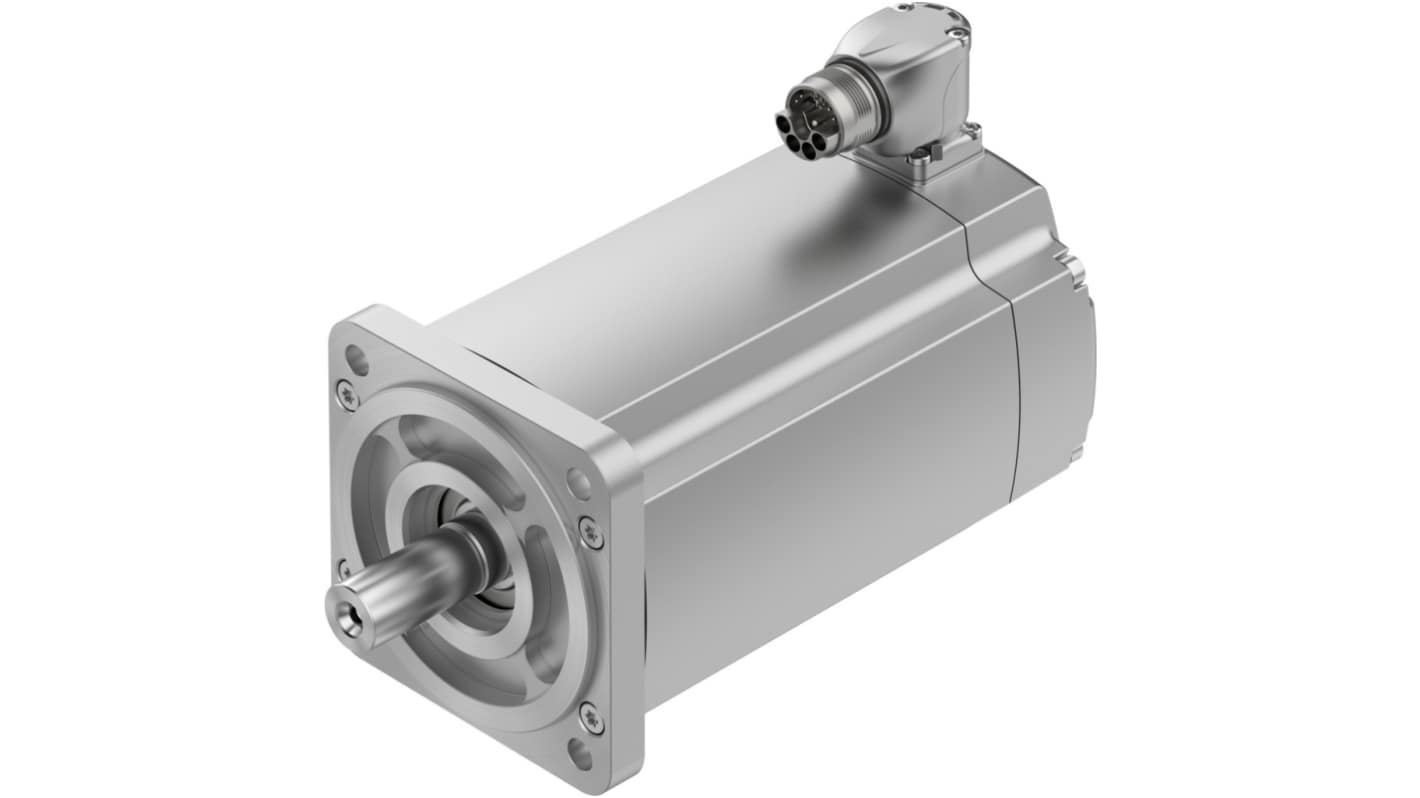

Festo 680 V 1.45 kW Servo Motor, 4770 rpm, 13.7 Nm Max Output Torque
- RS Stock No.:
- 194-651
- Mfr. Part No.:
- EMMT-AS-100-S-HS-RM
- Brand:
- Festo
Subtotal (1 unit)*
£1,172.95
(exc. VAT)
£1,407.54
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 06 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £1,172.95 |
*price indicative
- RS Stock No.:
- 194-651
- Mfr. Part No.:
- EMMT-AS-100-S-HS-RM
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Maximum Output Torque | 13.7 Nm | |
Supply Voltage | 680 V | |
Output Speed | 4770 rpm | |
Power Rating | 1.45 kW | |
Stall Torque | 6.3Nm | |
Current Rating | 13.7 A | |
Series | EMMT | |
Standards Met | RoHS | |
Select all | ||
---|---|---|
Brand Festo | ||
Maximum Output Torque 13.7 Nm | ||
Supply Voltage 680 V | ||
Output Speed 4770 rpm | ||
Power Rating 1.45 kW | ||
Stall Torque 6.3Nm | ||
Current Rating 13.7 A | ||
Series EMMT | ||
Standards Met RoHS | ||
- COO (Country of Origin):
- BG
Festo EMMT Series Servo Motor, 13.7A Current Rating, 1.45kW Power Rating - EMMT-AS-100-S-HS-RM, Numeric Part Number: 5255521
This servo motor is tailored for high-performance automation and control applications, delivering precise motion control essential across various industrial sectors. With a maximum output speed of 4770r/min and a rating of 1.45kW, it caters to sophisticated electrical and mechanical systems.
Features & Benefits
• Maximum output torque of 13.7Nm for strong performance
• Digital motor temperature monitoring for safe operation
• High stall torque specifications support challenging applications
• Digital motor temperature monitoring for safe operation
• High stall torque specifications support challenging applications
Applications
• Precision motion control in automation systems
• Robotics requiring high torque and rapid acceleration
• Industrial equipment where space constraints exist
• demanding extended operational lifetimes
• Machines functioning at elevated temperatures
• Robotics requiring high torque and rapid acceleration
• Industrial equipment where space constraints exist
• demanding extended operational lifetimes
• Machines functioning at elevated temperatures
What is the maximum installation height for the motor?
The motor can be installed at a maximum height of 4000m, with derating applicable above 1000m.
How does the rotor position sensor function?
The absolute multi-turn encoder provides accurate position feedback, ensuring precise motor control.
Can this motor operate in humid conditions?
Yes, it can function within a relative humidity range of 0 to 90%, making it suitable for various environments.
What is the expected bearing lifetime under nominal conditions?
The bearing is designed for a lifetime of up to 20,000 hours under standard operational conditions.
How does the motor handle thermal variations?
The device can tolerate ambient temperatures up to 80°C with a derating measure of -1.5% per degree Celsius, ensuring reliability in fluctuating thermal conditions.
