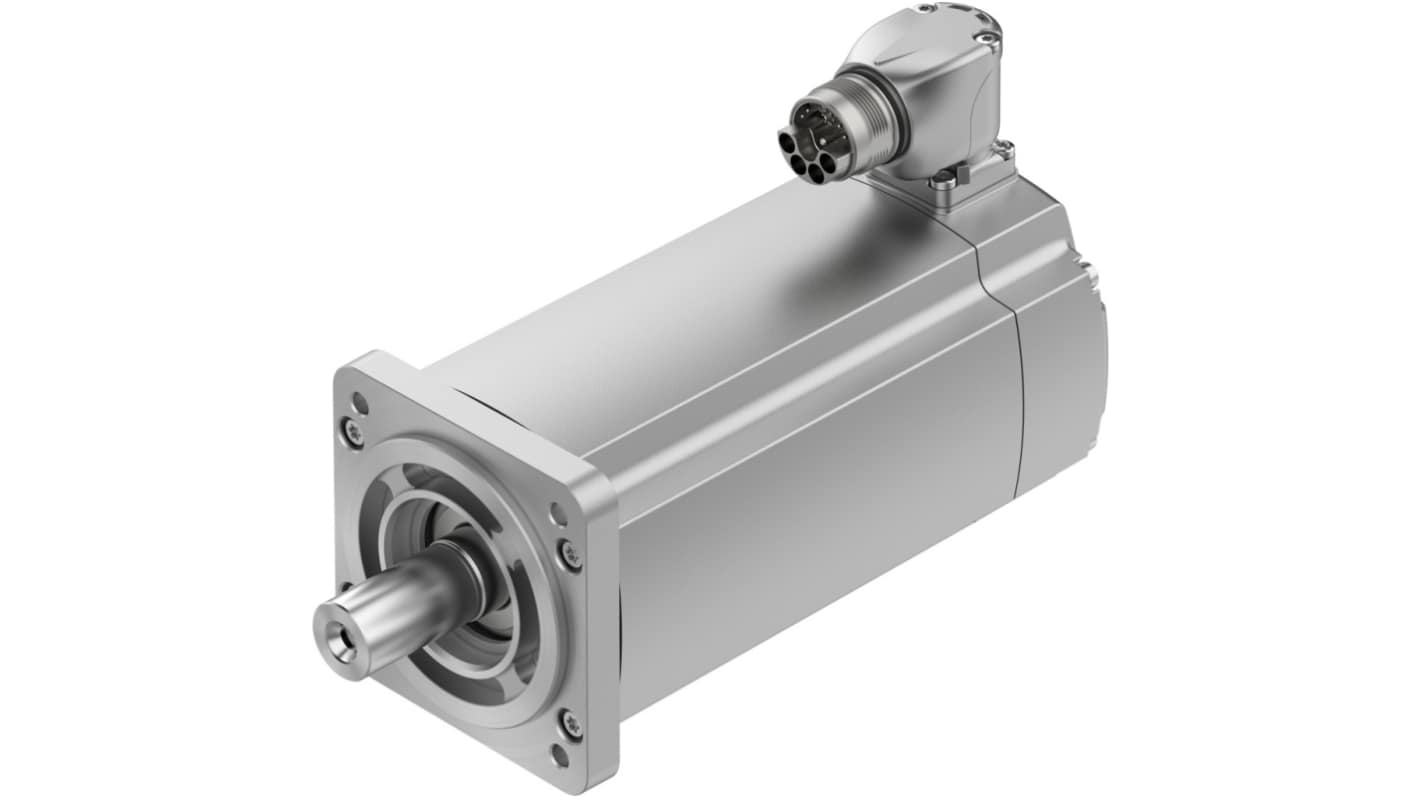

Festo 680V 408 W Servo Motor, 3000rpm, 2.8 Nm Max Output Torque
- RS Stock No.:
- 194-547
- Mfr. Part No.:
- EMMT-AS-80-S-HS-RMB
- Brand:
- Festo
Subtotal (1 unit)*
£1,120.76
(exc. VAT)
£1,344.91
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,120.76 |
*price indicative
- RS Stock No.:
- 194-547
- Mfr. Part No.:
- EMMT-AS-80-S-HS-RMB
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Maximum Output Torque | 2.8Nm | |
| Product Type | Servo Motor | |
| Supply Voltage | 680V | |
| Output Speed | 3000rpm | |
| Power Rating | 408W | |
| Stall Torque | 1.46Nm | |
| Mount Type | Flange | |
| Length | 250mm | |
| Width | 250mm | |
| Depth | 15mm | |
| Current Rating | 5.4A | |
| Series | EMMT-AS | |
| Rotor Inertia | 0.897kg.cm² | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Maximum Output Torque 2.8Nm | ||
Product Type Servo Motor | ||
Supply Voltage 680V | ||
Output Speed 3000rpm | ||
Power Rating 408W | ||
Stall Torque 1.46Nm | ||
Mount Type Flange | ||
Length 250mm | ||
Width 250mm | ||
Depth 15mm | ||
Current Rating 5.4A | ||
Series EMMT-AS | ||
Rotor Inertia 0.897kg.cm² | ||
Standards/Approvals RoHS | ||
Festo EMMT Series Servo Motor, 5.4A Current Rating, 408W Power Rating - EMMT-AS-80-S-HS-RMB, Numeric Part Number: 5255432
This servo motor is intended for high-performance automation and mechanical applications. With a maximum output torque of 2.8Nm and a power rating of 408W, it is suitable for industrial environments where precision and dependability are essential. The Festo EMMT series incorporates advanced technology, making it an important component for enhancing operational efficiency.
Features & Benefits
• High torque performance supports dynamic applications
• Peak torque of 2.8Nm optimises application versatility
• Digital motor temperature monitoring ensures safe operation
• Vibration and shock resistance provide durability in harsh conditions
Applications
• Used in robotics for precise movement control
• Suitable for CNC machinery requiring accurate positioning
• Employed in packaging systems for high-speed operations
• Utilised in conveyor systems for efficient material handling
What is the maximum operating voltage for optimal performance?
The motor operates at a nominal voltage of DC 680V, providing efficient power for high-demand scenarios.
How does the motor handle varying environmental conditions?
It maintains performance in ambient temperatures up to 40°C, with derating applicable beyond this range, ensuring reliable operation in diverse settings.
What kind of brake system is integrated into the design?
The system incorporates a DC brake with a holding torque of 4.5Nm, enhancing safety and control during operation.
How long can I expect the motor to operate under nominal conditions?
Under standard usage conditions, the motor has a bearing lifetime of up to 20,000 hours, ensuring longevity and reduced maintenance intervals.
