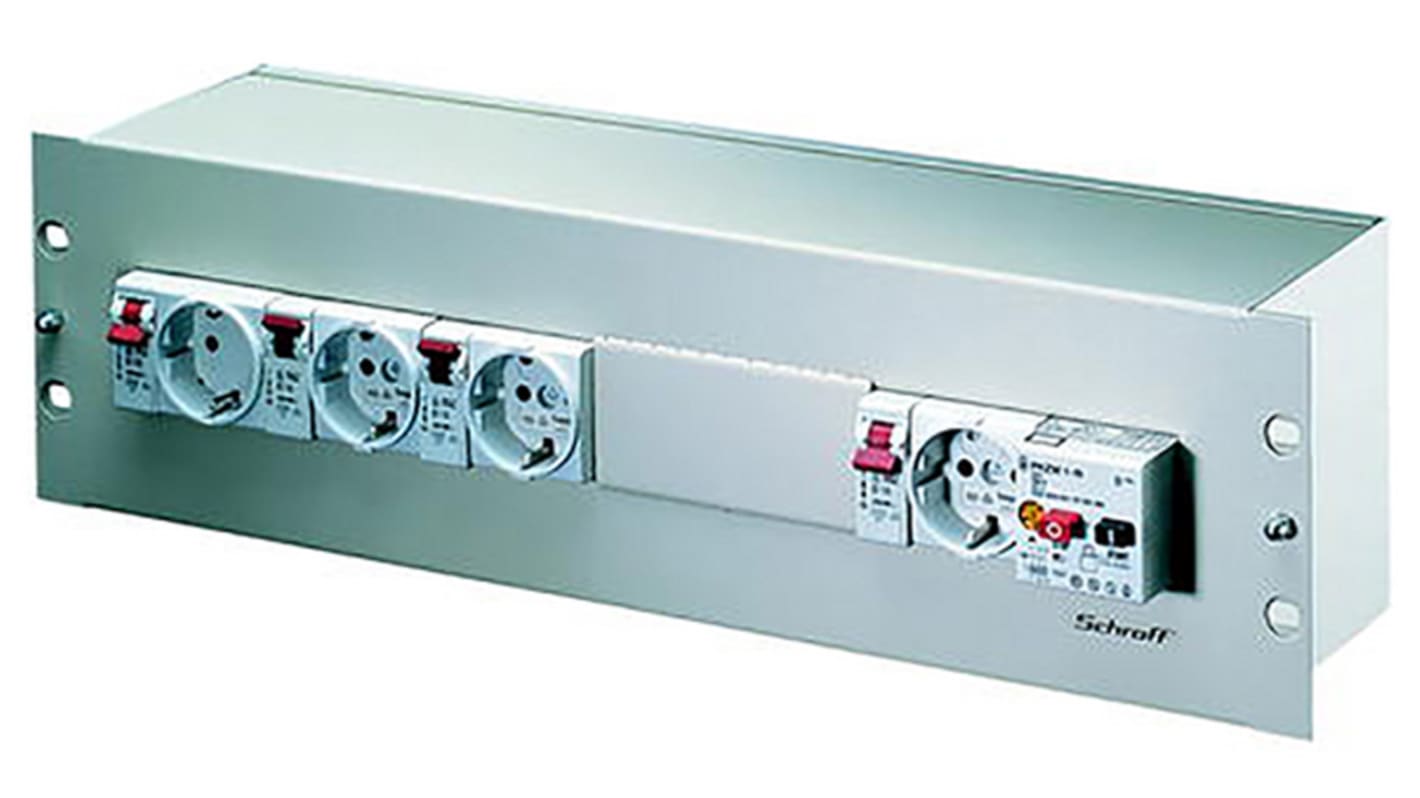

nVent SCHROFF Distribution Box 19 Inch Power Box for Use with 19-Inch Cabinet, 3U
- RS Stock No.:
- 136-2070
- Distrelec Article No.:
- 110-15-463
- Mfr. Part No.:
- 60118-434
- Brand:
- nVent SCHROFF
Subtotal (1 unit)*
£236.69
(exc. VAT)
£284.03
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
---|---|
1 + | £236.69 |
*price indicative
- RS Stock No.:
- 136-2070
- Distrelec Article No.:
- 110-15-463
- Mfr. Part No.:
- 60118-434
- Brand:
- nVent SCHROFF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | nVent SCHROFF | |
Type | 19 Inch Power Box | |
For Use With | 19-Inch Cabinet | |
Material | Steel | |
Height U | 3U | |
Width HP | 84HP | |
Select all | ||
---|---|---|
Brand nVent SCHROFF | ||
Type 19 Inch Power Box | ||
For Use With 19-Inch Cabinet | ||
Material Steel | ||
Height U 3U | ||
Width HP 84HP | ||
- COO (Country of Origin):
- DE
Schroff 19-Inch Distribution Box
Features and Benefits
• For installation of power distribution modules on DIN profile rails (DIN 43880)
• With cable support rail at rear, strain relief with clamps
• Two neutral conductors for terminal clamps from 4 to 35 mm²
• RoHS compliant
• With cable support rail at rear, strain relief with clamps
• Two neutral conductors for terminal clamps from 4 to 35 mm²
• RoHS compliant
Supplied with
1 x case, 2 parts, 3 U/84 HP, aluminium zinc
1 x front panel with cut‐out for power distribution module, steel, 1 mm, RAL 7035.
2 x neutral conductors for terminal clamps, copper, 200 x 3 x 10 mm, zinc‐plated, insulated mounting.
1 x DIN profile rail, steel, zinc‐plated, depth‐adjustable with spacing bolts.
1 x cable support rail for clamps, zinc‐plated.
1 x brush strip, plastic, black, for cable entry.
2 x sealing strip, fibreglass reinforced polyester, for unused module positions.
1 x GND/earthing conductor, copper, 1.5 mm², green/yellow, length 360 mm.
1 x label strip.
1 x front panel with cut‐out for power distribution module, steel, 1 mm, RAL 7035.
2 x neutral conductors for terminal clamps, copper, 200 x 3 x 10 mm, zinc‐plated, insulated mounting.
1 x DIN profile rail, steel, zinc‐plated, depth‐adjustable with spacing bolts.
1 x cable support rail for clamps, zinc‐plated.
1 x brush strip, plastic, black, for cable entry.
2 x sealing strip, fibreglass reinforced polyester, for unused module positions.
1 x GND/earthing conductor, copper, 1.5 mm², green/yellow, length 360 mm.
1 x label strip.
