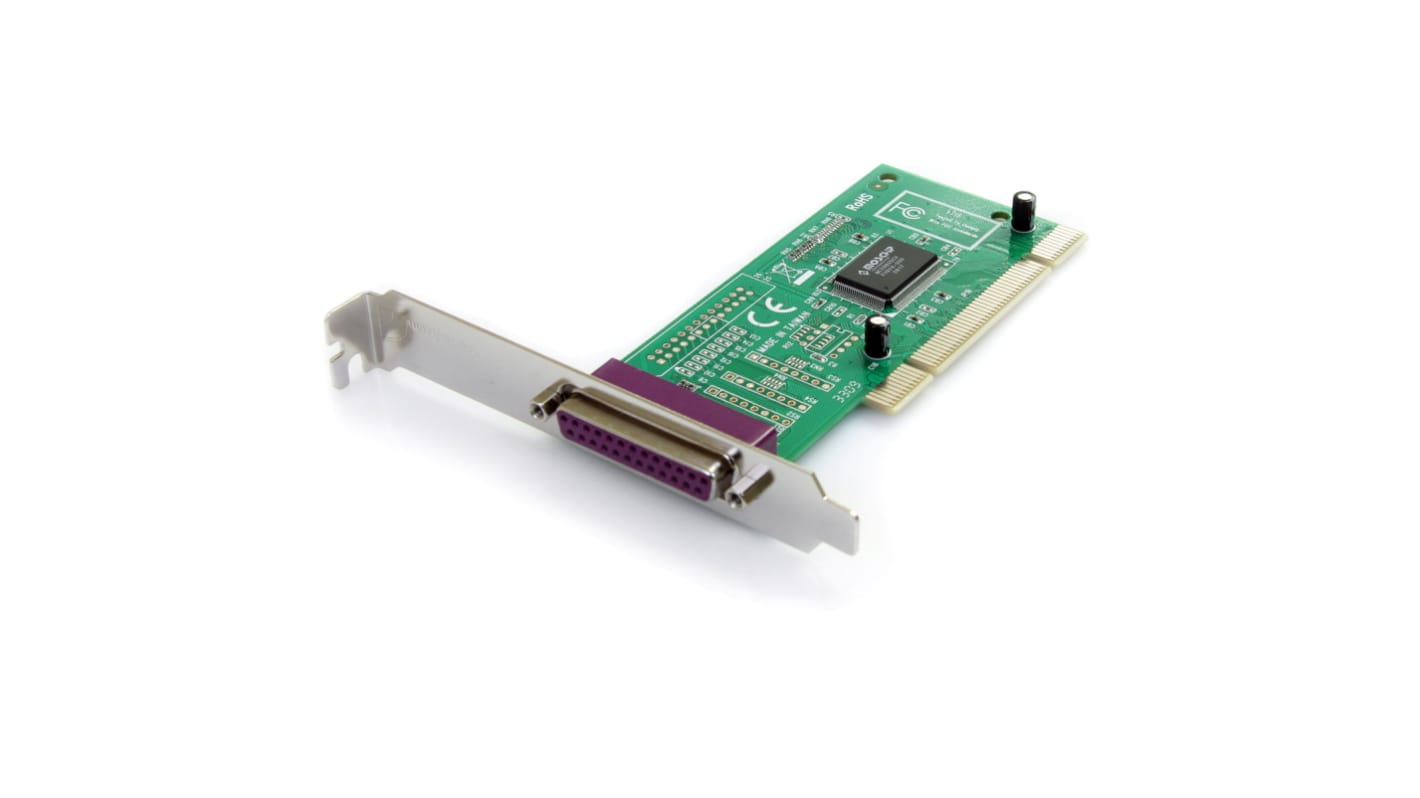

StarTech.com 1 PCI LPT Parallel Serial Card
- RS Stock No.:
- 138-3754
- Mfr. Part No.:
- PCI1PECP
- Brand:
- StarTech.com
Discontinued
- RS Stock No.:
- 138-3754
- Mfr. Part No.:
- PCI1PECP
- Brand:
- StarTech.com
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | StarTech.com | |
| Bus Type | PCI | |
| Communication Interface | Parallel | |
| Number of Ports | 1 | |
| Connection Port | LPT | |
| Maximum Baud Rate | 1.5Mbit/s | |
| Select all | ||
|---|---|---|
Brand StarTech.com | ||
Bus Type PCI | ||
Communication Interface Parallel | ||
Number of Ports 1 | ||
Connection Port LPT | ||
Maximum Baud Rate 1.5Mbit/s | ||
- COO (Country of Origin):
- TW
PCI1PECP PCI Parallel Card
This high performance PCI based EPP/ECP parallel adapter card can be installed in a computer PCI slot to add one IEEE 1284 parallel port to your PC. A cost-effective way to connect parallel devices to the computer, with data transfer speeds of up to 1.5 Mbps (up to 3 times faster than on-board parallel ports).
The adapter card supports EPP, ECP, SPP and BPP parallel communications, and is simple to install in virtually any PC. The card supports Windows® and Linux®, plus IRQ sharing and plug and play capabilities guarantee convenient, hassle-free connections to any parallel peripheral.
A complete dual profile solution, the PCI parallel adapter card provides both standard bracket and low profile/half-height brackets for adapting to slim line or small form factor system applications.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
The adapter card supports EPP, ECP, SPP and BPP parallel communications, and is simple to install in virtually any PC. The card supports Windows® and Linux®, plus IRQ sharing and plug and play capabilities guarantee convenient, hassle-free connections to any parallel peripheral.
A complete dual profile solution, the PCI parallel adapter card provides both standard bracket and low profile/half-height brackets for adapting to slim line or small form factor system applications.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
Features & Benefits
• Supports EPP, ECP, SPP and BPP
• Standard and low profile bracket included
• Data transfer rates of up to 1.5 Mbps
• IRQ sharing eliminates conflicts between multiple cards
• Easy plug and play installation
• Installation scripts available for Linux RedHat 7.2, SuSE 7.3 and Mandrake 8.2
• Standard and low profile bracket included allowing install into almost any system
• Up to 3 times faster than legacy ISA or on-board parallel ports providing fast and reliable parallel communication
• Supports SPP, EPP, ECP and BPP communication modes for maximum compatibility with your parallel peripherals
• Standard and low profile bracket included
• Data transfer rates of up to 1.5 Mbps
• IRQ sharing eliminates conflicts between multiple cards
• Easy plug and play installation
• Installation scripts available for Linux RedHat 7.2, SuSE 7.3 and Mandrake 8.2
• Standard and low profile bracket included allowing install into almost any system
• Up to 3 times faster than legacy ISA or on-board parallel ports providing fast and reliable parallel communication
• Supports SPP, EPP, ECP and BPP communication modes for maximum compatibility with your parallel peripherals
Applications
• Connects any parallel peripheral including printers, scanners, CD-R/RWs, Zip® drives, and memory card readers
What’s in the package?
• 1 Port PCI Parallel Card
• Low-Profile PCI bracket
• Driver CD
• Instruction manual
• Low-Profile PCI bracket
• Driver CD
• Instruction manual
FAQs
Will this PCI card fit into my PCI-X slot?
Yes. This PCI card uses a universal connector keyed for both 3.3V and 5V that can be used with PCI and PCI-X. This type of connector is identified as having 2 separate notches, instead of just one.
Chipset Manufacturer
ASIX
Chipset Model
MCS9805CV
