Maxim Integrated MAXREFDES103# Health Sensor Band Evaluation Board for MAXREFDES103# MAXREFDES103#
- RS Stock No.:
- 223-6442
- Mfr. Part No.:
- MAXREFDES103#
- Brand:
- Maxim Integrated
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 223-6442
- Mfr. Part No.:
- MAXREFDES103#
- Brand:
- Maxim Integrated
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Maxim Integrated | |
Featured Device | MAXREFDES103# | |
For Use With | MAXREFDES103# | |
Kit Classification | Evaluation Board | |
Kit Name | MAXREFDES103# Health Sensor Band | |
Select all | ||
---|---|---|
Brand Maxim Integrated | ||
Featured Device MAXREFDES103# | ||
For Use With MAXREFDES103# | ||
Kit Classification Evaluation Board | ||
Kit Name MAXREFDES103# Health Sensor Band | ||

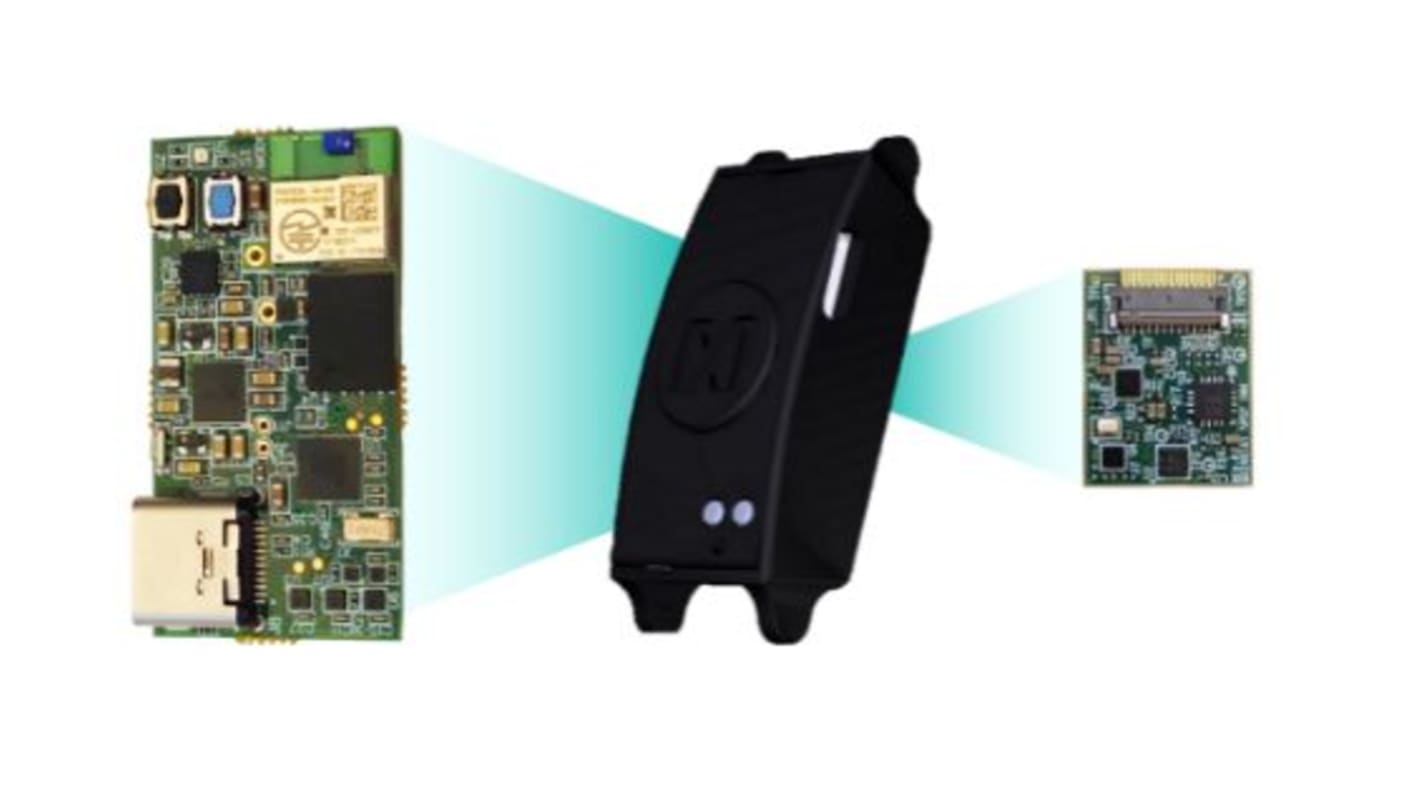

The Maxim Integrated MAXREFDES103# is a wrist-worn wearable form factor that demonstrates the high sensitivity and algorithm processing functions for health-sensing applications. This health sensor band platform includes an enclosure and a biometric sensor hub with an embedded algorithm for heart rate and SpO2 (MAX32664C) which processes PPG signals from the analog-front-end (AFE) sensor (MAX86141). Algorithm output and raw data can be streamed through Bluetooth to an android app or PC GUI for demonstration, evaluation, and customized development.
Photoplethysmography (PPG)
Wrist-based embedded heart rate, blood oxygen saturation (SpO2) algorithm
Heart rate variability (HRV), respiration rate, sleep quality library algorithm
Wearable health band form factor
MAX32664 sensor hub
MAX86141 PPG analog front-end
3-axis accelerometer
Windows and android GUIs
Wrist-based embedded heart rate, blood oxygen saturation (SpO2) algorithm
Heart rate variability (HRV), respiration rate, sleep quality library algorithm
Wearable health band form factor
MAX32664 sensor hub
MAX86141 PPG analog front-end
3-axis accelerometer
Windows and android GUIs
