STMicroelectronics LIS2DTW12 Adapter Board for a Standard DIL 24 Socket for LIS2DTW12 STEVAL-MKI109V3 Motherboard

View all Sensor Development Tools
Bulk discount available

Subtotal (1 unit)*

£14.05

(exc. VAT)

£16.86

(inc. VAT)

Add to Basket
Select or type quantity
Limited stock
  • 11 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£14.05
5 - 9£13.69
10 +£13.35

*price indicative

RS Stock No.:
193-1117
Mfr. Part No.:
STEVAL-MKI190V1
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

Featured Device

LIS2DTW12

For Use With

STEVAL-MKI109V3 Motherboard

Kit Name

LIS2DTW12 Adapter Board for a Standard DIL 24 Socket

COO (Country of Origin):
IT

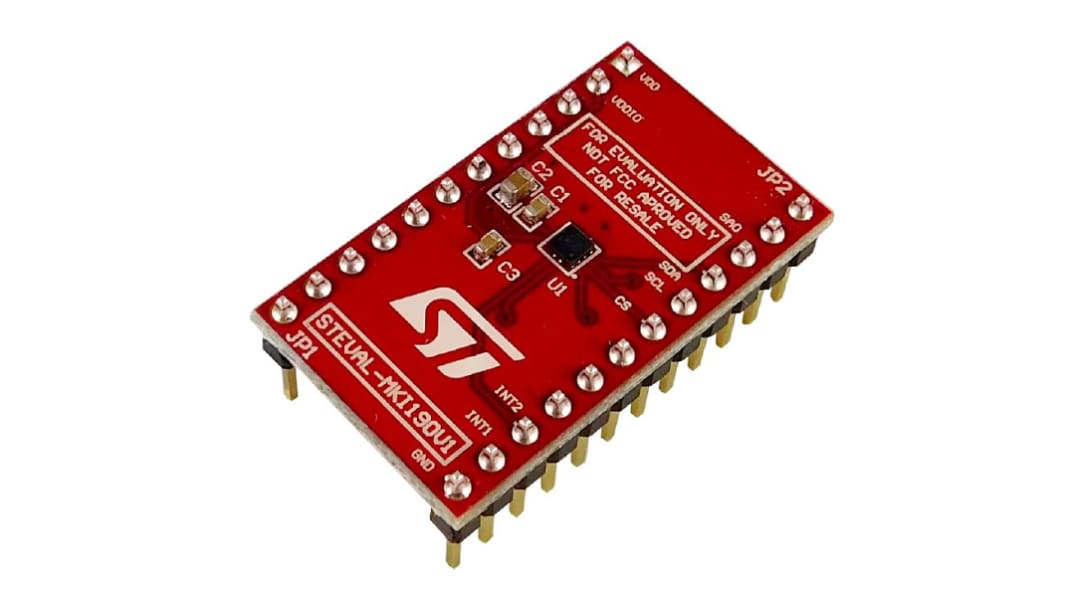

The STEVAL-MKI190V1 is an adapter board designed to facilitate the evaluation of MEMS devices in the LISDTW12 product family. The board offers an effective solution for fast system prototyping and device evaluation directly within the user’s own application.
The STEVAL-MKI190V1 can be plugged into a standard DIL 24 socket. The adapter provides the complete LISDTW12 pin-out and comes ready-to-use with the required decoupling capacitors on the VDD power supply line.
This adapter is supported by the STEVAL-MKI109V3 motherboard which includes a high performance 32-bit microcontroller functioning as a bridge between the sensor and a PC, on which it is possible to use the downloadable graphical user interface (Unico GUI), or dedicated software routines for customized applications.

Complete LISDTW12 pinout for a standard DIL 24 socket
Fully compatible with STEVAL-MKI109V3 motherboards
