MikroElektronika Magneto 4 Click for AS5311 Multi-Pole Magnetic Strip or Ring
- RS Stock No.:
- 188-5505
- Mfr. Part No.:
- MIKROE-3522
- Brand:
- MikroElektronika
Stock information currently inaccessible
- RS Stock No.:
- 188-5505
- Mfr. Part No.:
- MIKROE-3522
- Brand:
- MikroElektronika
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MikroElektronika | |
| Featured Device | AS5311 | |
| For Use With | Multi-Pole Magnetic Strip or Ring | |
| Kit Name | Magneto 4 Click | |
| Select all | ||
|---|---|---|
Brand MikroElektronika | ||
Featured Device AS5311 | ||
For Use With Multi-Pole Magnetic Strip or Ring | ||
Kit Name Magneto 4 Click | ||

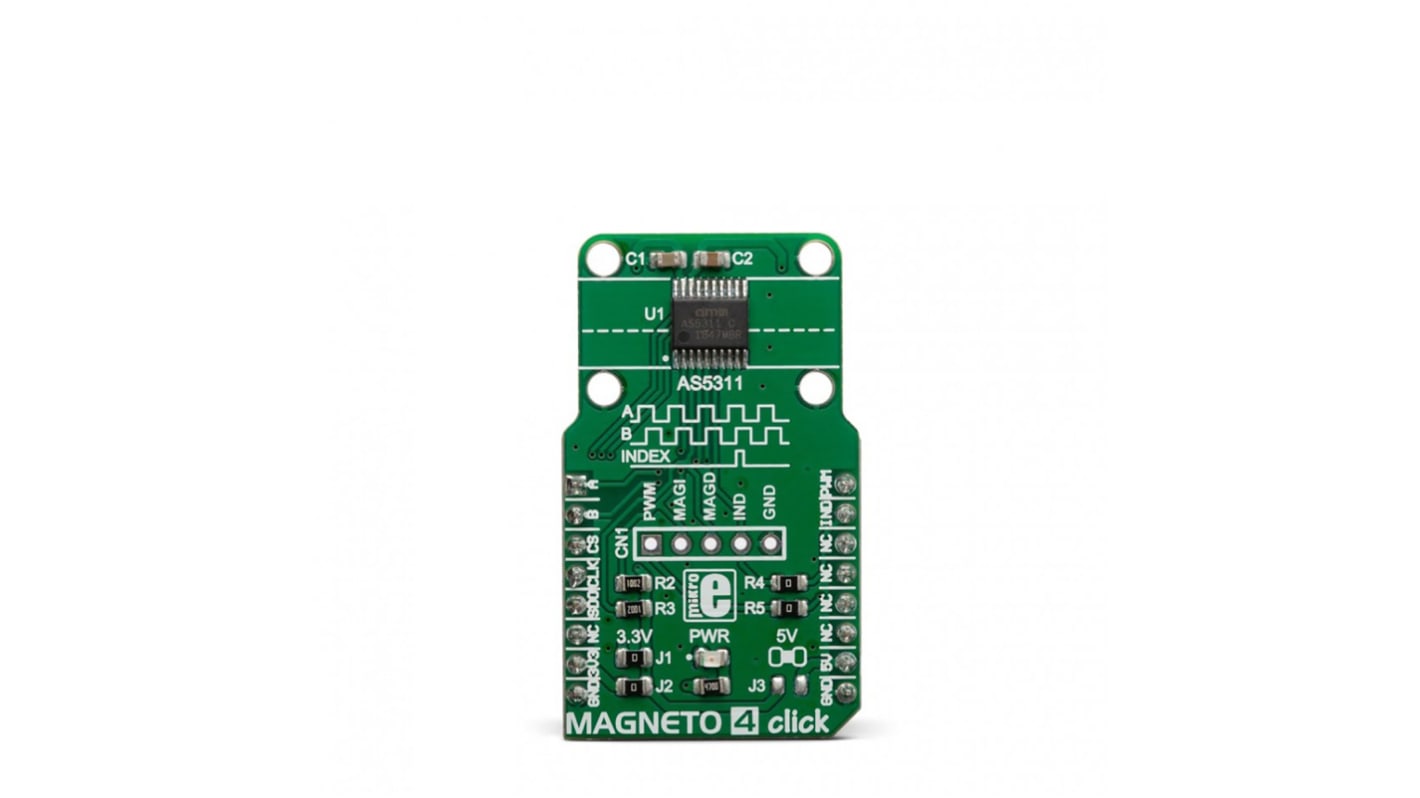

Magneto 4 click is a high-resolution magnetic encoder Click board™ which allows contactless motion sensing down to 0.5μm. It features the AS5311, a complete integrated solution with Hall elements, low-noise analog front-end, and digital signal processing (DSP) sections, on the same die. Thanks to the internal DSP processing, the AS5311 can output the absolute movement detection over the serial interface as a bit stream, or as a PWM signal. The AS5311 IC also offers a high-resolution incremental output with the additional index option. The device is supposed to be used with the multi-pole magnetic strip or ring.
Magneto 4 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
