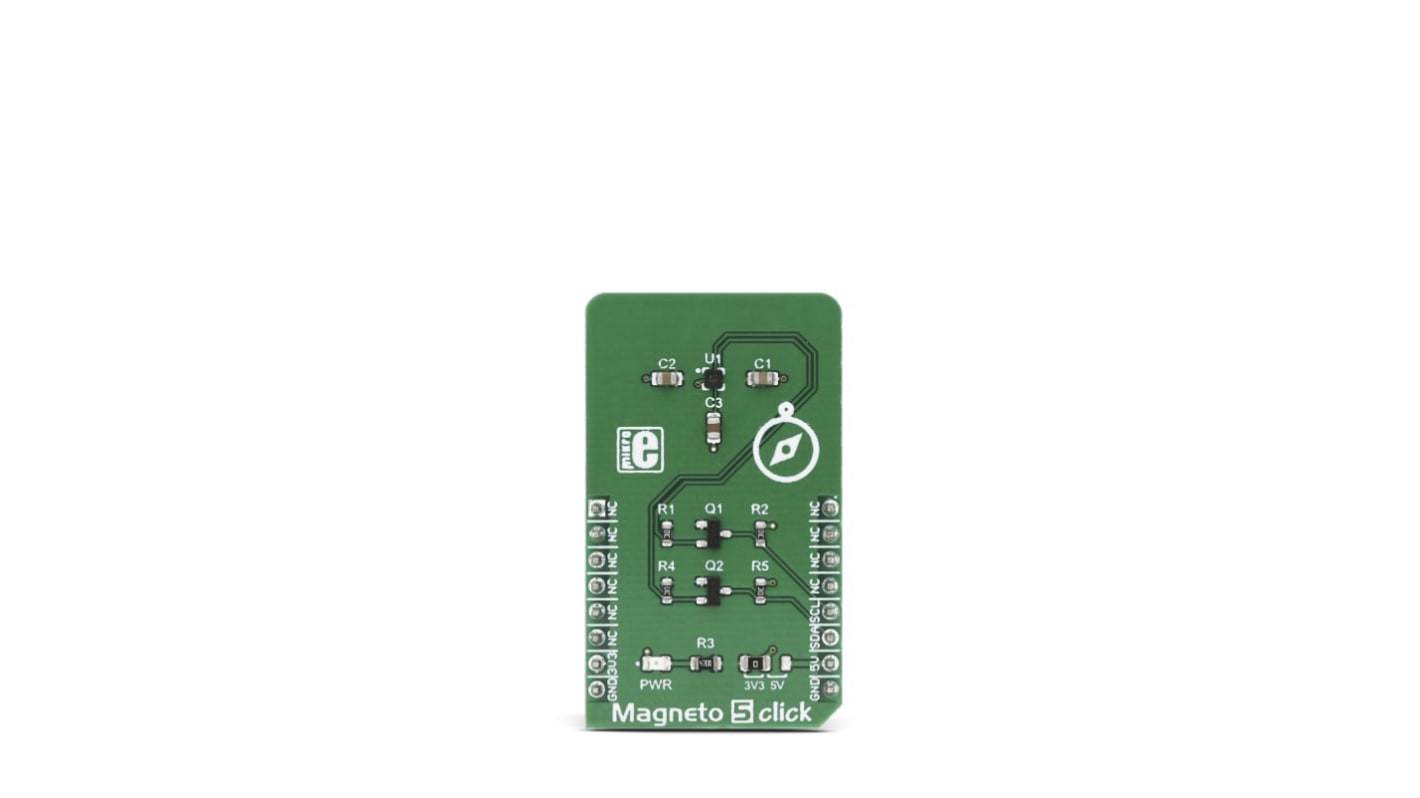

MikroElektronika Development Kit Detection of a Magnetic Field, Portable Electronic Compass Applications, Vehicle
- RS Stock No.:
- 184-0908
- Mfr. Part No.:
- MIKROE-3050
- Brand:
- MikroElektronika
Stock information currently inaccessible
- RS Stock No.:
- 184-0908
- Mfr. Part No.:
- MIKROE-3050
- Brand:
- MikroElektronika
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MikroElektronika | |
| For Use With | Detection of a Magnetic Field, Portable Electronic Compass Applications, Vehicle Detection | |
| Kit Classification | Development Kit | |
| Select all | ||
|---|---|---|
Brand MikroElektronika | ||
For Use With Detection of a Magnetic Field, Portable Electronic Compass Applications, Vehicle Detection | ||
Kit Classification Development Kit | ||
Fully integrated 3-axis magnetic sensor and electronic circuits requiring fewer external components
Superior Dynamic Range and Accuracy:
±16 G FSR with 16/14 bits operation
0.5 mG/2 mG per LSB resolution in 16/14 bits operation mode
1.5 mG total RMS noise
Enables heading accuracy of 1º
Max output data rate of 800 Hz (12 bits mode)
Ultra Small Low profile package 1.6x1.6x0.6 mm
SET/RESET function
Allows for elimination of temperature variation induced offset error (Null field output)
Clears the sensors of residual magnetization resulting from strong external fields
On-chip sensitivity compensation
Low power consumption (140 μA @ 7 Hz )
1 μA (max) power down function
I2C Slave, FAST (≤400 KHz) mode
1.62 V∼3.6 V wide power supply operation supported, 1.8 V I/O compatibility.
Superior Dynamic Range and Accuracy:
±16 G FSR with 16/14 bits operation
0.5 mG/2 mG per LSB resolution in 16/14 bits operation mode
1.5 mG total RMS noise
Enables heading accuracy of 1º
Max output data rate of 800 Hz (12 bits mode)
Ultra Small Low profile package 1.6x1.6x0.6 mm
SET/RESET function
Allows for elimination of temperature variation induced offset error (Null field output)
Clears the sensors of residual magnetization resulting from strong external fields
On-chip sensitivity compensation
Low power consumption (140 μA @ 7 Hz )
1 μA (max) power down function
I2C Slave, FAST (≤400 KHz) mode
1.62 V∼3.6 V wide power supply operation supported, 1.8 V I/O compatibility.
