MikroElektronika ECG 3 Click
- RS Stock No.:
- 184-0149
- Mfr. Part No.:
- MIKROE-3273
- Brand:
- MikroElektronika
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 184-0149
- Mfr. Part No.:
- MIKROE-3273
- Brand:
- MikroElektronika
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MikroElektronika | |
| Kit Name | ECG 3 Click | |
| Select all | ||
|---|---|---|
Brand MikroElektronika | ||
Kit Name ECG 3 Click | ||

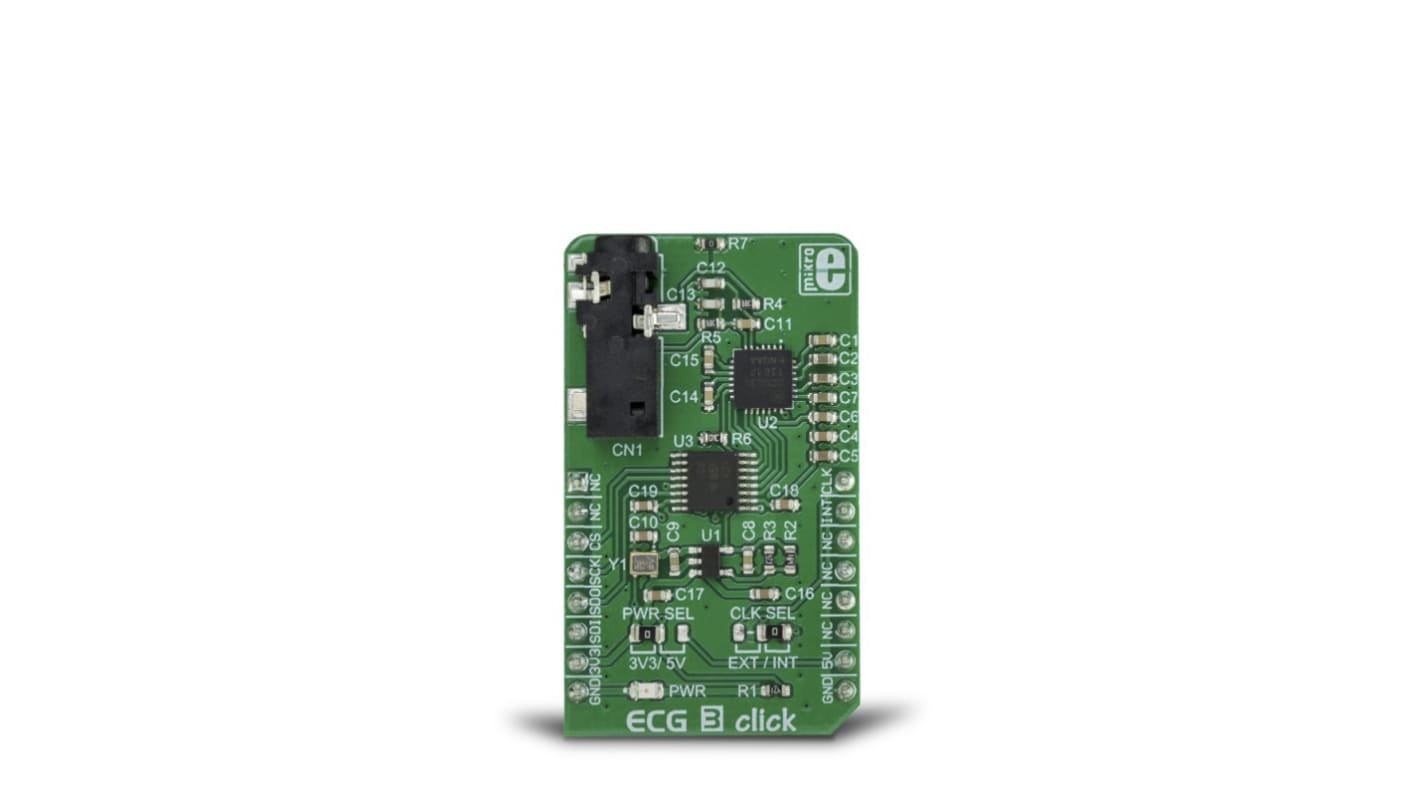

ECG 3 click is a complete solution for ECG and HR application development, utilizing a specialized IC with a clinical-grade analogue front-end (AFE). ECG 3 click uses the MAX30003 IC, an ultra-low power, single-channel bio-sensor, which features a wide range of different options, making it an ideal solution for development of heart rate and ECG monitoring applications, fitness applications, for the ECG bio-authentication, and similar applications related to heart monitoring. ECG 3 click is also equipped with the 3.5mm electrodes connector, making it ready to be used out of the box.ECG 3 click is supported by a mikroSDK compliant library, which includes functions that simplify software development. This Click board™ comes as a fully tested product, ready to be used on a system equipped with the mikroBUS™ socket.
