RS PRO Straight Male 5 way M12 to Unterminated Sensor Actuator Cable, 5m
- RS Stock No.:
- 877-1167
- Distrelec Article No.:
- 304-05-059
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£9.30
(exc. VAT)
£11.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 672 unit(s) ready to ship
- Plus 103 unit(s) ready to ship from another location
- Plus 2,005 unit(s) shipping from 02 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £9.30 |
5 - 9 | £8.82 |
10 - 49 | £8.36 |
50 + | £7.44 |
*price indicative
- RS Stock No.:
- 877-1167
- Distrelec Article No.:
- 304-05-059
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Cross Sectional Area | 0.34 mm² | |
Number of Cores | 5 | |
Sheath Colour | Black | |
Sheath Material | PUR | |
Length | 5m | |
Connector 1 Gender | Male | |
Connector 1 Number of Contacts | 5 | |
Connector 1 | M12 | |
Connector 1 Orientation | Straight | |
Connector 2 | Unterminated | |
Shielded/Unshielded | Unshielded | |
Current Rating | 4 A | |
Voltage Rating | 60 V | |
IP Rating | IP67 | |
Maximum Operating Temperature | +75°C | |
Cable Shape | Multicore | |
Minimum Operating Temperature | -25°C | |
Operating Temperature Range | -25 → +75 °C | |
American Wire Gauge | 22 AWG | |
Outer Diameter | 5.5mm | |
Connector 1 Housing Gender | Male | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 5 | ||
Sheath Colour Black | ||
Sheath Material PUR | ||
Length 5m | ||
Connector 1 Gender Male | ||
Connector 1 Number of Contacts 5 | ||
Connector 1 M12 | ||
Connector 1 Orientation Straight | ||
Connector 2 Unterminated | ||
Shielded/Unshielded Unshielded | ||
Current Rating 4 A | ||
Voltage Rating 60 V | ||
IP Rating IP67 | ||
Maximum Operating Temperature +75°C | ||
Cable Shape Multicore | ||
Minimum Operating Temperature -25°C | ||
Operating Temperature Range -25 → +75 °C | ||
American Wire Gauge 22 AWG | ||
Outer Diameter 5.5mm | ||
Connector 1 Housing Gender Male | ||
- COO (Country of Origin):
- IN

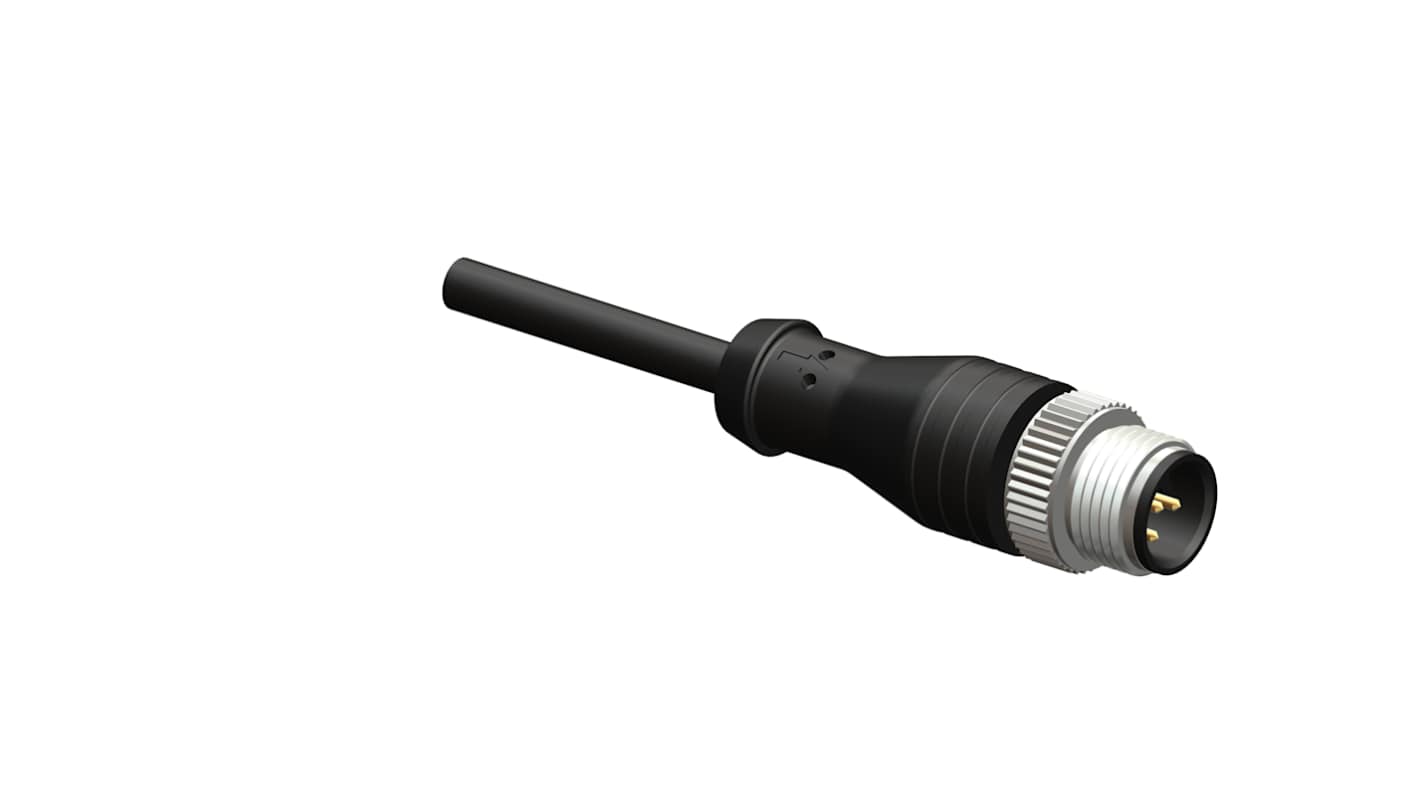

RS PRO Straight M12 to Unterminated Cable Assembly, 5 Cores, 5 m
Need a customisable way to link electronic components? Turn to this M12 cable assembly from RS PRO. As one end of the cable is unterminated and partially stripped, you can easily adapt it to fit the needs of your machinery or equipment.
The cable's terminated male end has a brass coupling nut that's highly conductive, giving you more efficient data transference. The nickel-plated contacts are also rust and corrosion-resistant for a long-lasting connection. Thanks to the polyvinyl chloride (PVC) sheath, the cable is protected against corrosion, weathering and chemical damage, so you won't need to replace your cable often.
As the cable measures 5 m in length, you can connect components across large spaces. This trustworthy cable is a good choice when you need a secure and reliable connection.
The cable's terminated male end has a brass coupling nut that's highly conductive, giving you more efficient data transference. The nickel-plated contacts are also rust and corrosion-resistant for a long-lasting connection. Thanks to the polyvinyl chloride (PVC) sheath, the cable is protected against corrosion, weathering and chemical damage, so you won't need to replace your cable often.
As the cable measures 5 m in length, you can connect components across large spaces. This trustworthy cable is a good choice when you need a secure and reliable connection.
Features and Benefits
- American Wire Gauge size of 22 AWG
- Multicore cable shape
- Connector A is a straight M12 male plug
- Connector B is unterminated
- Five contacts
- Cross-sectional area of 0.34 mm²
- Current rating of 4 A
- Ingress Protection (IP) rating of IP67 (dust-tight and sealed against medium water jets)
- Length of 5 m
- Five cores
- Operating temperature range of -25°C to +75°C
- Outer diameter of 5.5 mm
- Polyvinyl chloride (PVC) outer sheath material
- Black sheath colour
- Polyurethane (PUR) sheath material
- Unshielded
- Voltage rating of 60 V
