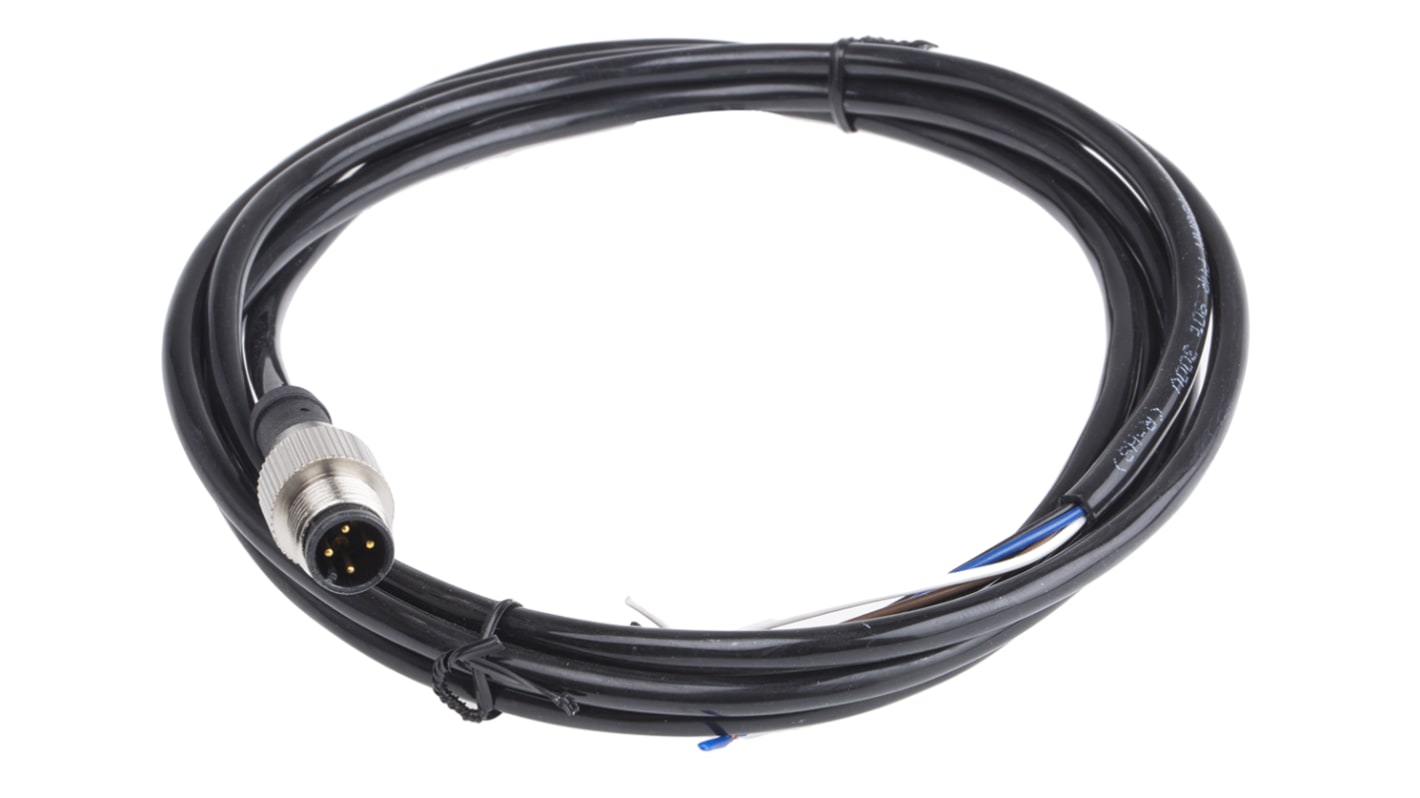

RS PRO Straight Male 4 way M12 to Unterminated Sensor Actuator Cable, 2m
- RS Stock No.:
- 877-1157
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£10.03
(exc. VAT)
£12.04
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 112 unit(s) shipping from 27 October 2025
- Plus 59 unit(s) shipping from 27 October 2025
- Plus 60 unit(s) shipping from 24 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £10.03 |
| 5 - 9 | £9.53 |
| 10 - 49 | £9.04 |
| 50 + | £8.02 |
*price indicative
- RS Stock No.:
- 877-1157
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 0.34 mm² | |
| Number of Cores | 4 | |
| Sheath Colour | Black | |
| Sheath Material | PUR | |
| Length | 2m | |
| Connector 1 Gender | Male | |
| Connector 1 Number of Contacts | 4 | |
| Connector 1 | M12 | |
| Connector 1 Orientation | Straight | |
| Connector 2 | Unterminated | |
| Shielded/Unshielded | Unshielded | |
| Voltage Rating | 250 V | |
| Current Rating | 4 A | |
| IP Rating | IP67 | |
| Cable Shape | Multicore | |
| Maximum Operating Temperature | +75°C | |
| Operating Temperature Range | -25 → +75 °C | |
| Connector 1 Housing Gender | Male | |
| American Wire Gauge | 22 AWG | |
| Outer Diameter | 4.9mm | |
| Minimum Operating Temperature | -25°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 4 | ||
Sheath Colour Black | ||
Sheath Material PUR | ||
Length 2m | ||
Connector 1 Gender Male | ||
Connector 1 Number of Contacts 4 | ||
Connector 1 M12 | ||
Connector 1 Orientation Straight | ||
Connector 2 Unterminated | ||
Shielded/Unshielded Unshielded | ||
Voltage Rating 250 V | ||
Current Rating 4 A | ||
IP Rating IP67 | ||
Cable Shape Multicore | ||
Maximum Operating Temperature +75°C | ||
Operating Temperature Range -25 → +75 °C | ||
Connector 1 Housing Gender Male | ||
American Wire Gauge 22 AWG | ||
Outer Diameter 4.9mm | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- IN
M12 Single Ended Cable Assembly
Brought to you under the trusted RS Brand, this range of M12 connector cable assemblies are commonly used in sensor and automation equipment. Boasting a high degree of environmental protection, they are ideal for industrial use. Fitted with a secure coupling nut, these RS M12 Connector Cable Assemblies are left un-terminated and partially stripped at one end, and are an ideal solution for when secure and reliable data transference is needed.
Features and Benefits:
• Wire is un-terminated and partially stripped
• Insulation Resistance >= 100 MΩ
• Neoprene O-Ring
• Brass nickel plated coupling nut
• Wire is un-terminated and partially stripped
• Insulation Resistance >= 100 MΩ
• Neoprene O-Ring
• Brass nickel plated coupling nut
