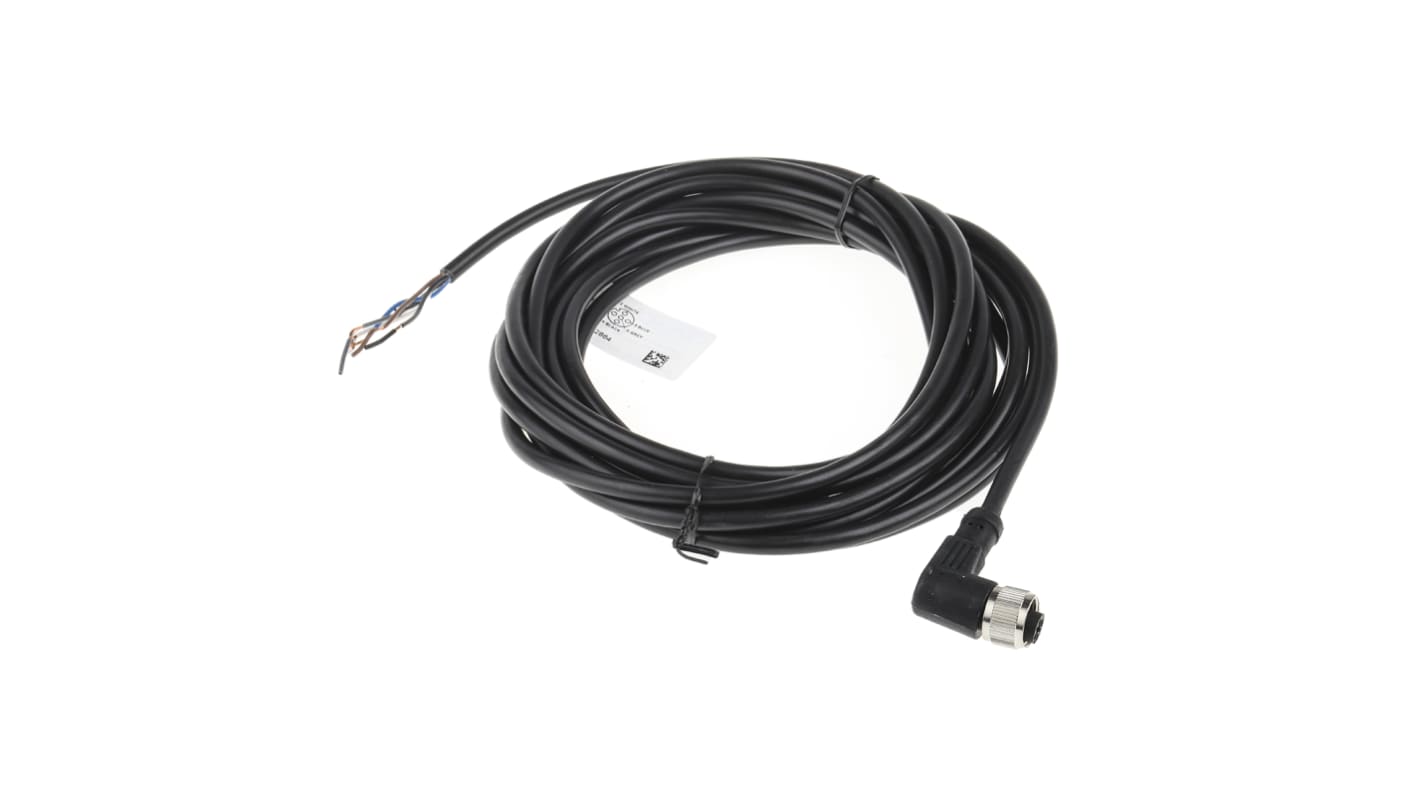

RS PRO Right Angle Female 5 way M12 to Unterminated Sensor Actuator Cable, 5m
- RS Stock No.:
- 877-1044
- Distrelec Article No.:
- 303-95-521
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£14.41
(exc. VAT)
£17.29
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 682 unit(s) ready to ship
- Plus 88 unit(s) ready to ship from another location
- Plus 90 unit(s) shipping from 29 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £14.41 |
5 - 9 | £13.70 |
10 - 49 | £12.97 |
50 + | £11.55 |
*price indicative
- RS Stock No.:
- 877-1044
- Distrelec Article No.:
- 303-95-521
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Cross Sectional Area | 0.34 mm² | |
Number of Cores | 5 | |
Sheath Colour | Black | |
Sheath Material | PUR | |
Length | 5m | |
Connector 1 Gender | Female | |
Connector 1 | M12 | |
Connector 1 Number of Contacts | 5 | |
Connector 1 Orientation | Right Angle | |
Connector 2 | Unterminated | |
Shielded/Unshielded | Unshielded | |
Voltage Rating | 250 V | |
Current Rating | 4 A | |
IP Rating | IP67 | |
Outer Diameter | 5.5mm | |
Maximum Operating Temperature | +75°C | |
American Wire Gauge | 22 AWG | |
Cable Shape | Multicore | |
Operating Temperature Range | -25 → +75 °C | |
Minimum Operating Temperature | -25°C | |
Connector 1 Housing Gender | Female | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Cross Sectional Area 0.34 mm² | ||
Number of Cores 5 | ||
Sheath Colour Black | ||
Sheath Material PUR | ||
Length 5m | ||
Connector 1 Gender Female | ||
Connector 1 M12 | ||
Connector 1 Number of Contacts 5 | ||
Connector 1 Orientation Right Angle | ||
Connector 2 Unterminated | ||
Shielded/Unshielded Unshielded | ||
Voltage Rating 250 V | ||
Current Rating 4 A | ||
IP Rating IP67 | ||
Outer Diameter 5.5mm | ||
Maximum Operating Temperature +75°C | ||
American Wire Gauge 22 AWG | ||
Cable Shape Multicore | ||
Operating Temperature Range -25 → +75 °C | ||
Minimum Operating Temperature -25°C | ||
Connector 1 Housing Gender Female | ||
- COO (Country of Origin):
- IN
M12 Single Ended Cable Assembly
Brought to you under the trusted RS Brand, this range of M12 connector cable assemblies are commonly used in sensor and automation equipment. Boasting a high degree of environmental protection, they are ideal for industrial use. Fitted with a secure coupling nut, these RS M12 Connector Cable Assemblies are left un-terminated and partially stripped at one end, and are an ideal solution for when secure and reliable data transference is needed.
Features and Benefits:
• Wire is un-terminated and partially stripped
• Insulation Resistance >= 100 MΩ
• Neoprene O-Ring
• Brass nickel plated coupling nut
• Wire is un-terminated and partially stripped
• Insulation Resistance >= 100 MΩ
• Neoprene O-Ring
• Brass nickel plated coupling nut
RS PRO Right Angle M12 to Unterminated Cable assembly, 5 Core 5 m Cable
Looking for a secure cable connector to transfer data in industrial environments? This five-core cable assembly from RS PRO is a reliable choice. Commonly used in sensor and automation equipment, it has a right-angled M12 connector to fit into tight spaces.
Its nickel-plated brass coupling secures the connection and resists corrosion, while a neoprene O-ring and polyurethane sheath keep liquids and industrial chemicals out. The cable's other end is unterminated so you can fit the right connector for your application.
This product has been tested for electrostatic discharge safety (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007) and contains minimal hazardous substances (RoHS).
The five-metre cable can be used safely at temperatures ranging from -25°C to +70°C. It has an outer diameter of 5.5 mm, a cross-sectional area of 0.34 mm, and a voltage rating of 60 V. It can be used for applications from process control to commercial electronics.
Its nickel-plated brass coupling secures the connection and resists corrosion, while a neoprene O-ring and polyurethane sheath keep liquids and industrial chemicals out. The cable's other end is unterminated so you can fit the right connector for your application.
This product has been tested for electrostatic discharge safety (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007) and contains minimal hazardous substances (RoHS).
The five-metre cable can be used safely at temperatures ranging from -25°C to +70°C. It has an outer diameter of 5.5 mm, a cross-sectional area of 0.34 mm, and a voltage rating of 60 V. It can be used for applications from process control to commercial electronics.
Features and Benefits
• Right-angled M12 connector fits into tight spaces
• Female to unterminated connectors
• Nickel-plated brass coupling nut makes a secure connection and resists corrosion
• High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge
• Neoprene O-ring keeps out liquids
• Gold-plated contacts resist corrosion
• 5-core cable
• 5 metres long
• Outer diameter of 5.5 mm
• Cross-sectional area of 0.34 mm²
• AWG rating of 22
• Unshielded cable
• Operating temperature -25°C to +75˚C
• Voltage rating of 60 V
• IP67 waterproof rating means it can be submerged in one metre of water for 30 mins
• Amp rating of 4A
• Female to unterminated connectors
• Nickel-plated brass coupling nut makes a secure connection and resists corrosion
• High insulation resistance of at least 100 MΩ protects equipment against electrostatic discharge
• Neoprene O-ring keeps out liquids
• Gold-plated contacts resist corrosion
• 5-core cable
• 5 metres long
• Outer diameter of 5.5 mm
• Cross-sectional area of 0.34 mm²
• AWG rating of 22
• Unshielded cable
• Operating temperature -25°C to +75˚C
• Voltage rating of 60 V
• IP67 waterproof rating means it can be submerged in one metre of water for 30 mins
• Amp rating of 4A
