Phoenix Contact Male 5 way M12 to Sensor Actuator Cable, 5m
- RS Stock No.:
- 863-4538
- Distrelec Article No.:
- 110-33-810
- Mfr. Part No.:
- 1682731
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£21.72
(exc. VAT)
£26.06
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 21 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £21.72 |
*price indicative
- RS Stock No.:
- 863-4538
- Distrelec Article No.:
- 110-33-810
- Mfr. Part No.:
- 1682731
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC | |
| Cross Sectional Area | (Signal Line) 5x 0.34 mm² | |
| Number of Cores | 5 | |
| Sheath Colour | Black/Grey | |
| Sheath Material | PUR | |
| Length | 5m | |
| Connector 1 Gender | Male | |
| Connector 1 Number of Contacts | 5 | |
| Connector 1 | M12 | |
| Coding | A | |
| Current Rating | 4 A | |
| Voltage Rating | 48 V, 60 V | |
| IP Rating | IP65, IP67 | |
| Conductor Material | Bare Cu litz wires | |
| Minimum Bend Radius | 52 mm (Flexible) 26 mm (Fixed) | |
| Oil Resistant | Yes | |
| American Wire Gauge | 22 AWG | |
| Connector 1 Housing Gender | Male | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Cross Sectional Area (Signal Line) 5x 0.34 mm² | ||
Number of Cores 5 | ||
Sheath Colour Black/Grey | ||
Sheath Material PUR | ||
Length 5m | ||
Connector 1 Gender Male | ||
Connector 1 Number of Contacts 5 | ||
Connector 1 M12 | ||
Coding A | ||
Current Rating 4 A | ||
Voltage Rating 48 V, 60 V | ||
IP Rating IP65, IP67 | ||
Conductor Material Bare Cu litz wires | ||
Minimum Bend Radius 52 mm (Flexible) 26 mm (Fixed) | ||
Oil Resistant Yes | ||
American Wire Gauge 22 AWG | ||
Connector 1 Housing Gender Male | ||
- COO (Country of Origin):
- PL

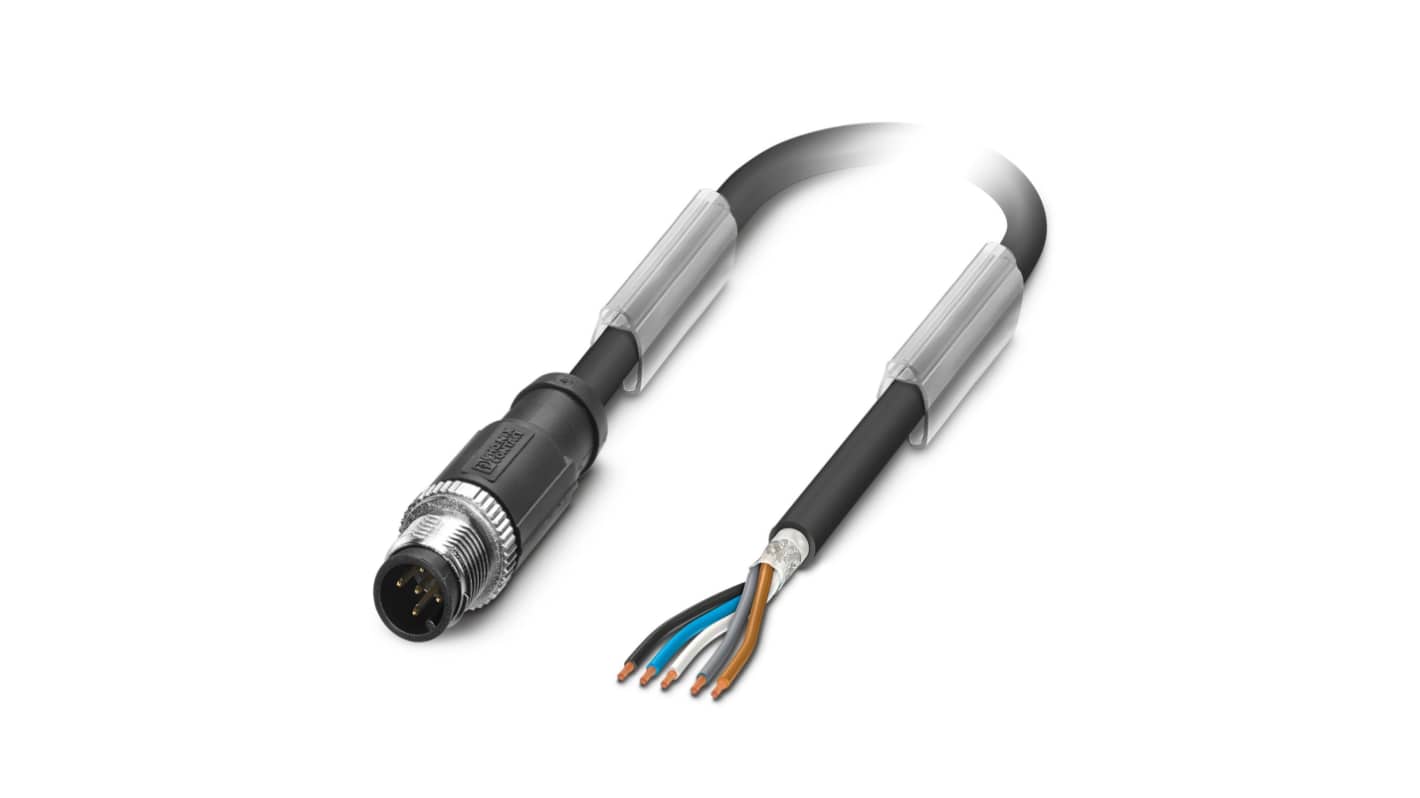

Sensor/actuator cable, 5-position, PUR halogen-free, black-gray RAL 7021, shielded, Plug straight M12, coding: A, on free cable end, cable length: 5 m
Easy and safe: 100% electrically tested plug-in components
Our standard: robust halogen-free PUR cable
Reliable signal transmission – 360° shielding in environments with electromagnetic interference
