Phoenix Contact Male 3 way M12 to Sensor Actuator Cable, 10m
- RS Stock No.:
- 863-4080
- Mfr. Part No.:
- 1442586
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£19.07
(exc. VAT)
£22.88
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,999 unit(s) shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £19.07 |
*price indicative
- RS Stock No.:
- 863-4080
- Mfr. Part No.:
- 1442586
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Series | SAC | |
| Number of Cores | 3 | |
| Cross Sectional Area | (Signal Line) 3x 0.34 mm² | |
| Sheath Material | PUR | |
| Sheath Colour | Black/Grey | |
| Length | 10m | |
| Connector 1 Gender | Male | |
| Connector 1 Number of Contacts | 3 | |
| Connector 1 | M12 | |
| Coding | A | |
| Voltage Rating | 250 V | |
| Current Rating | 4 A | |
| IP Rating | IP65, IP67, IP68, IP69K | |
| Oil Resistant | Yes | |
| Connector 1 Housing Gender | Male | |
| Minimum Bend Radius | 44 mm (Flexible) 22 mm (Fixed) | |
| Conductor Material | Bare Cu litz wires | |
| American Wire Gauge | 22 AWG | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Series SAC | ||
Number of Cores 3 | ||
Cross Sectional Area (Signal Line) 3x 0.34 mm² | ||
Sheath Material PUR | ||
Sheath Colour Black/Grey | ||
Length 10m | ||
Connector 1 Gender Male | ||
Connector 1 Number of Contacts 3 | ||
Connector 1 M12 | ||
Coding A | ||
Voltage Rating 250 V | ||
Current Rating 4 A | ||
IP Rating IP65, IP67, IP68, IP69K | ||
Oil Resistant Yes | ||
Connector 1 Housing Gender Male | ||
Minimum Bend Radius 44 mm (Flexible) 22 mm (Fixed) | ||
Conductor Material Bare Cu litz wires | ||
American Wire Gauge 22 AWG | ||
- COO (Country of Origin):
- PL

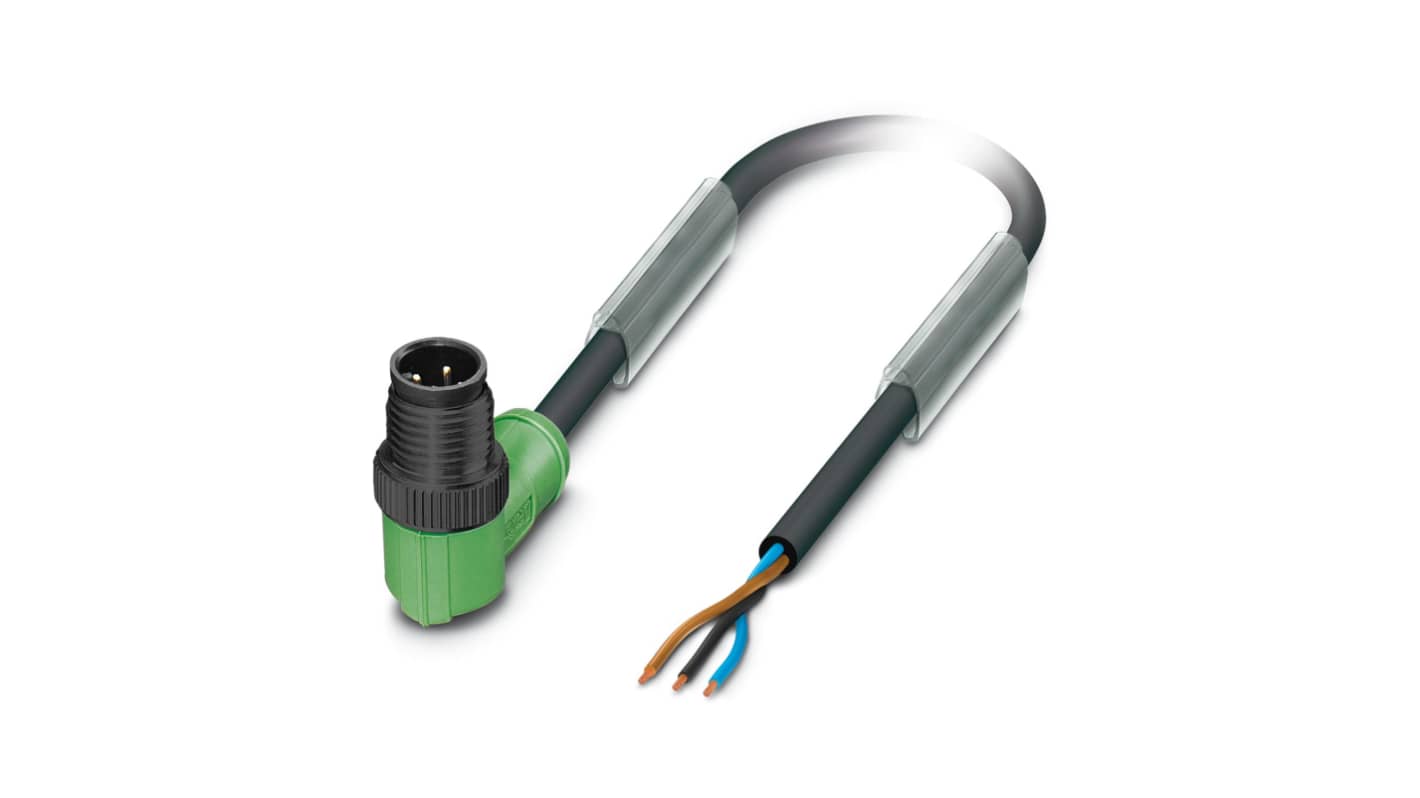

Sensor/actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, Plug angled M12, coding: A, on free cable end, cable length: 10 m, with plastic knurl
Save weight – our connectors with light plastic knurl
Easy and safe: 100% electrically tested plug-in components
Our standard: robust halogen-free PUR cable
